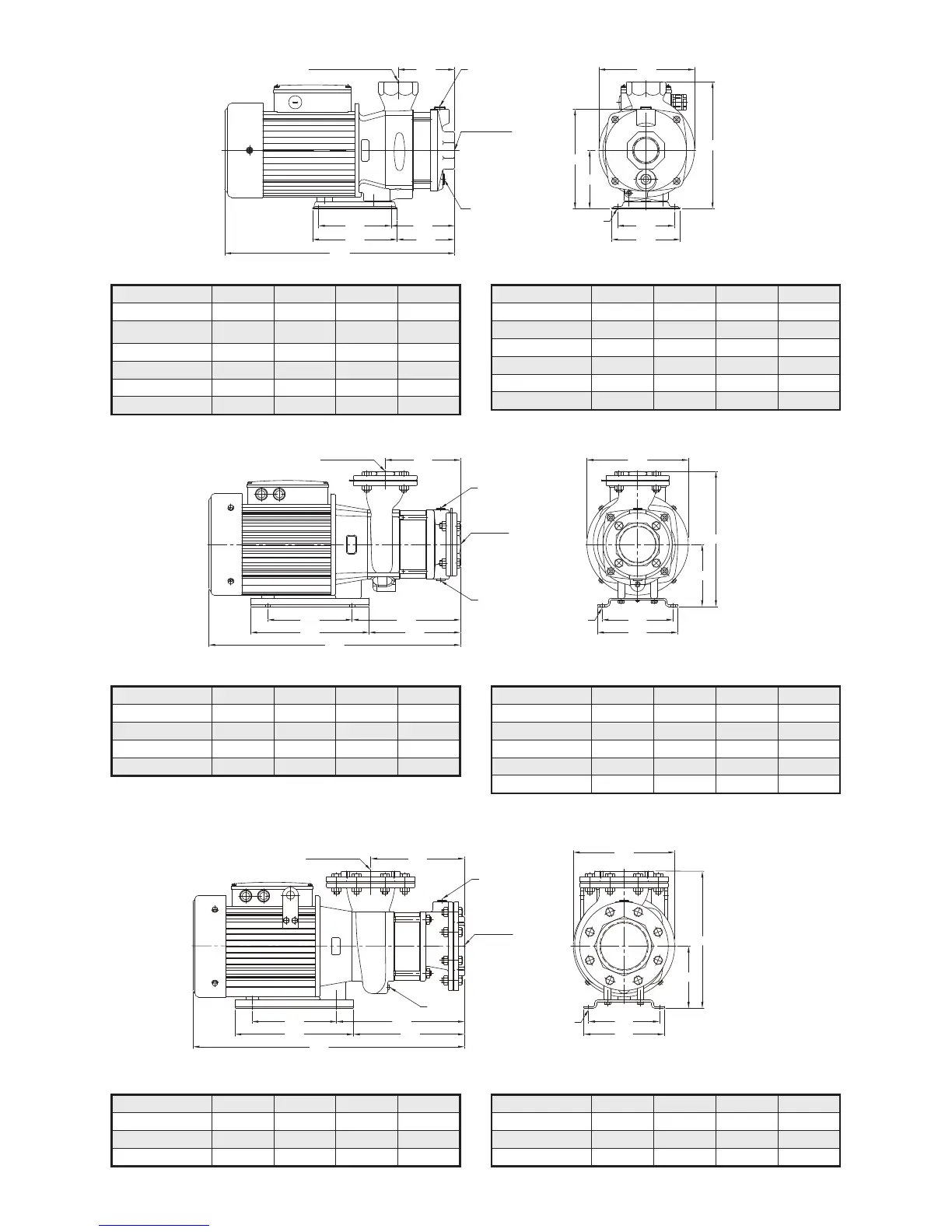

Walrus TPH Series - Page 7

~ 7 ~
TPH 8/12
TPH 8T
Model A B C D
TPH 8T 2 K 375 77 88 75
TPH 8T 2.5K 407 109 120 107
TPH 8T 3 K 407 109 120 107
TPH 8T 4 K 435 109 120 107
TPH 8T 5 K 473 143 154 141
TPH 8T 6 K 473 143 154 141
TPH 12T
Model A B C D
TPH 12T 1K 335 77 88 75
TPH 12T 2K 375 77 88 75
TPH 12T 3K 435 109 120 107
TPH 12T 4K 435 109 120 107
TPH 12T 5K 473 143 154 141
TPH 12T 6K 473 143 154 141
B
C
A
D
138
160
182
130
108
PS

/

"
111
PS

/

"
189
Inlet Rp 1½"
Outlet Rp 1½"
( Or Rp 2 ")
( Or Rp 2 ")
4-Ø8.5
241
TPH 25T
TPH 25T 50Hz
Model A B C D
TPH 25T 2KF 596 216.5 256.5 180
TPH 25T 3KF 656 276.5 316.5 240
TPH 25T 4KF 656 276.5 316.5 240
TPH 25T 5KF 766 336.5 376.5 300
TPH 25T 60Hz
Model A B C D
TPH 25T 2KF 536 156.5 196.5 120
TPH 25T 3KF 596 216.5 256.5 180
TPH 25T 4KF 596 216.5 256.5 180
TPH 25T 5KF 706 276.5 316.5 240
TPH 25T 6KF 706 276.5 316.5 240
280
A
B
C200 168
PT ½"
PT ½"
D 245
190
Inlet Rp 3"
Outlet Rp 3"
147
320
4-Ø12
TPH 50T
TPH 50T 50Hz
Model A B C D
TPH 50T 2KF 642.5 263 303 222
TPH 50T 3KF 752.5 323 363 282
TPH 50T 4KF 802.5 323 363 282
TPH 50T 60Hz
Model A B C D
TPH 50T2.5KF 582.5 203 243 162
TPH 50T 4KF 692.5 263 303 222
TPH 50T 5KF 742.5 263 303 222
280
A
B
C200
PT ½"
PT ¼"
Inlet Rp 4"
D
Outlet Rp 4"
168
245
190
147
325
4-Ø12
