ROUTING & CONNECTIONS
The METAVERSE can be run in either Mono or Stereo using 2-4
guitar cables. The optimum connection for this pedal will be in
the effects loop of a guitar amplier. If your amp doesn’t have
an effects loop don’t worry - it still sounds awesome through the
front input of an amplier.
POWER
Connect a 9V DC Center Negative Power supply suitable for
guitar pedals only, Current draw is approx 130mA.
DO NOT EXCEED 9V - This pedal cannot be run at 18V.
MONO

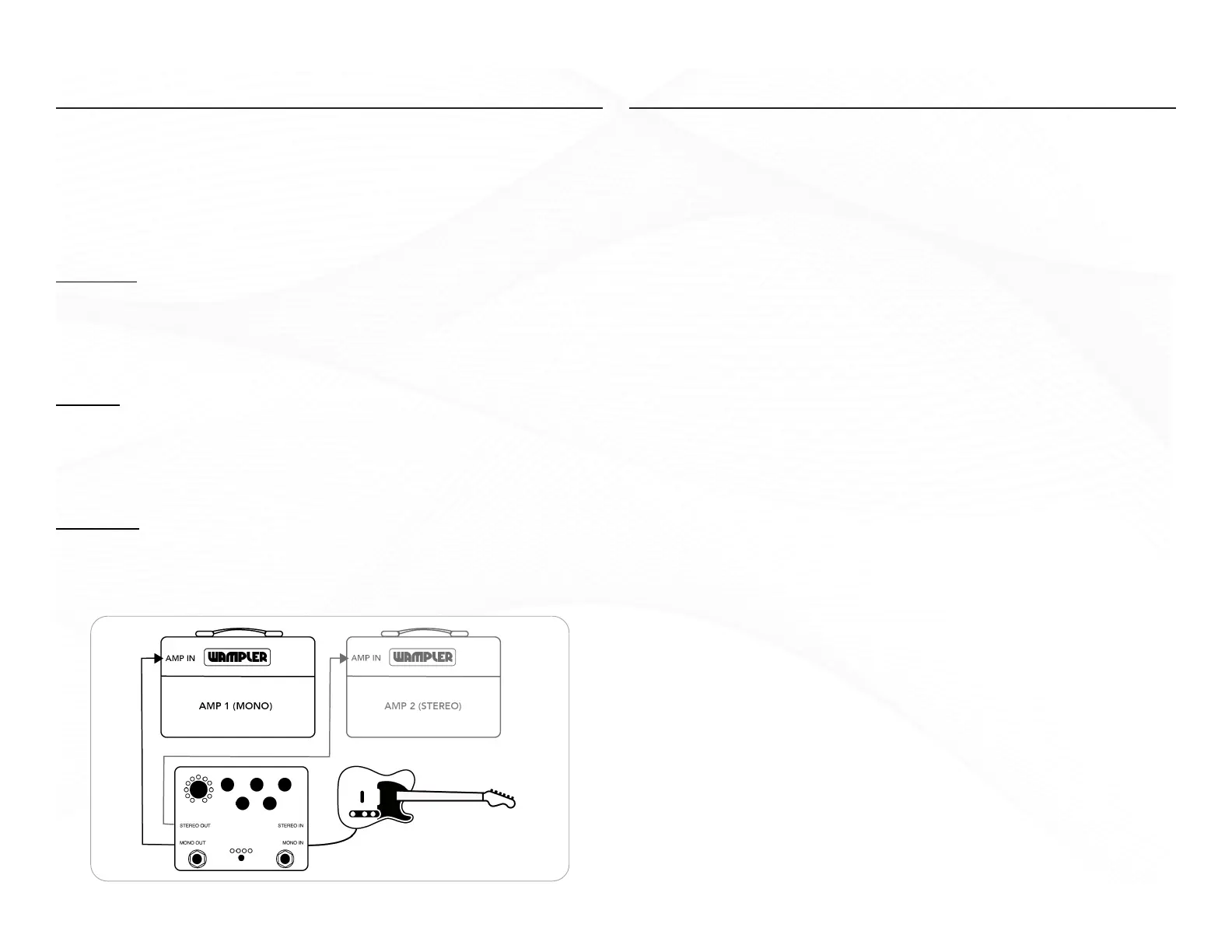

To connect to an effects loop or to a single amplier input, run
one cable into the Mono In connector and one out of the Mono
Out connector.
STEREO
To connect to an additional amplier, run a cable out of the
Stereo Out connector. To connect a Stereo Input additionally
insert a cable into the Stereo In connector.
EXPRESSION PEDAL
An external expression pedal can be assigned to control ANY of
the Rotary Controls on the METAVERSE. This information is also
stored within a Preset.
To congure the expression pedal:.
1. Press and hold the Bypass Switch and Tap Tempo Switch
simultaneously for one second, and release when the Tap
Tempo LED lights red.
2. Adjust each control for the ‘minimum/heel’ position of the
expression pedal.
3. Press and hold the Bypass Switch and Tap Tempo Switch
simultaneously for one second, and release when the Tap
Tempo LED lights green.
4. Adjust each control for the ‘maximum/toe’ position of the
expression pedal.
5. Press and hold the Bypass Switch and Tap Tempo Switch
simultaneously for one second, and release when the Tap
Tempo LED blinks blue.
Notes:
• it is not necessary to adjust the expression pedal during setup
• by default, the expression pedal will control the mix parameter
• controls that were not adjusted during this process will not be
affected by the expression pedal.
• expression pedal congurations may be saved to a Preset,
allowing for different expression pedal functions per Preset.
TYPE OF EXPRESSION PEDAL
TRS, wired in the ‘regular’ way:
T = Expression Output, R = ‘Live’ (5V), S = Ground.
