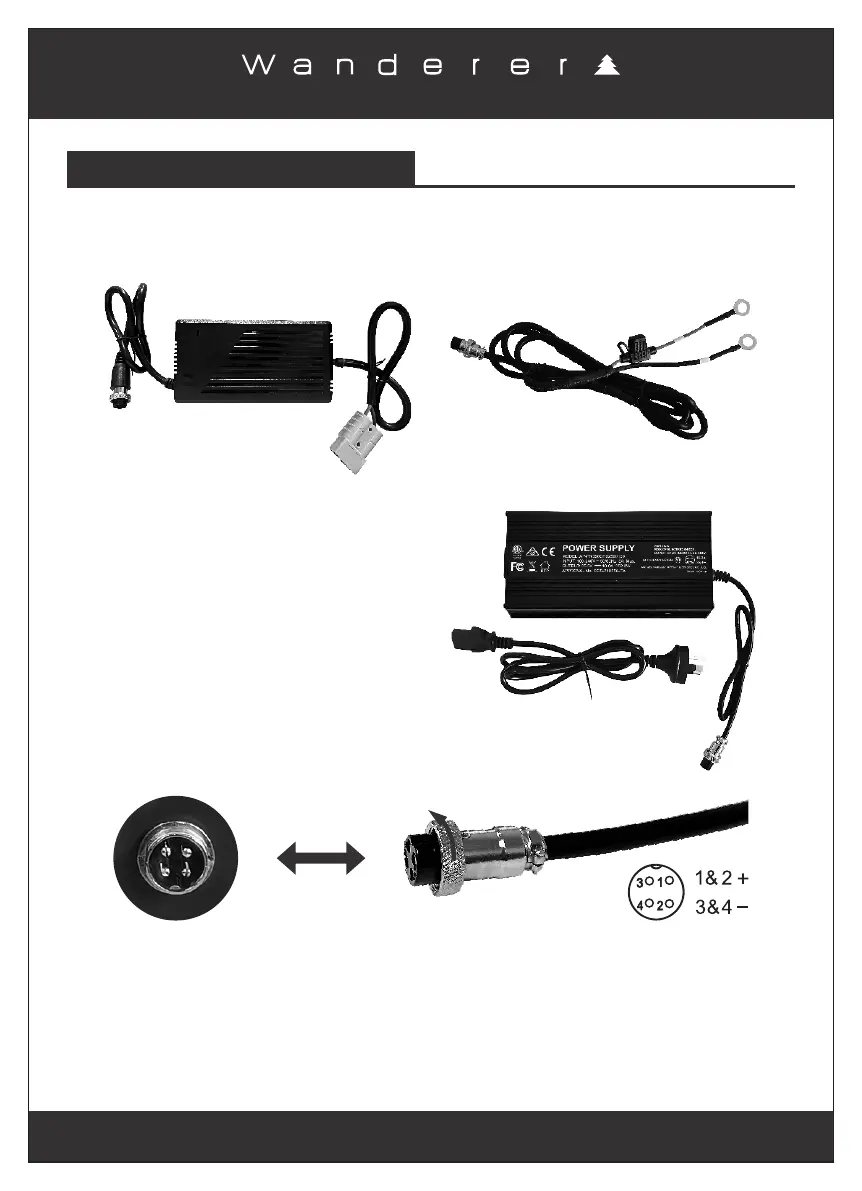

POWER SUPPLY CONNECTION
This Portable Air Conditioner runs from a 24 volt power supply only. The air conditioner will draw
8 Amp working current when it is operating fully.
There are three different options on how to power your air conditioner:
Each power adaptor has a plug that plugs
into the power socket on the of the air
conditioner.
Insert the plug into the power socket.
Then rotate it clockwise until it is tight.
The 24V DC 2m power cable is fitted with
an inline 15A blade type fuse. Always
check to see if it is in good condition.
Replace with the same rated fuse only.
Connect either: the 50A heavy duty connector of the booster to the 12V DC supply or
the eyelet terminals of the power cable directly to the 12V battery orConnect either:
the 240V AC plug of the power supply to the 240V AC mains supplyConnect either:
The red power indicator on the touch switch control panel will light up indicating that the air
conditioner is in STANDBY mode.
12V DC to 24V DC Booster with
50A Heavy Duty Connector
24V DC 2m Power Cable with
Eyelet Terminals
240V AC Power Supply
