Instruction Handbook KL
Chapter 9
BA KL V11 en 10/2014 page 9-29
9.7.12 Rotary lip seal – cartridge KL 30 - KL 100
Dismounting:
1. Remove joint. ( chapter 9.6)
2. Remove snap ring 1017.
3. Pull off the complete sealing cartridge 1113 out of drive shaft ( spare part list).
4. Clean drive shaft 1000, check on firm seat of snap ring 1017 (the back one)
if necessary exchange it.
Mounting:
1. Grease drive shaft easily and push on new sealing cartridge.
Groove of shaft sleeve 1024 must engage in dowel pin 1021.
2. Insert new O-ring 1019 in cartridge.
3. Reassemble the pump in the reverse order.
Possible damage
 Attend to the adjustment of the rings.
 If there is a flushing ring into the shaft seal, it will be behind second shaft sealing ring.
(Seen from drive side)

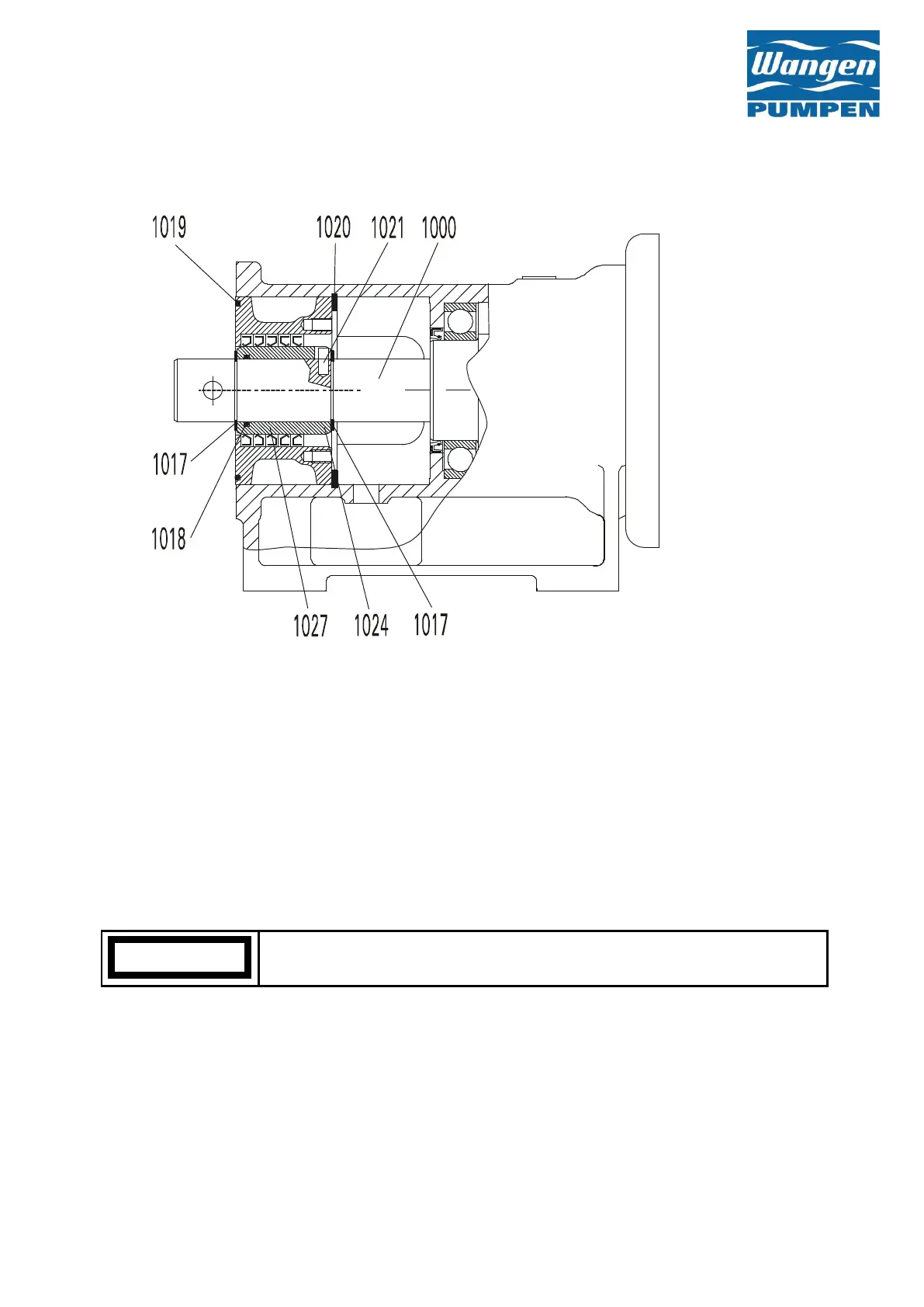

Fig. 9-26
ATTENTION
