Chapter: Maintenance and repair
Pump set (Rotor/ Stator) - Assembly/Disassembly
4-4

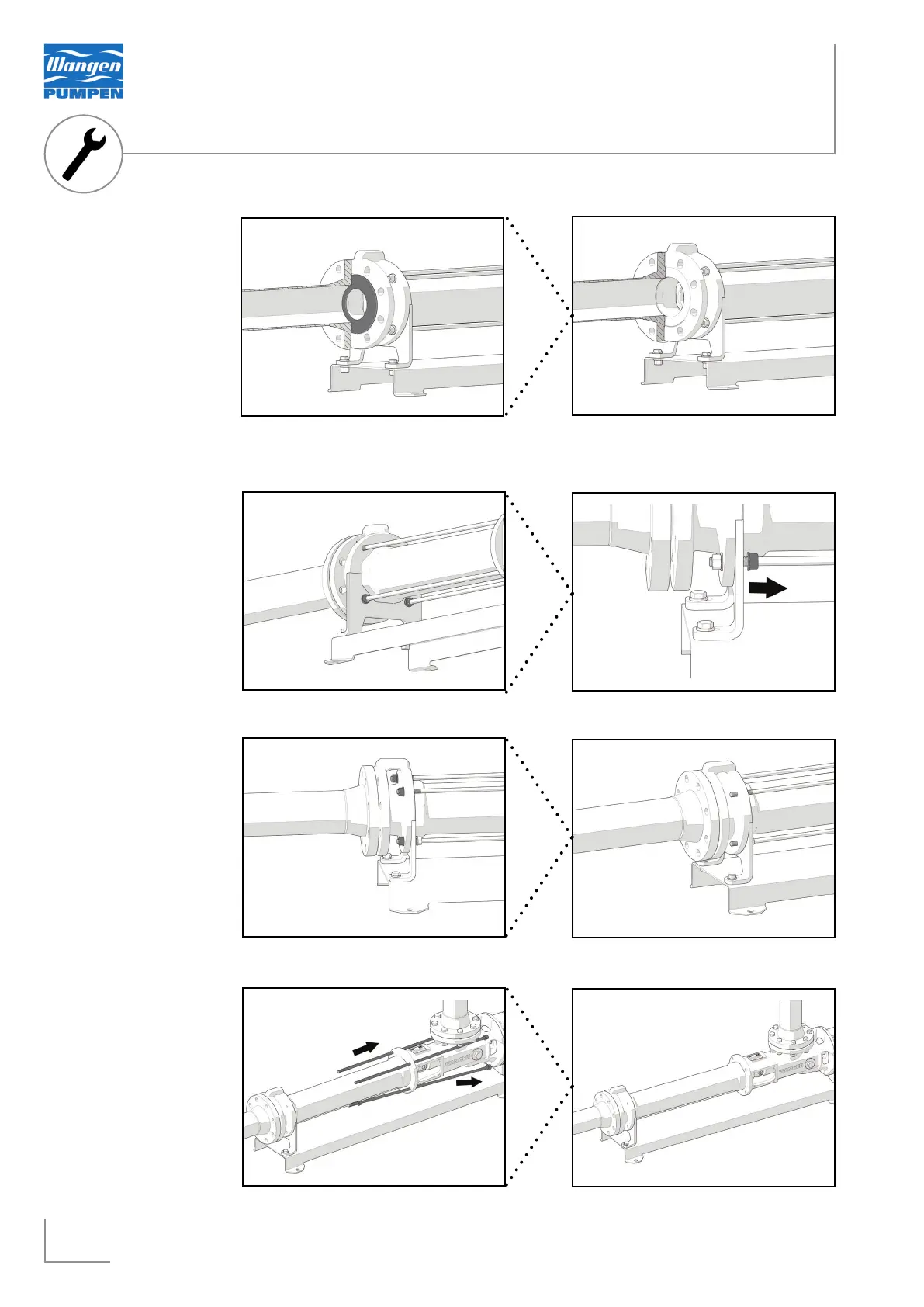

10. Remove the at seal
11. Remove the screw connection(1043)(1042) between draw bar (1041) and
discharge nozzle leveling (1194).
12. Move the screw connection (1079)(1119) at discharge nozzle leveling (1078)
13. Move the draw bar (1041)
