Warn 102600 - Parts List and Specifications; Parts Identification; Fastener Torque Specifications

©2019 Warn Industries, Inc.WARN® and the WARN logo are trademarks of Warn Industries Inc. 3 103507A0

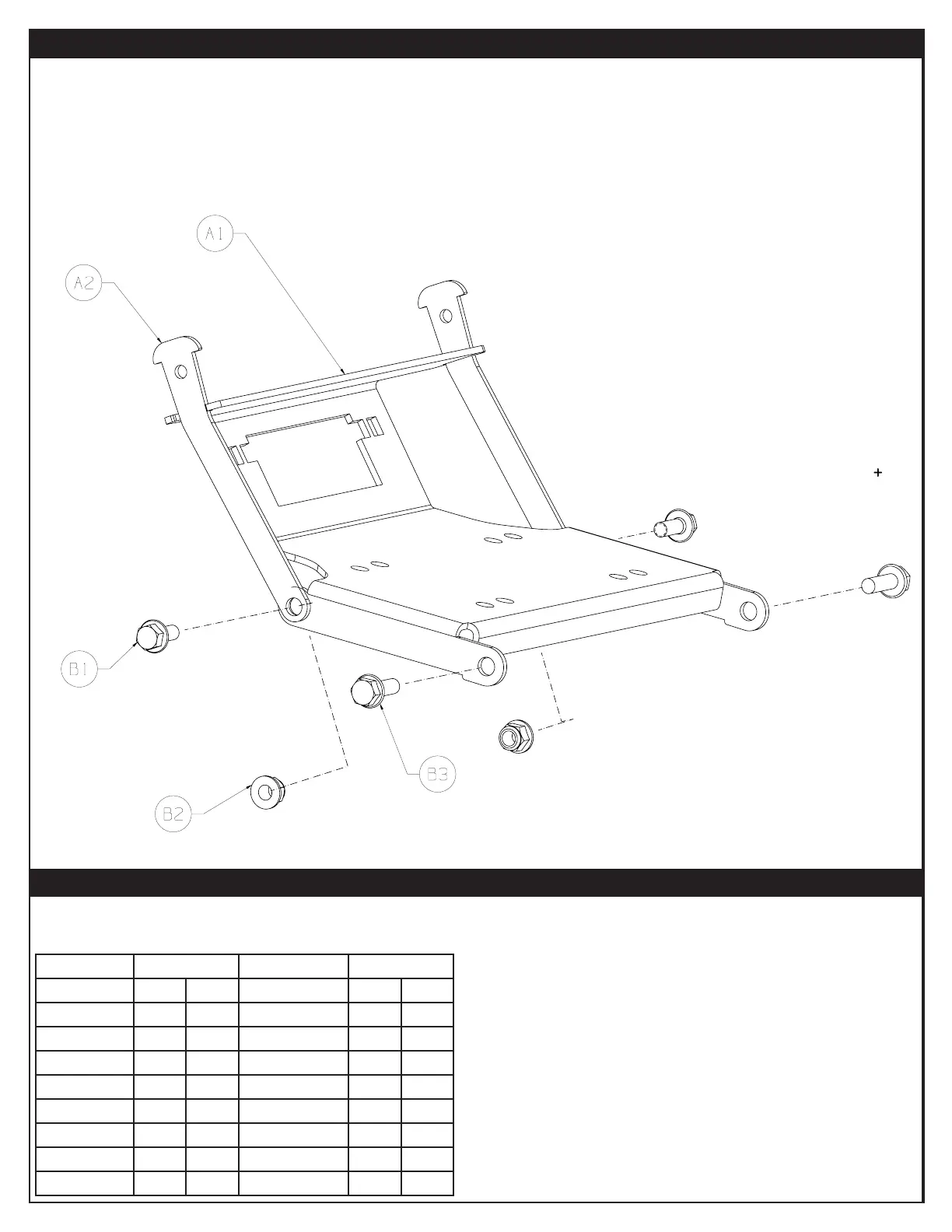

PARTS LIST
TORQUE SPECIFICATIONS
Please use the recommended torque specications when assembling this product unless otherwise specied in the instructions.
FASTENER SIZE FASTENER TORQUE FASTENER SIZE FASTENER TORQUE
lb-ft (N.m) M4 (2) 3
1/4" 8 (11) M5 (4.5) 6
5/16" 17 (23) M6 (7.5) 10
3/8" 30 (40) M8 (18) 25
7/16” 48 (66) M10 (37) 50
1/2" 74 (100)
9/16” 106 (144)
5/8" 148 (200)
3/4” 269 (364)
ITEM PART NUMBER DESCRIPTION QTY
A1 102595 WINCH MOUNTING PLATE 1
A2 102596 WINCH MOUNT STRAP 2
B1 99248 M8 X 20MM HEX HEAD BOLT 2
B2 71588 M8 LOCK NUT 2
B3 65970 M8 X 25MM HEX BOLT 2
