Warn 84354 - Pre-trim Front Skid Plate; Reinstall Plastic Skid Plate; Install Plow Mounting Tabs

WARN INDUSTRIES PAGE 6 80551A2
©2009 Warn Industries, Inc.
WARN® and the WARN logo are trademarks of Warn Industries Inc.
11. There is some pre-trimming to your front skid
plate required before installation. See Figure
7. This can be achieved with a utility knife or
a heavy pair of scissors. Mark 3 1/2 inches up
from the bottom end of the skid plate and 1 1/2
inches down on the side and cut that material
away.
12. Reinstall your plastic using the factory fasteners.
Make sure that the threaded u-clips have been
installed lower part of the plow mount over the
mounting holes. See instruction exploded view
for location on page 3. Figure 8 shows plastic
reinstalled.
13. Finally install the plow mounting tabs to your
Plow Tube Assembly with the jogged ends to-
ward the center (narrowest conguration pos-
sible) shown in Figure 9. Install these loosely
on the plow with the fasteners provided with the
plow. Tighten the fasteners after the plow is as-
sembled and installed in the mount according to
the plow assembly instructions.

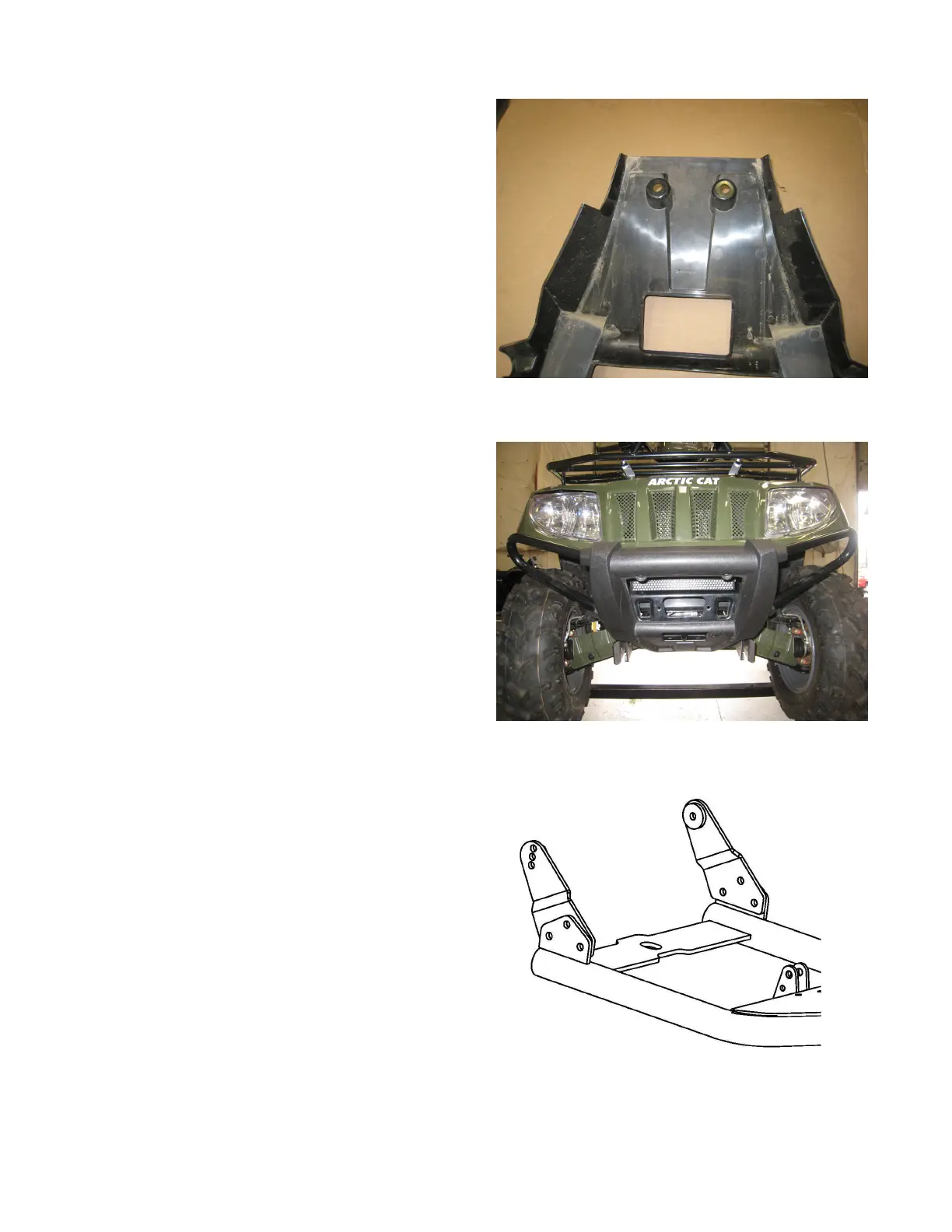

Figure 7
Figure 8
Figure 9
