Warn 89613 - Parts, Tools, and Specifications; Parts List; Tools Required; Torque Specifications

©2012 Warn Industries, Inc.WARN® and the WARN logo are trademarks of Warn Industries Inc. 3 89614A1
PARTS LIST
Reference Qty Description
A1 4 Carriage Bolt M8x1.25x25 GR 8.8 ZN
A2 6 Hex Flange Nut w/ insert M8-1.25
A3 2 Capscrew Hex Flange HD M8x1.25x30, ZN
TOOLS REQUIRED
- Socket Wrench Set (10mm-17mm)*
- Wrench Set (10mm-17mm)*
- Short Extension
- Flexible Extension
- Cut off wheel
- 1 1/4” Hole Saw
*not all sizes will be needed
TORQUE SPECIFICATIONS
Please use the recommended torque specications when assembling this product unless otherwise specied in the
instructions.
1/4 6mm 8 lb. ft. (10.8 N-m)
5/16 8mm 17 lb. ft. (23.0 N-m)
3/8 10mm 30 lb. ft. (40.7 N-m)
7/16 11mm 50 lb. ft. (67.8 N-m)
1/2 13mm 75 lb. ft. (101.7 N-m)

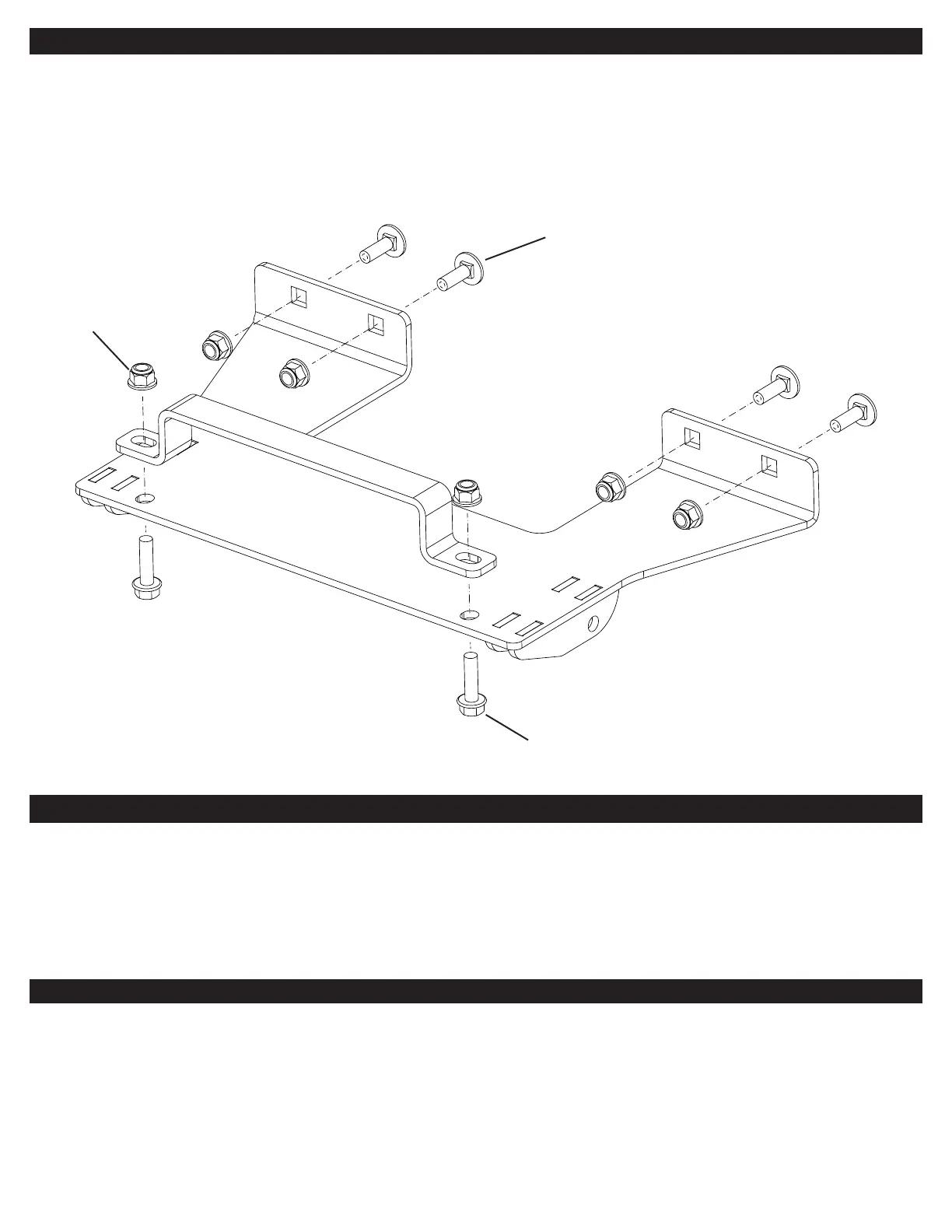

A1
A3
A2
