Warn 93901 - Parts List; Torque Specifications

©2014 Warn Industries, Inc.WARN® and the WARN logo are trademarks of Warn Industries Inc. 3 93900A0

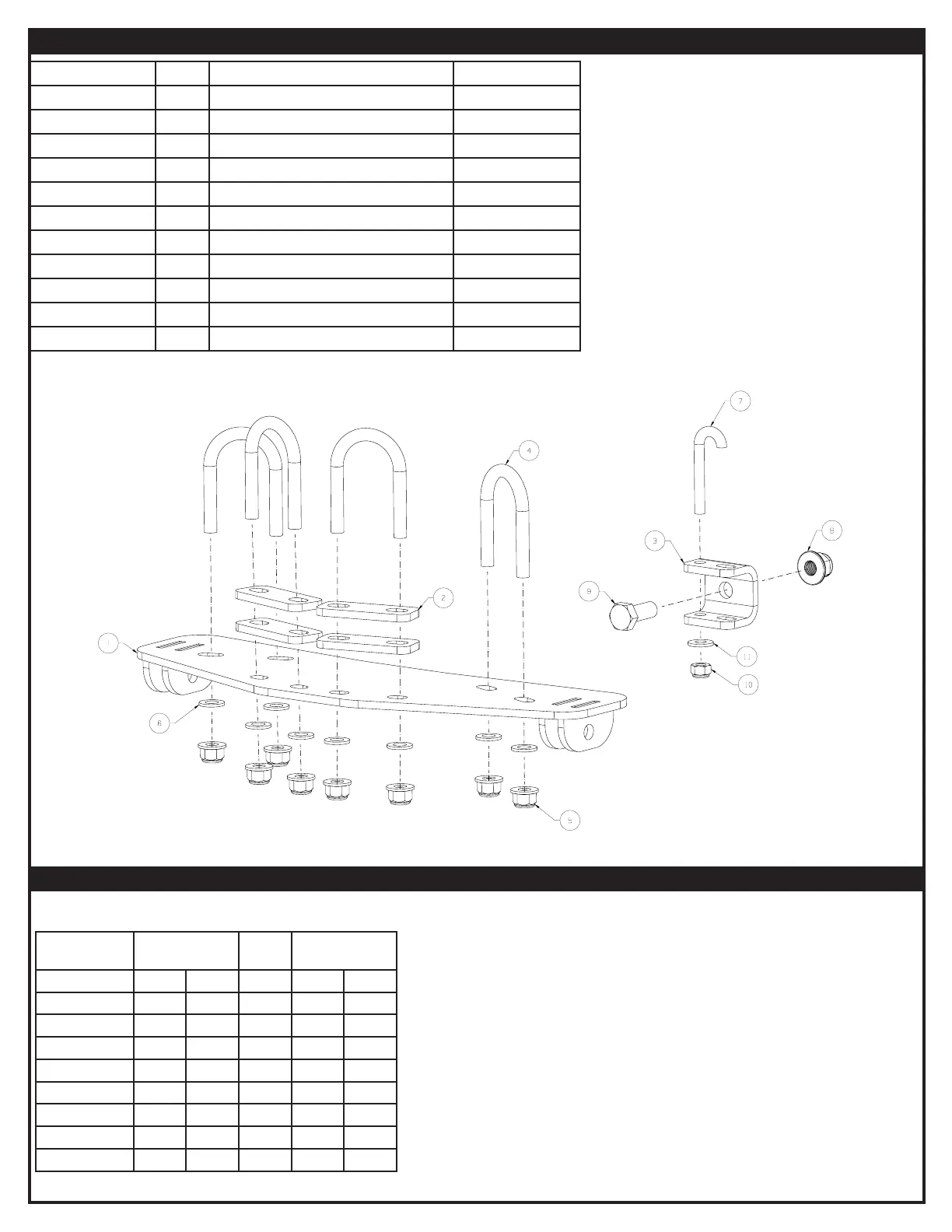

PARTS LIST
Please use the recommended torque specications when assembling this product unless otherwise specied in the instructions.
FASTENER SIZE FASTENER TORQUE FASTENER
SIZE
FASTENER TORQUE
lb-ft (N.m) lb-ft (N.m)
1/4" 8 (11) M4 (2) 3
5/16" 17 (23) M5 (4.5) 6
3/8" 30 (40) M6 (7.5) 10
7/16” 48 (66) M8 (18) 25
1/2" 74 (100) M10 (37) 50
9/16” 106 (144)
5/8" 148 (200)
3/4” 269 (364)
TORQUE SPECIFICATIONS
ITEM QTY NAME PN
1 1 Center Plow Mount Plate 93899
2 4 Spacer 94325
3 1 J-Bolt Bracket 62845
4 4 M8 - 1.25 35mm x 60mm 86678
5 8 M8 x 1.25 Hex Flange Nut 79146
6 8 M8 Flat Washer 1324
7 1 J-Bolt 35391
8 1 M10 x 1.5 Hex Lock Nut 91162
9 1 M10 - 1.50 x 25 Hex Head Capscrew 25340
10 1 1/4 - 20 Hex Lock Nut 6725
11 1 1/4 Washer 1320
