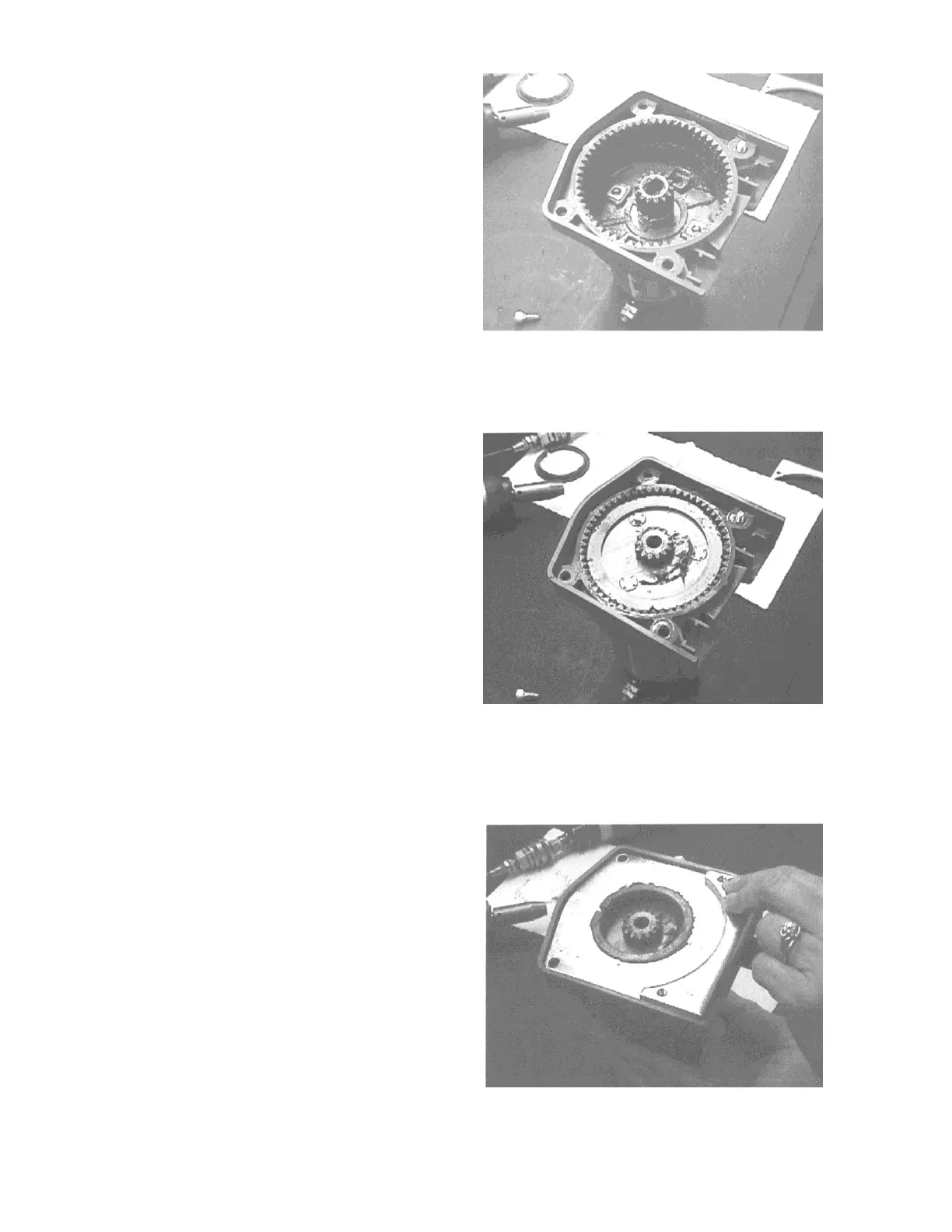

MOTOR HOUSING REASSEMBLY:
Replace sun gear .
Replace first stage carrier assembly. If
winch had a thrust washer it may be re-
installed.
If winch had a brake, place the thrust
washer in first with brake resting on it.
Replace mounting nuts flat side out. Drum
plate is placed on top of gear assembly
with drum bushing rounded side out, being
placed with opening on either side of tab.
Cable protector is placed into position
screwing down with the ¼-20 x 1/2
screws. Snug is good, do not over-tighten
due to damaging the material.
