WARRIOR W0700R - High-Low Fence Diagram and Part List

319
313
324
321
325
311
312
323 314
305
310
306
327
317
304
309
308
328
307
303
301
302
318
326

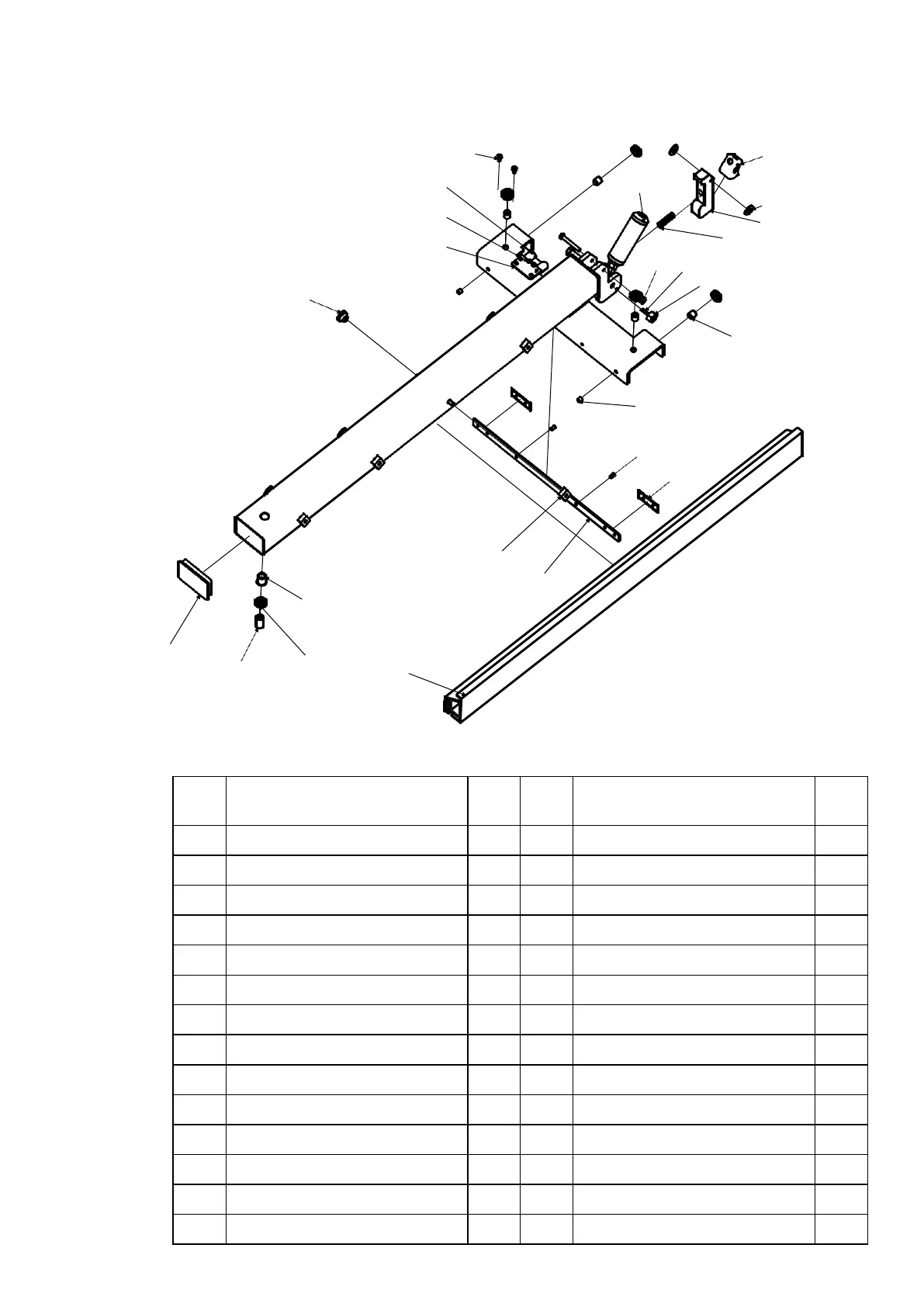

High-Low Fence Diagram and Part List
ITEM
DESCRIPTION
Q'TY
ITEM
DESCRIPTION
Q'TY
301
Square
1
315
Hex Bolt M10*50
1
302
L-Asjusting Wire
1
316
Hex Bolt M6*45
1
303
Pull Nut
1
317
S-Asjusting Wire
4
304
Set Screw M8*8
2
318
Compound Nut
5
305
Lock Nut M6
1
319
Button Head Screw M5*10
2
306
Lock Nut M10
1
320
Bracket Assembly
1
307
Transverse Plate 2
1
321
Lock Handle
1
308
Square Plug
2
322
Nut M10
2
309
Rivet
2
323
Fixed Frame
1
310
Tension Pin 4*32
1
324
Ruler
1
311
Spacer
2
325
Self Tapping Thread 3.9*10
2
312
Locking Block
1
326
Backboard
1
313
Cam Block
1
327
Combination Nut M6
4
314
Compression Spring
1
328
Locking E-Integration
4
