WARRIOR W0700R - T-Glide Fence Diagram and Part List

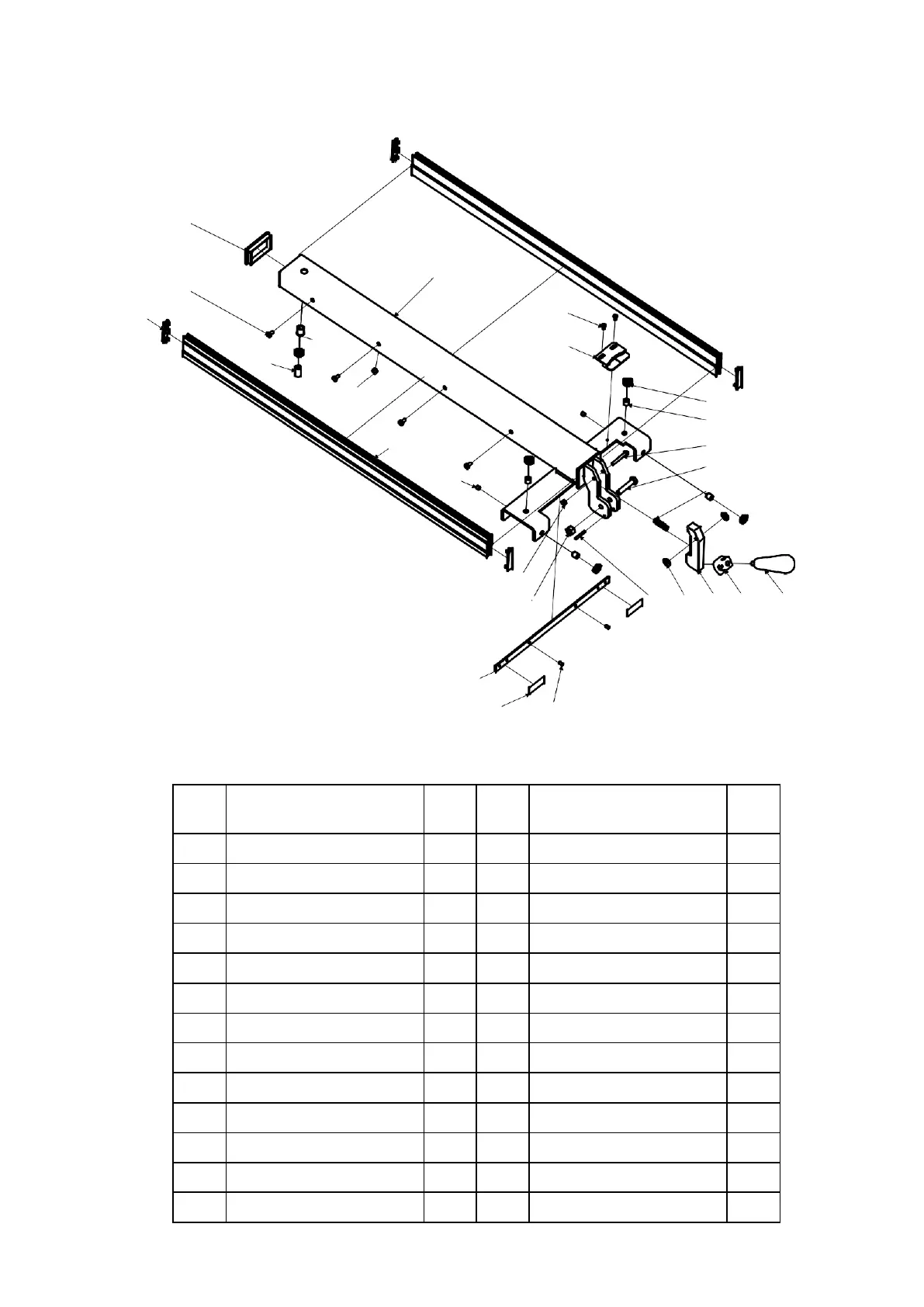

T-Glide Fence Diagram and Part List
303
312 313
ITEM
DESCRIPTION
Q'TY
ITEM
DESCRIPTION
Q'TY
301
Square
1
314
Tension Pin 4*32
1
302
Hex Bolt M6*12
8
315
Spacer
2
303
Backing Plate Plug
4
316
Locking Block
1
304
L-Asjusting Wire
1
317
Cam Block
1
305
Pull Nut
1
318
Locking Handle M10
1
306
Nut M6
8
319
Compression Spring
1
307
Backing Board
2
320
Hex Bolt M10*50
1
308
Set Screw M8*8
2
321
Hex Bolt M6*45
1
309
Lock Nut M6
1
322
S-Asjusting Wire
4
310
Lock Nut M10
1
323
Compound Nut
5
311
Transverse Plate 2
1
324
Ruler Pointer
1
312
Square Plug
2
325
Button Head Screw M5*10
2
313
Rivet
2
326
Bracket Assembly
1
301
326
302
325
304
305
324
306
307
308
323
322
321
320
319
309
310
314 315
316 317 318
311
