Washtech 3 Series - Components; Location and Access

Components
WARNING
All service/repair work must be carried out by qualified personnel only.

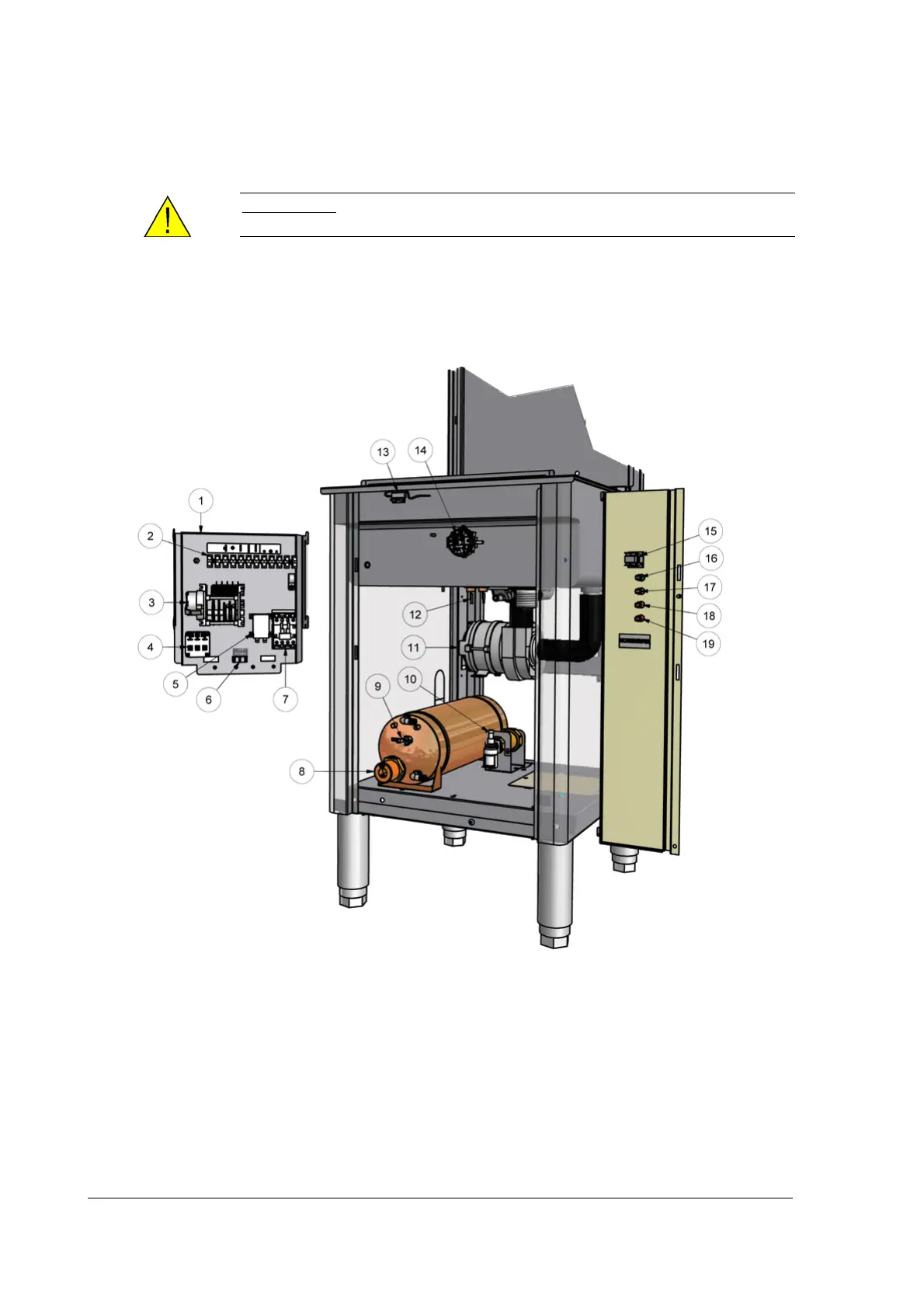

Location and Access
1. Wiring Tray
2. Power/Chemical Terminal
3. Timer
4. Rinse Thermostat
5. Door Switch Relay
6. Test Switch
7. Fill/Heat Contactor
8. Rinse Element
9. Over Temperature Thermostats
10. Fill/Rinse Solenoid with DCV
11. Wash Pump
12. Wash Element
13. Door Switch
14. Pressure Switch
15. Power Switch
16. Cycle Light
17. Rinse Ready Light
18. Wash Ready Light
19. Power Light
Service Manual M1-3 (W) 13 Revision 1B
