Washtech 3 Series - Door Link Assembly

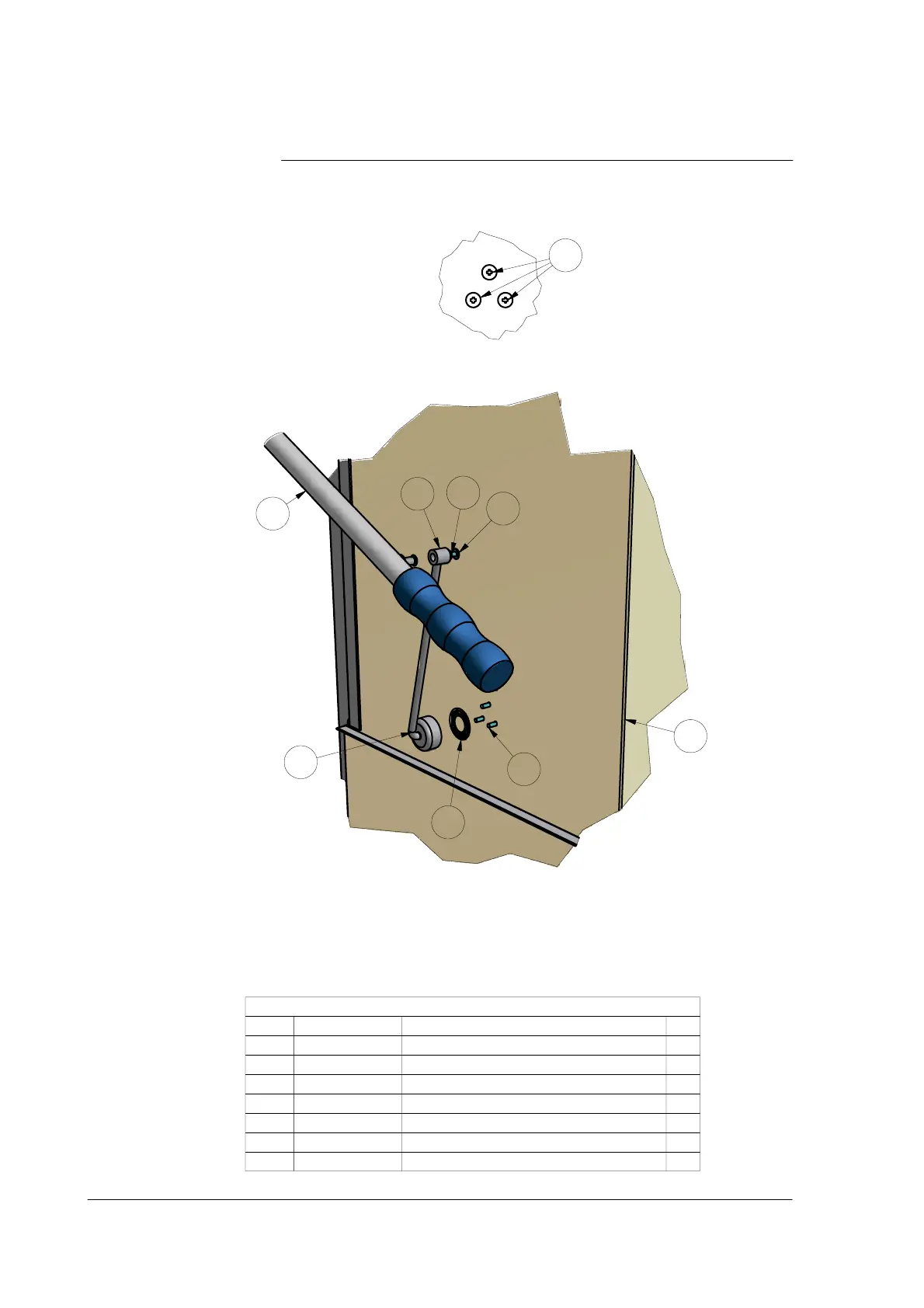

EXPLODED PERSPECTIVE VIEW EXPLODED PERSPECTIVE VIEW
INSIDE DOOR
301 10010
7/08/2006
3-A
M1 (3) DOOR LINK ASSY
REV
Parts List
ITEM PART NUMBER
DESCRIPTION QTY
1 600 80017
M5 x 12 SS TRUSS HEAD SCREW
5
2 301 10037 ASSY M1(3) DOOR HANDLE 1
3 301 10007 M1(3) PASSTHRU DOOR ASSY 1
4 400 90120
PASSTHROUGH DOOR MOUNT GASKET
1
5 600 80026
WASHER FL SS 304 M5x11.5x0.8
1
6 326 10016
M2(3) DOOR STAY ASSY
1
7
600 80091 M5 x 12 SS BUTTON HEAD CAP SCREW 1
6
5
7
4
1
6
2
3
1
Service Manual M1-3 (W) 28 Revision 1B
