WaterBoss Softener Owner’s Manual 12/2/2010 13
Bypass Valve
Your appliance is equipped with a bypass valve. The bypass valve can isolate the appliance should the
appliance malfunction or leak. It can also permit the use of untreated water for watering plants, shrubs, or
lawns.
The bypass is located on the main control valve. See Figure 9. To engage the bypass, turn the knob to the
Bypass position. The appliance will be bypassed and all water to the home is raw, untreated water. To prevent
untreated water from entering the home, water should not be used inside the home when the appliance is in
Bypass mode. Ensure that the appliance is returned to Service mode when the appliance is repaired or the use
of untreated water is complete by turning the knob to Service.
To blend hardness back into the water using the bypass, turn the knob slightly from the Service position toward
the Bypass position.

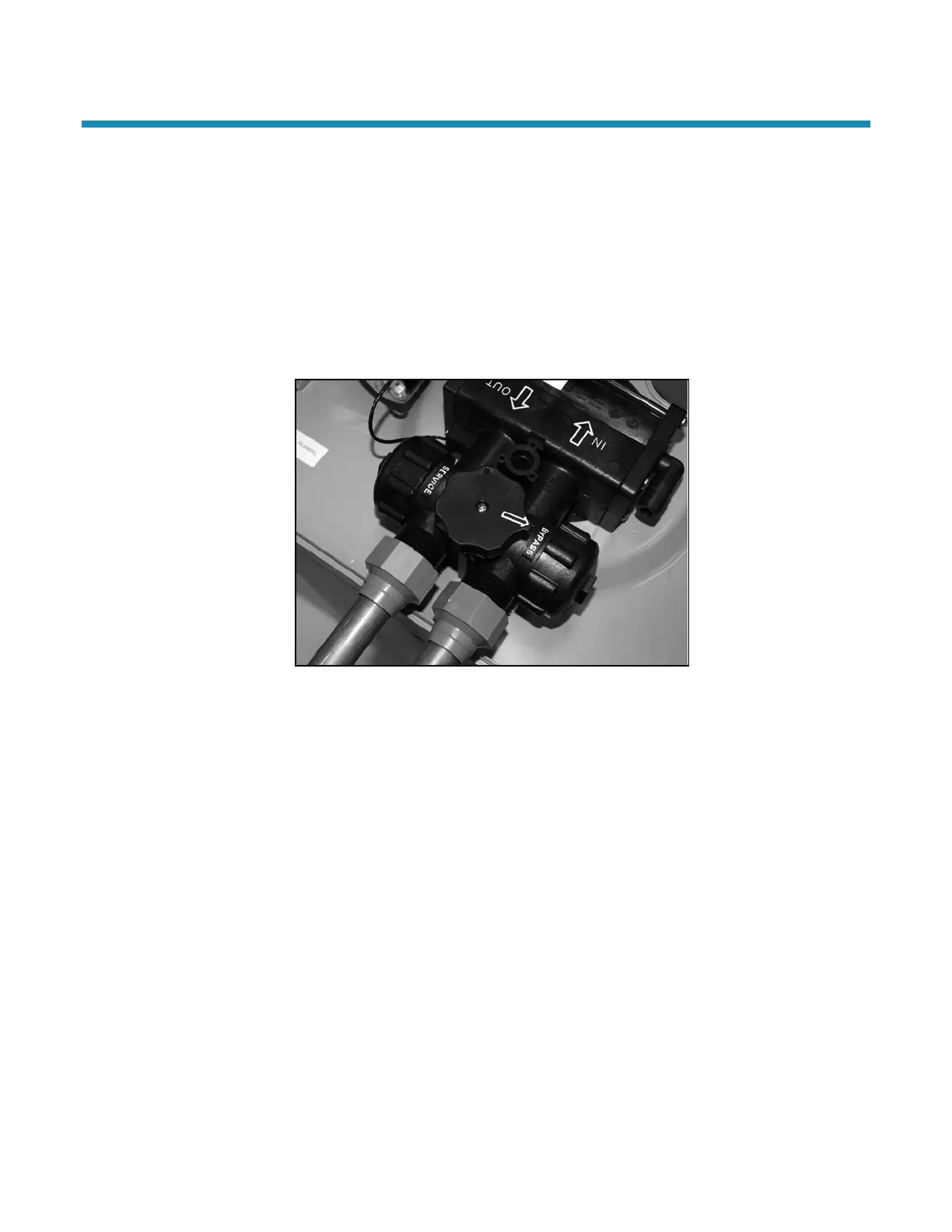

Figure 9: Bypass Valve
