Assembly and Parts, Cont.
Cabinet and Assemblies

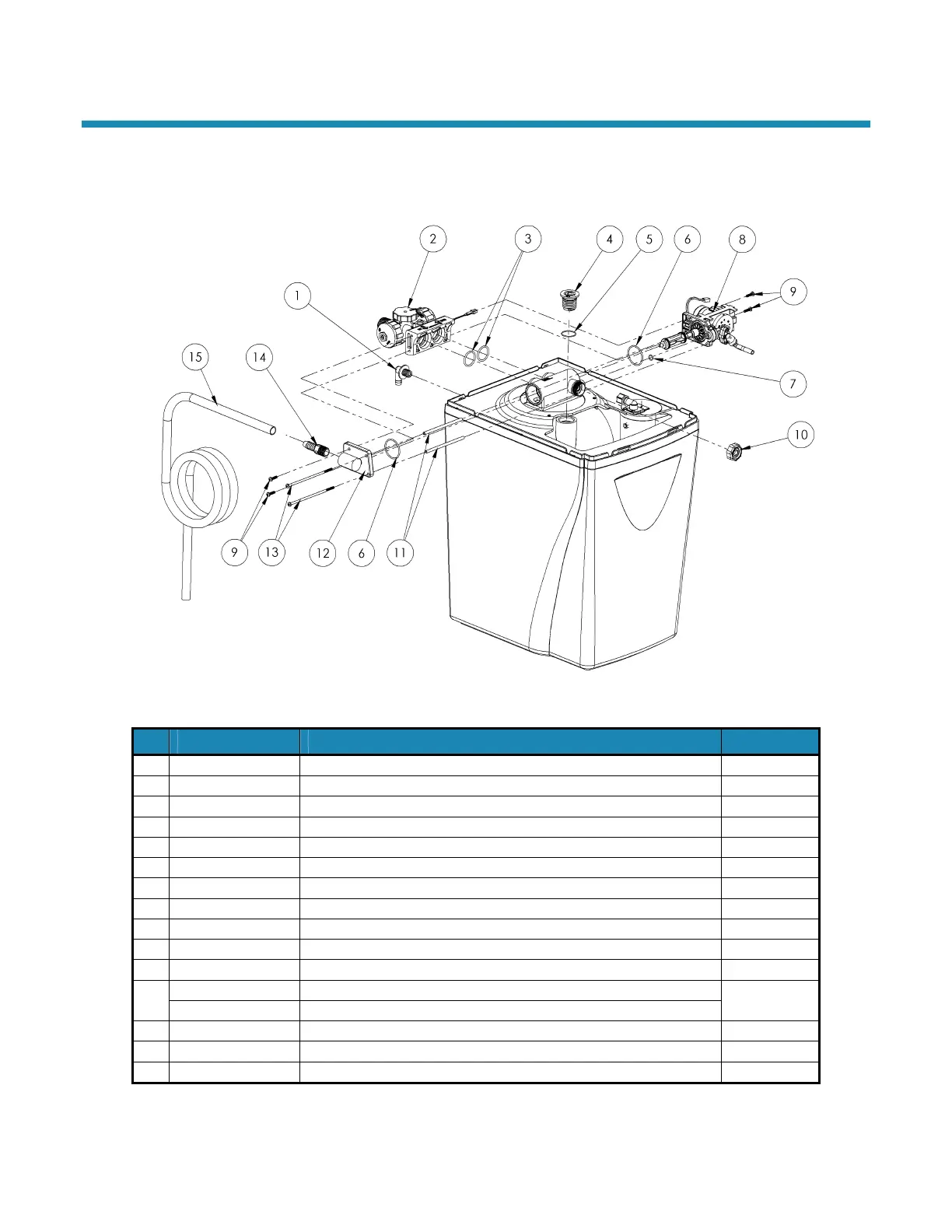

Figure 14: Cabinet and Assemblies
Part # Description Quantity
1 C0700A Overflow Elbow 1
2 54512 Bypass Assembly 1
3 93838 O-Ring 2
4 93281 Fill Plug, Model 950 only 1
5 93272 O-Ring, Model 950 only 1
6 93808 O-Ring 2
7 90828 O-Ring 1
8 54520 Drive End Cap Assembly 1
9 93870 Screw 4
10 93504 Injector Assembly 1
11 93835 Sleeve 2
12 93524 Drain End Cap, Barbed, Model 700 and 900 only, not shown 1
90614-3.0 Drain End Cap Assembly, Model 950 only
13 93809 Screw 2
14 V185 Drain Fitting, 1/2" MNT x Barb, Model 950 only 1
15 93842 Drain Line 1
WaterBoss Softener Owner’s Manual 12/2/2010 22
