Assembly and Parts, Cont.
Safety Shutoff Valve Elbow Installation
3/8" Nut
3/8" Retainer Sleeve
2
3/8" Plastic Gripper
3/8" Plastic T
ube
Safety Shutoff Valve
Hex Nut
Wrist Pin
1/2" Nut
1/2" Plastic Gripper
1/2" Retainer Sleeve
1
Air Check/Draw Tube

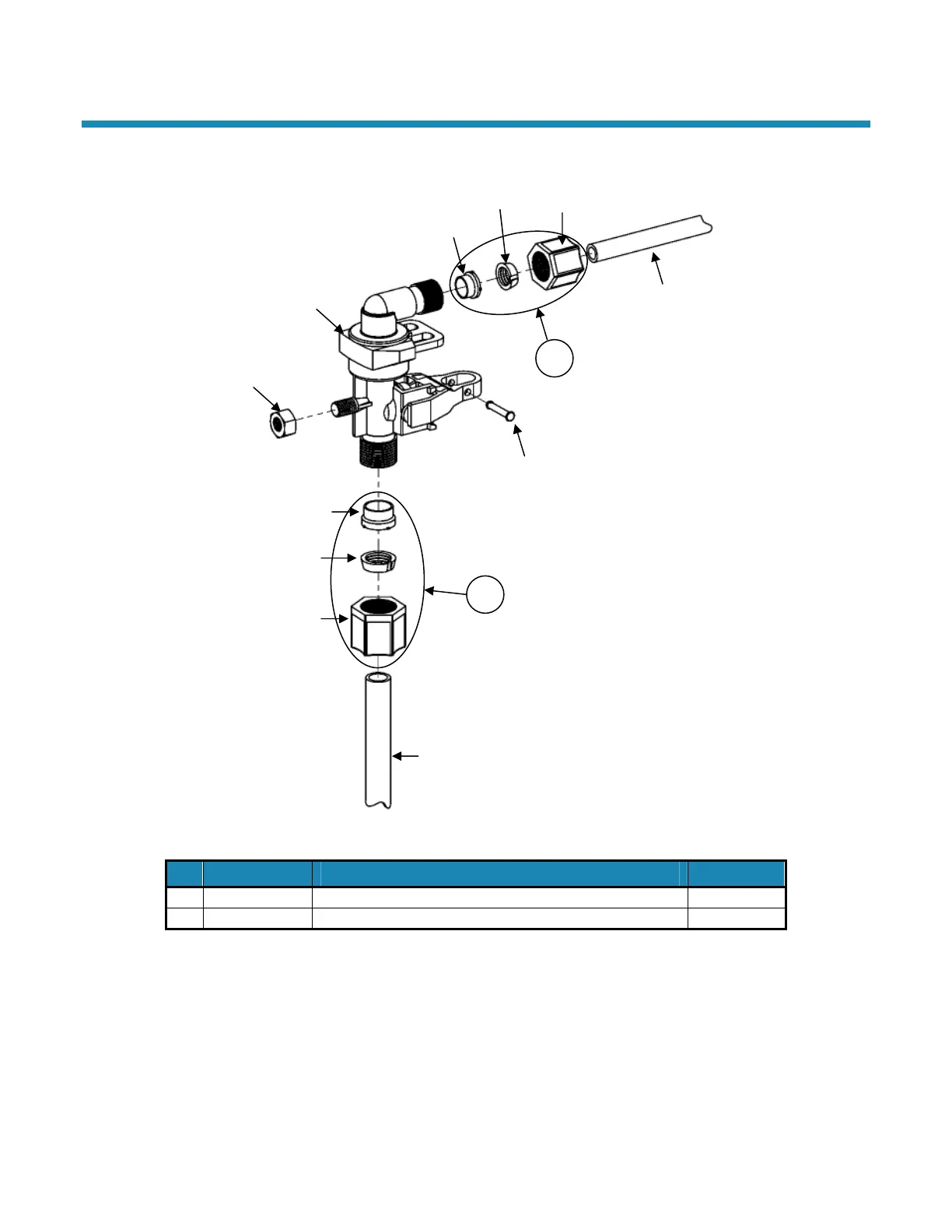

Figure 21: Safety Shutoff Valve Elbow Installation
Part # Description Quantity
1 54112 1/2" Compression Assembly 1
2 54138 3/8" Compression Assembly 1
The nut, gripper, and retainer sleeve are a three-piece assembly that can come apart if removed from the elbow
body. Parts must be reassembled exactly as shown to function properly.
When connecting the 54315 brine valve elbow 3/8-inch plastic tube, first assemble the nut, gripper, and retainer
sleeve on the tubing. Then screw the nut on the elbow body. With a wrench, tighten the nut securely to create a
water-tight connection.
WaterBoss Softener Owner’s Manual 12/2/2010 30
