Watson-Marlow 730 Bp - Page 72

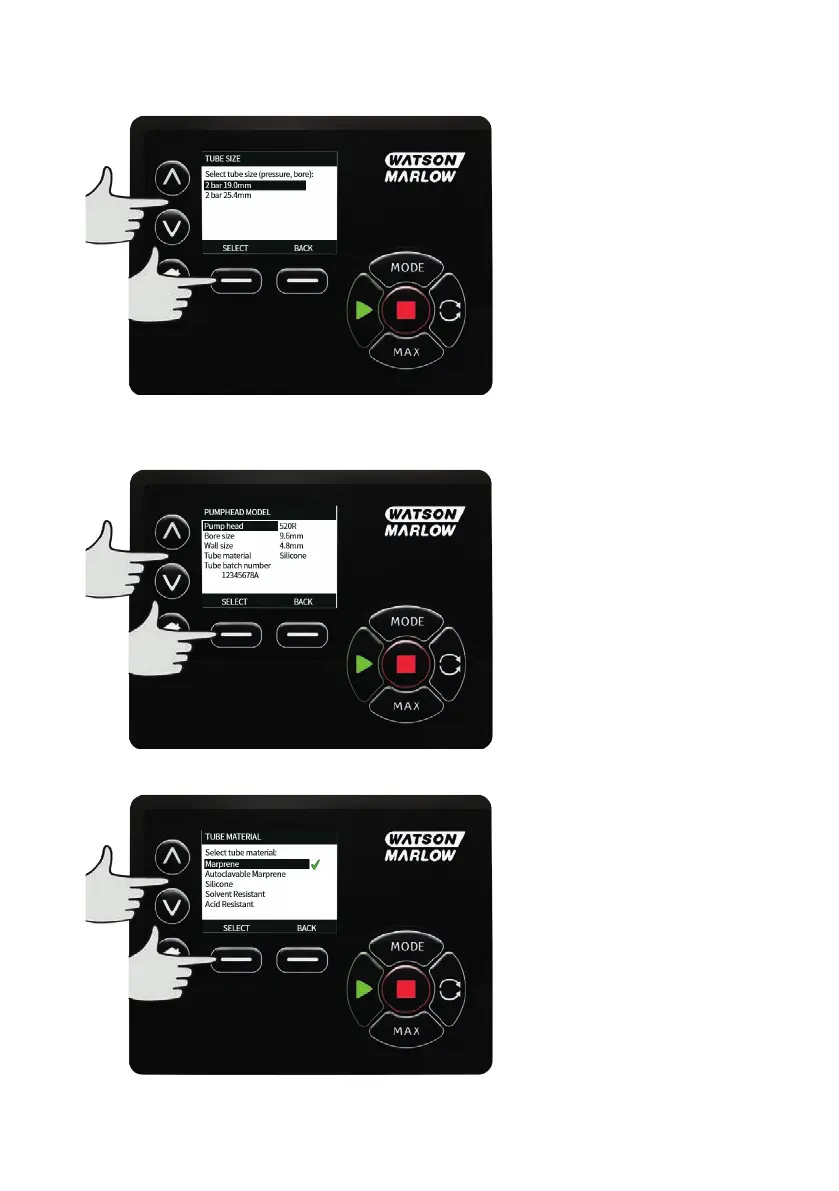

If a LoadSure element has been selected then the tube size is displayed as pressure and bore.
This screen also allows you to select the tube material used.
Use the ∧ /∨ keys to move the selection bar over Tube material and press SELECT.
Use the ∧ /∨ keys to move the selection bar over the tube material to be used and press SELECT.
72 m-730bpn-en-08.1
