WattBox 800 Series User Manual

Page 7

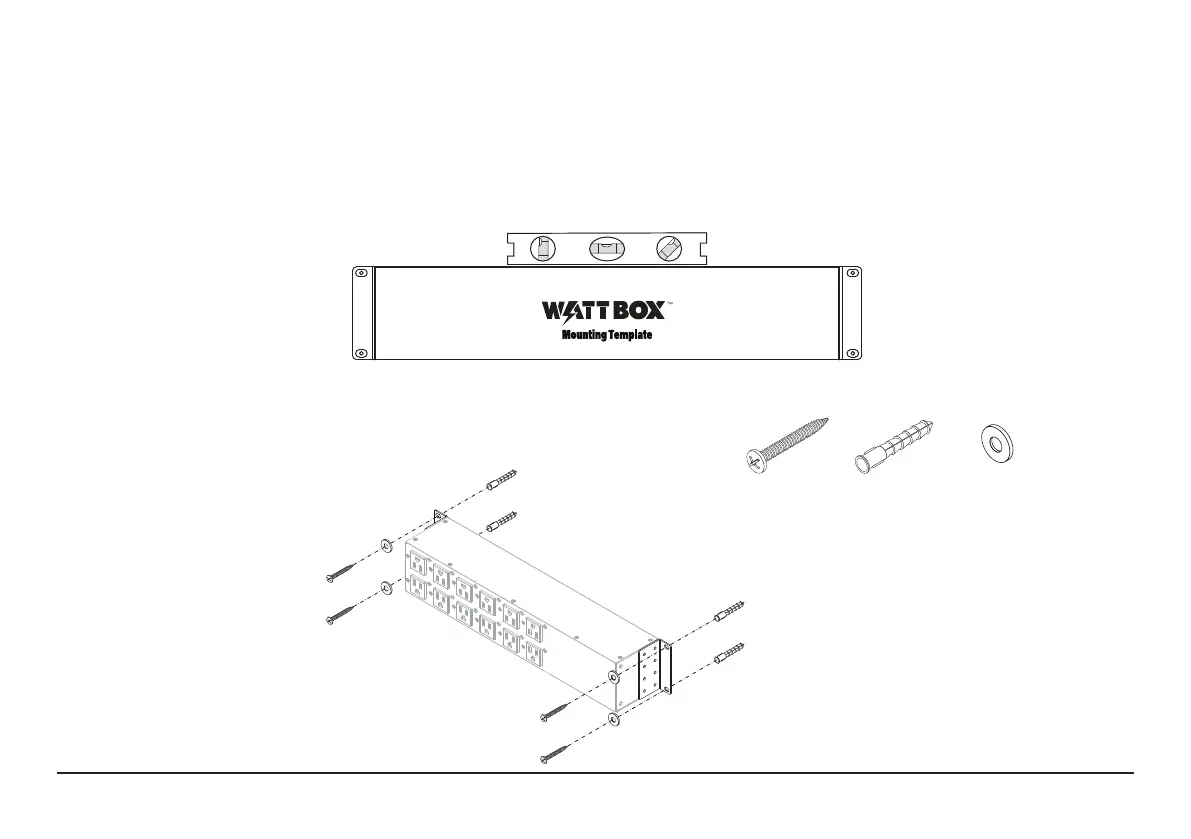

WALL-MOUNTING OPTIONS
e WattBox 800 Series can be mounted to a wall or cabinet by using the small bracket. Mount the small bracket to the WB-800 with
the at part of the bracket facing away from the outlets.
1. Locate wall studs using a stud nder (not included).
2. Position and level the wall-mount template in the desired location, then mark the wall with the screw locations.
3. If the location does not allow for stud mounting, use an anchor (included) or toggle bolt (not included) with the appropriate
weight rating for the WattBox.
4. Secure the WattBox to
the wall.
Screw Anchor
Washer

WattBox 800 Series Specifications

General

Surge Protection	Yes
Remote Management	Yes
Outlets	8
Rack Mountable	Yes
Voltage	120V
Amperage	15A
IP Control	Yes
Maximum Current per Outlet	15A
Power Sequencing	Yes
Series	800
Input Frequency	50/60Hz
Network Control	Ethernet
