CONNECTIONS AND SETUP
1. If attaching a WattBox UPS battery pack to the power conditioner, connect an Ethernet cable between the UPS Link ports on
the power conditioner and the UPS.
2. For IP control and OvrC connectivity, connect a network cable from your router or switch into the WB-800 Network port.
3. Connect the IEC power cord to the power conditioner and to the WattBox UPS (if applicable) or a grounded outlet.
CONTRO LLED 1 CONT ROLLED 2 CON TROLLED 3 CONTRO LLED 4 CON TROLLED 5 CONTR OLLED 6
NETWORK
RESET
120VAC 60Hz
POWER
SAFE
VOLTAGE
ACCUPS LI NK
OFF
ON
WB-800-IPVM-12
CONTRO LLED 7
FILTERED
CONTRO LLED 8 CONT ROLLED 9 CONTRO LLED 10 CONTROL LED 11 CONTRO LLED 12

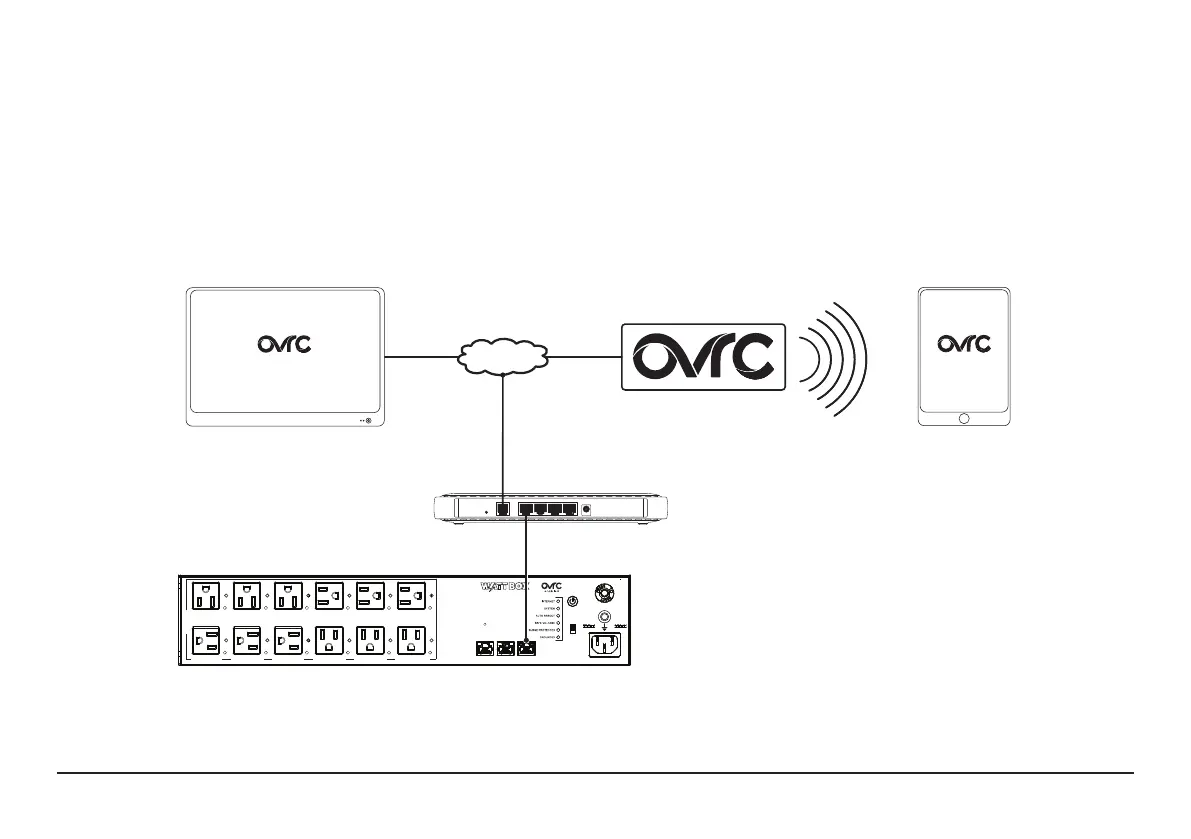

Internet
Web Browser
Access
Mobile Apps
Router
WB-800-IPVM-12
Use OvrC Web and
smartphone apps to monitor
the WattBox remotely
OvrC Web Server

WattBox 800 Series Specifications

General

Surge Protection	Yes
Remote Management	Yes
Outlets	8
Rack Mountable	Yes
Voltage	120V
Amperage	15A
IP Control	Yes
Maximum Current per Outlet	15A
Power Sequencing	Yes
Series	800
Input Frequency	50/60Hz
Network Control	Ethernet
