Benchmark Platinum-Edge [ii]: Installation Manual
SECTION 2 – INSTALLATION
OMM-136_H • GF-210 • 1/6/2021 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 35 of 62
2.10.3 Electrical Power Panel Internal Components
Remove the front panel to access the Power Panel. Run the electrical service through the
opening above the Power Panel and make the connections to the Power Breaker in accordance
to the Power Panel cover label (see Figure 2-9, above).
WARNING!
The power breaker, shown in Figure 2-10a and 2-10b does NOT remove power from the
terminal blocks.

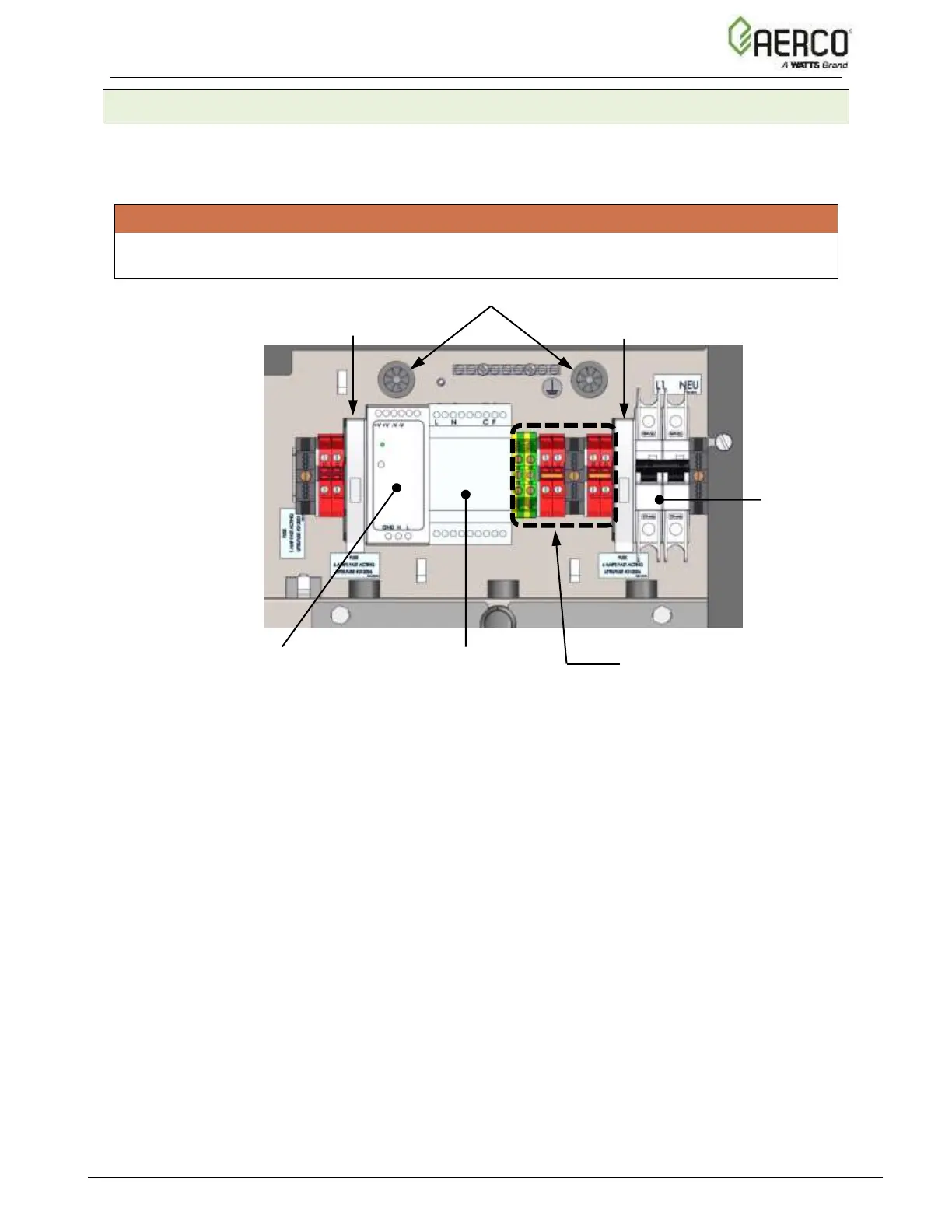

Figure 2-10a: BMK750 - 1500 110 V Power Panel
WIRE CONDUITS
12V POWER SUPPLY
FUSE BLOCK
TERMINAL BLOCKS
FLAME ROD SIGNAL
AMPLIFIER
POWER
BREAKER
FUSE BLOCK
