Watts BT-WR02 RF User Manual

4
BT
-
WR02 RF
Wall
Receiver
Free Contact

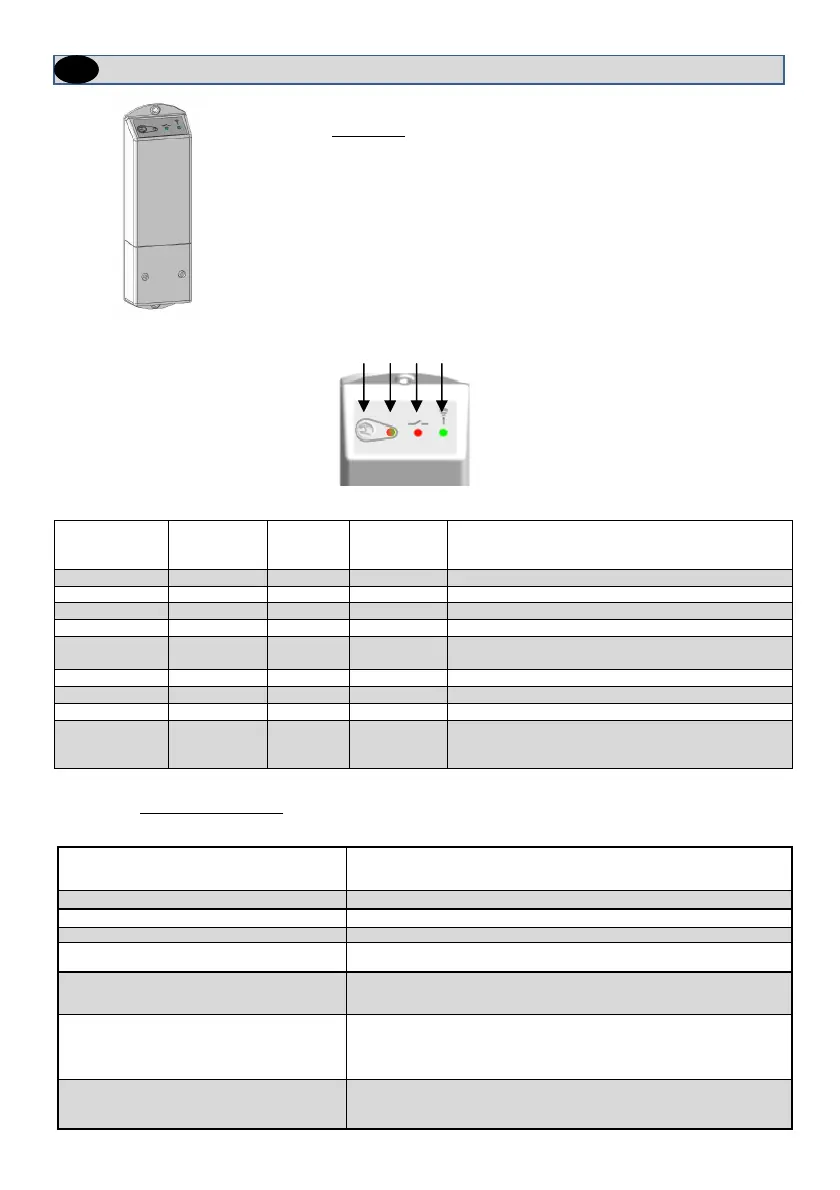

1. Presentation
- The BT-WR02 RF receiver is a Wall mounting receiver, designed to control
heating regulation system with a wireless thermostat BT-DP02 RF.
- This couple (Thermostat Receiver) can also be managed by a Central to have
full control of your heating installation from one point.
A
(RF configuration
button )
B
(Green/Red)
C
(red)
D
(green)
/
green
/
/
Power ON
Short press green
/
/
Instantaneous RF transmission
3sec press green
/
Green flash Thermostat or Central RF init.
6sec press orange
/
Green Slave receiver RF init.
15sec press
orange
blinking
/
Green
blinking
Reset of the receiver
/
green red
/
Heating demand
/
green
/
Green flash RF reception
/
orange
/
/
Pilot wire information
/
green
/
Permanently
Green
blinking
RF Alarm
2. Technical characteristics
Environment. (Temperatures)
Operating :
shipping et storage :
0°C - 40°C
-10°C to +50°C
Power supply
230Vac 50Hz
Electrical protection
Class II - IP20
Pilot wire Input (French market)
6 orders Pilot Wire by phase (L)
Output
Maximum Load
Relay 10Amps 250VAC
Up to 10A - 250Vac 50Hz (2 wires L,N)
Radio Frequency &
RF Receiving distance
868MHz < 10mW (Bidirectional communication)
Range of approximately 100m in open space.
Range of approximately 30m in residential environment.
CE Directives
Your product has been designed in
conformity with the European Directives.
R&TTE 1999/5/EC
LVD 2006/95/EC
EMC 2004/108/EC
RoHS 2011/65/EU
Product conformed to :
Classification :
Contribution :
UE 811/2013 and 2010/30/UE
IV
(2%)
GB
A B C D
