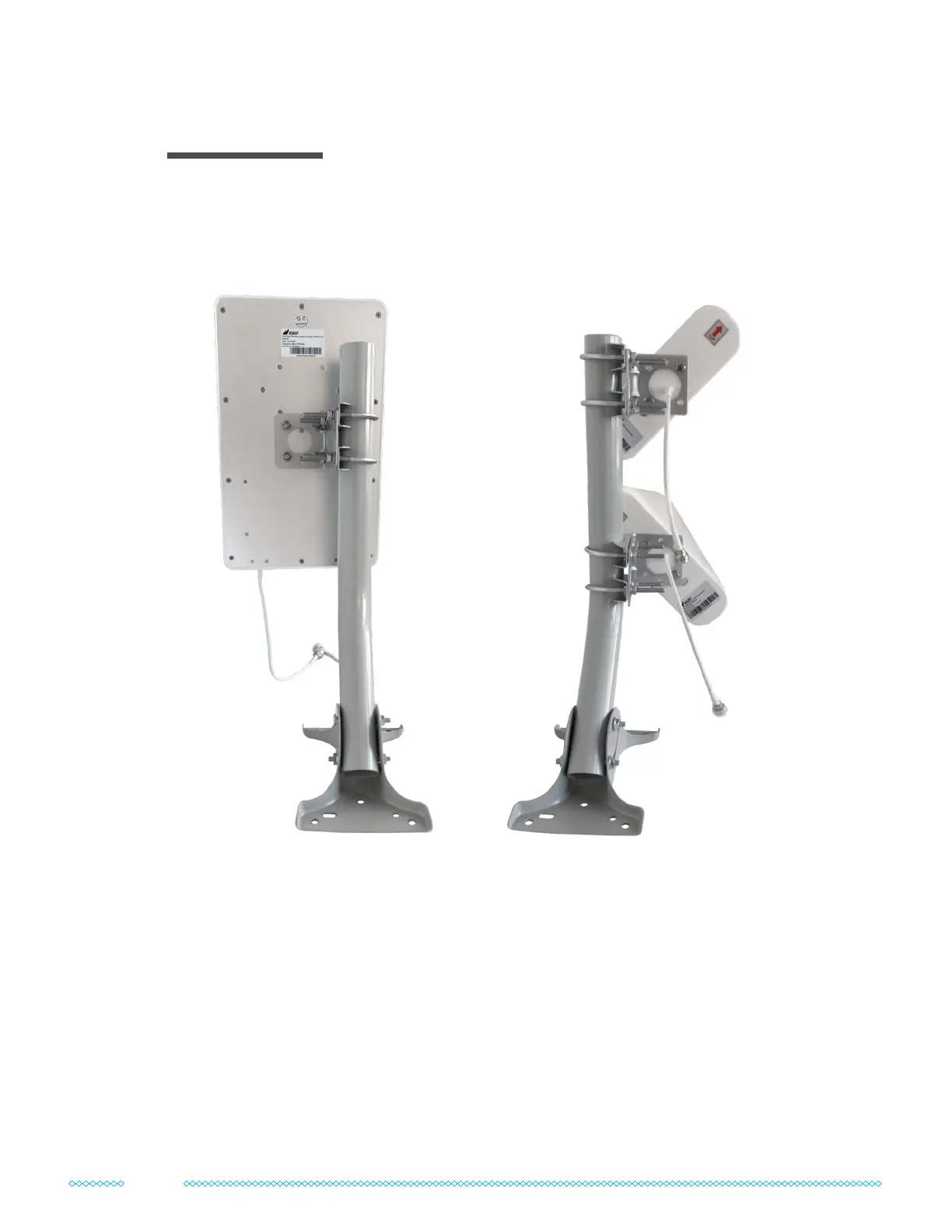

The pictures below show how your antenna(s) should be secured to your mount. It’s helpful to
have your antenna(s) attached to your mount for the next steps in section 3, so take some time
to get the antenna(s) set up before moving on.
For the best results and to ensure their drainage holes work properly, mount the antennas in
the orientation shown above. For the Log Periodic Antennas in particular, ensure their arrows
are pointed upwards. You can nd more detailed instructions on how to attach your antenna(s)
to your J-Mount at waveform.com/polemount-instructions
Cross-Polarizing the Log Periodic Antennas (if purchased)
If you have two Log Periodic Antennas, angle each antenna 45 degrees in opposite directions
to achieve “cross-polarization”, as shown above. Cross-polarizing the antennas and aiming
them in the same direction is crucial to achieving a successful 2x2 MIMO connection. Treat the
two antennas as a single antenna moving forward.
Assembling the Antenna(s)
02
