Now that you have all the components in your system connected and you’ve veried that you
are happy with your data rates, it’s time to mount your QuadMini Duo!
If you’re mounting your QuadMini Duo outdoors...

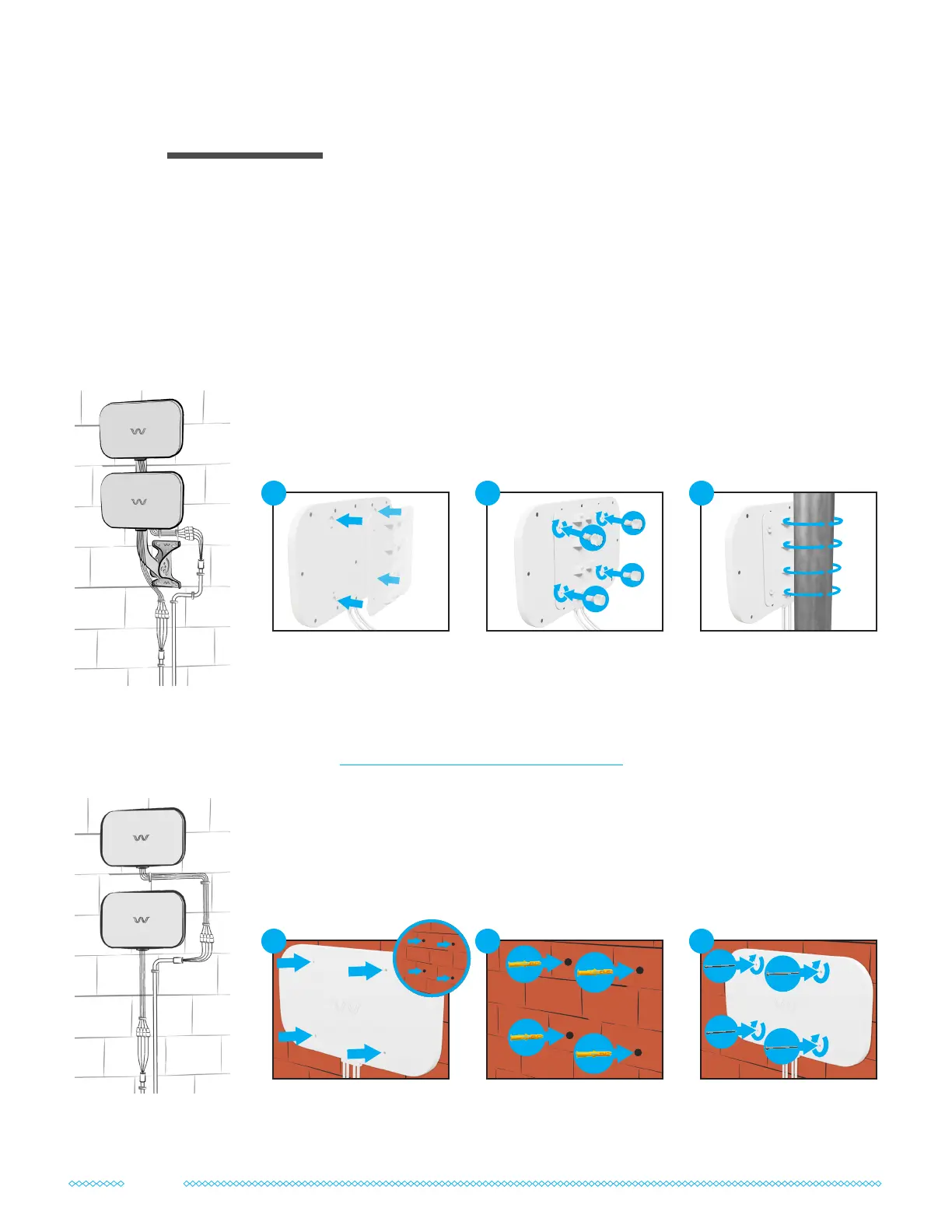

Your QuadMini Duo offers two permanent outdoor mounting options: pole or wall mounting.
Option 1: Pole Mount (High Performance)
Follow the steps below to mount each QuadMini against a pole, using
the included pole bracket:
If your kit includes the UltraPole, refer to its included manual, or nd it
online at waveform.com/ultrapole-manual for its assembly instructions.
Option 2: Wall Mount
Follow the steps below to mount each QuadMini directly against the
side of your building. Use the anchors when installing on hard surfaces
like concrete or soft materials like drywall.
Mounting Your QuadMini Duo
06
Place your pole bracket
into the back of each
QuadMini.
1
Secure the pole bracket
with the thumb screws.
2
Secure each QuadMini
against your pole by
tightening the zip ties.
3
Hold both QuadMini in
position and mark each
hole. Then, drill pilot holes.
1
(Optional) Install the
anchors into the wall of
your building.
2
Place each QuadMini
against the wall near a
window and install the
screws.
3
