94 CHAPTER 9 CLICK 110

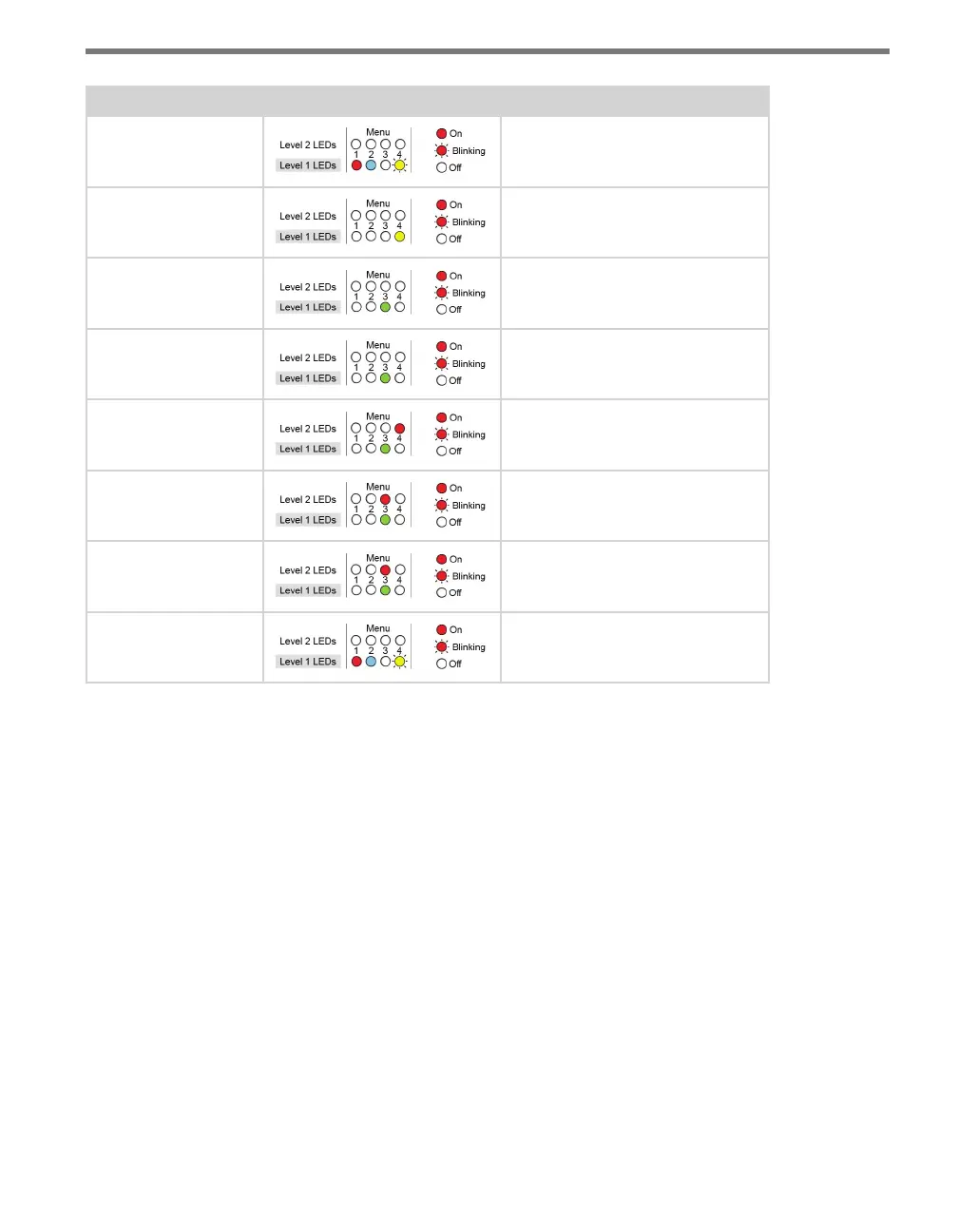

Mode Switch Action Display State
None Normal operation
Press and hold Channel map menu option displayed
Continue holding Autobaud menu option displayed
Release Autobaud menu option displayed
Press and release Autobaud menu selected and first
configuration parameter displayed
(bus 1 autobaud)
Press and hold Second configuration parameter
displayed (bus 2 autobaud)
Release Second configuration parameter
displayed (bus 2 autobaud)
Press and release Configuration parameter selected
and normal operation resumes
Table 9.7 – Menu Operation Example
Front Panel Menu Options
e following gure documents the menu and conguration options available from the
front panel menu. is label is also printed on the side of the Click 110 (on the opposite
side from the DIP switches).
