wavin AS+ - Page 65

65
Wavin AS+ Technical Manual
Wavin AS+
Product range
PIPE
Title
DN Outerdiameter Wallthickness s Length of
Do1 = Ds2 socket P2
50 50 3,0 46
70 75 3,5 51
90 90 4,6 55
100 110 5,3 59
125 125 5,3 63
150 160 5,6 71
200 200 6,0 86

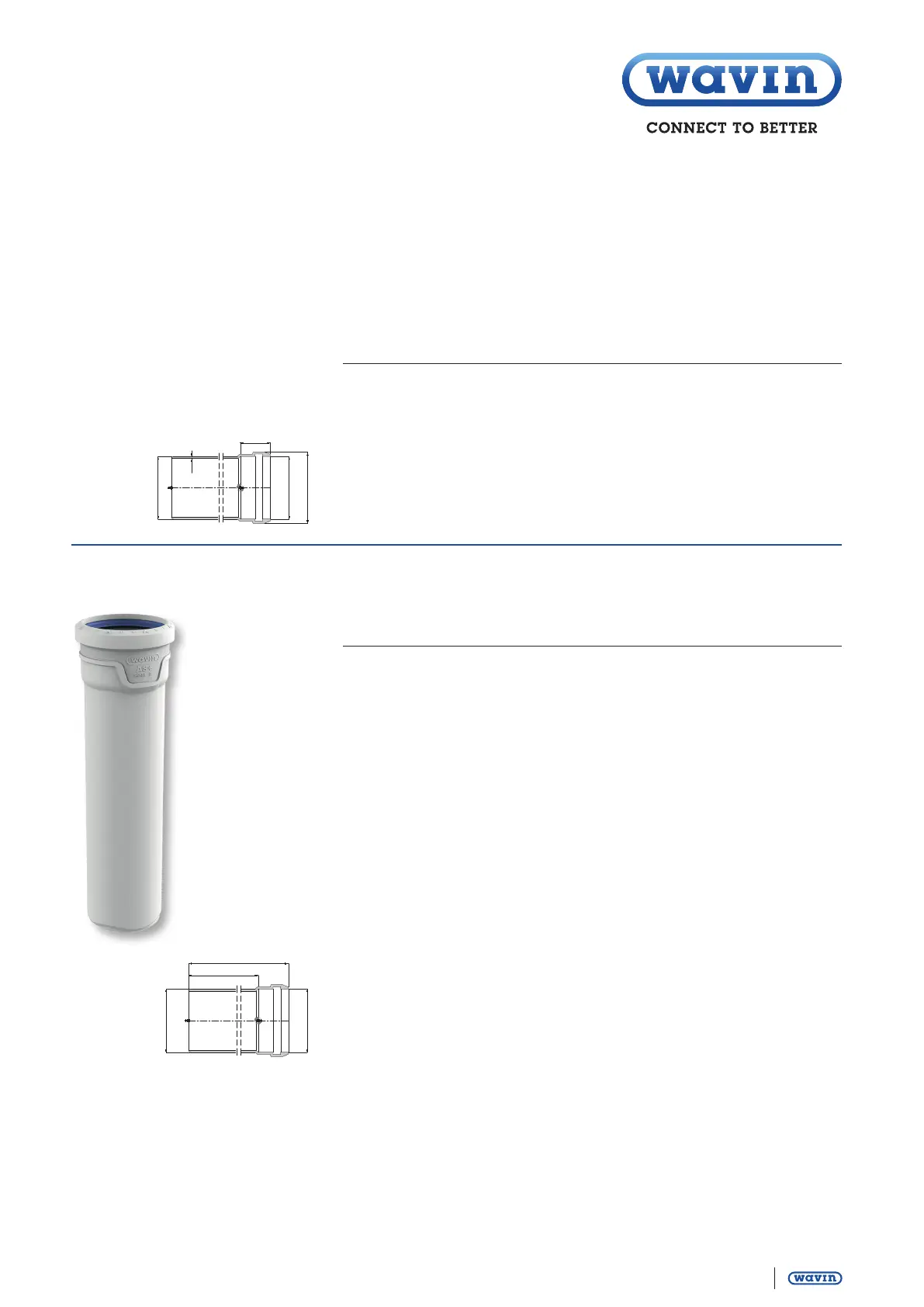

Wavin AS+ Pipe with socket
Diameter Article Do1 L Ds2 Z1 Weight
DN Nr. mm mm mm mm kg/PC
50 3080057 50 198 50 150 0,180
50 3080058 50 298 50 250 0,262
50 3080059 50 546 51 500 0,437
50 3080060 50 1046 51 1000 0,825
50 3080061 50 2046 51 2000 1,605
50 3080062 50 2746 51 2700 2,150
50 3080063 50 3046 51 3000 2,383
70 3080064 75 202 75 150 0,297
70 3080065 75 302 75 250 0,442
70 3080066 75 551 76 500 0,787
70 3080067 75 1051 76 1000 1,490
70 3080068 75 2051 76 2000 2,896
70 3080069 75 2751 76 2700 3,880
70 3080070 75 3051 76 3000 4,302
90
*
3080071 90 205 90 150 0,465
90
*
3080072 90 305 90 250 0,692
90
*
3080073 90 554 91 500 1,250
90
*
3080074 90 1054 91 1000 2,366
90
*
3080075 90 2054 91 2000 4,597
90
*
3080076 90 2754 91 2700 6,160
90
*
3080077 90 3054 91 3000 6,829
100 3080030 110 209 111 150 0,675
100 3080031 110 309 111 250 1,017
100 3080032 110 559 111 500 1,830
100 3080033 110 1059 111 1000 3,407
Ds2
Do1
P2
s
Dr2
Ds2
Do1
Z1
L
