Wavin AS+ Technical Manual
Phone. +31(0)38 42 94 951
Diameter Article Do1 L Ds2 Z1 Weight
DN Nr. mm mm mm mm kg/PC
100 3080034 110 2059 111 2000 6,562
100 3080035 110 2759 111 2700 8,770
100 3080036 110 3059 111 3000 9,716
125 3080037 125 213 125 150 0,788
125 3080038 125 313 125 250 1,155
125 3080039 125 562 126 500 2,092
125 3080040 125 1062 126 1000 3,895
125 3080041 125 2062 126 2000 7,502
125 3080042 125 2762 126 2700 10,026
125 3080043 125 3062 126 3000 11,109
150 3080044 160 221,4 160 150 1,088
150 3080045 160 321,4 160 250 1,088
150 3080046 160 570,2 161 500 2,865
150 3080047 160 1070 161 1000 5,334
150 3080048 160 2070 161 2000 10,272
150 3080049 160 2770 161 2700 13,730
150 3080050 160 3070 161 3000 15,211
200
*
3080051 200 328 201 250 2,05
200
*
3080052 200 584 201 500 4,145
200
*
3080053 200 1084 201 1000 7,488
200
*
3080054 200 2084 201 2000 14,172
200
*
3080055 200 2784 201 2700 18,852
200
*
3080056 200 3084 201 3000 20,857
*
Available in Q1 2020
FITTINGS

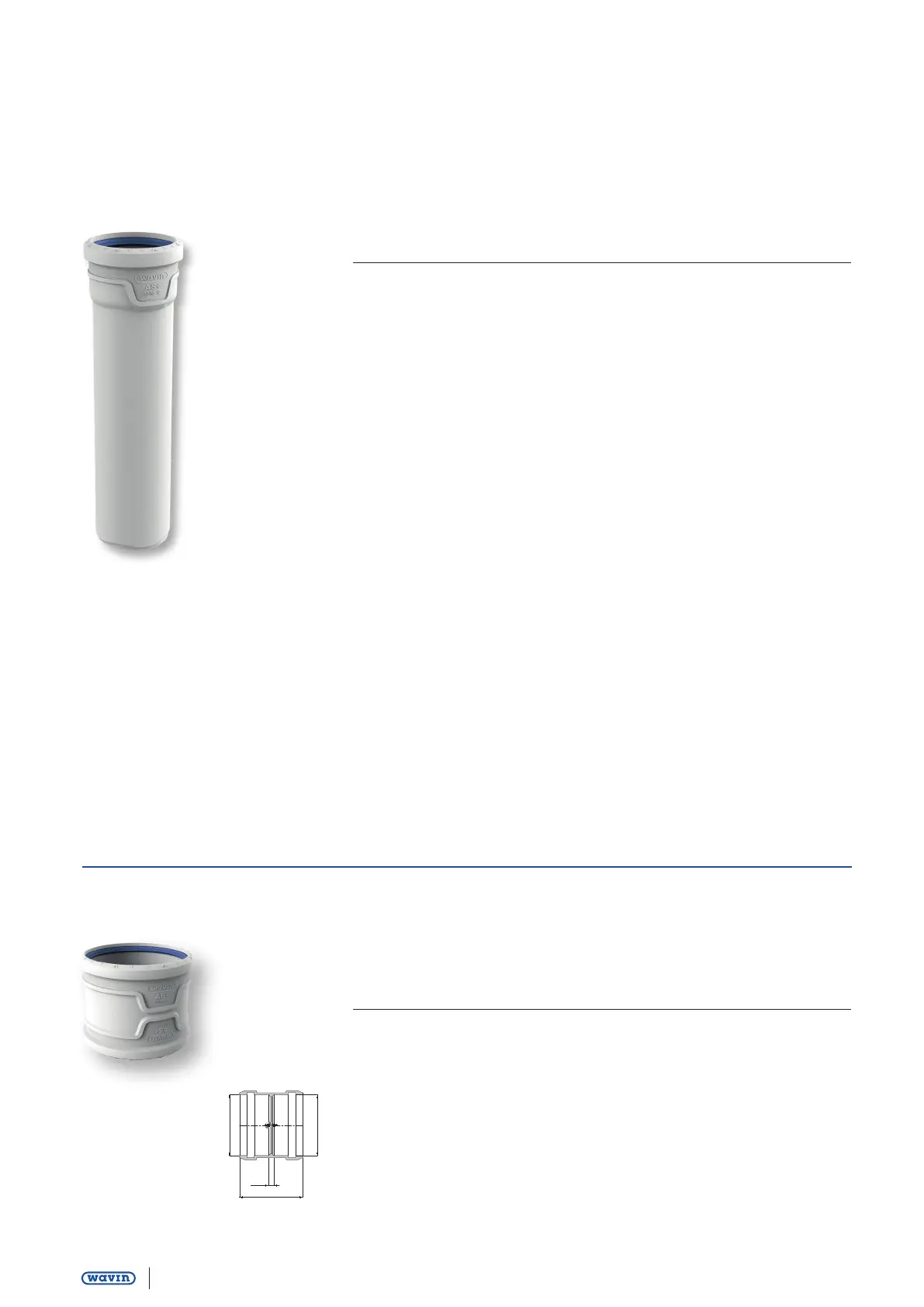

Wavin AS+ Double socket coupler
Diameter Article L Ds1 Ds2 Z1 Weight
DN Nr. mm mm mm mm kg/PC
50 3080016 99 50 50 3 0,123
70 3080017 107 75 75 3 0,174
90
*
3080018 114 90 90 3 0,263
100 3080012 124 111 111 5 0,391
125 3080013 132 125 125 5 0,512
150 3080014 148 160 160 5 0,755
200
*
3080015 181 201 201 8 1,327
*
Available in Q1 2020
Z1
Ds1
Ds2
L
