Wavin AS+ Technical Manual

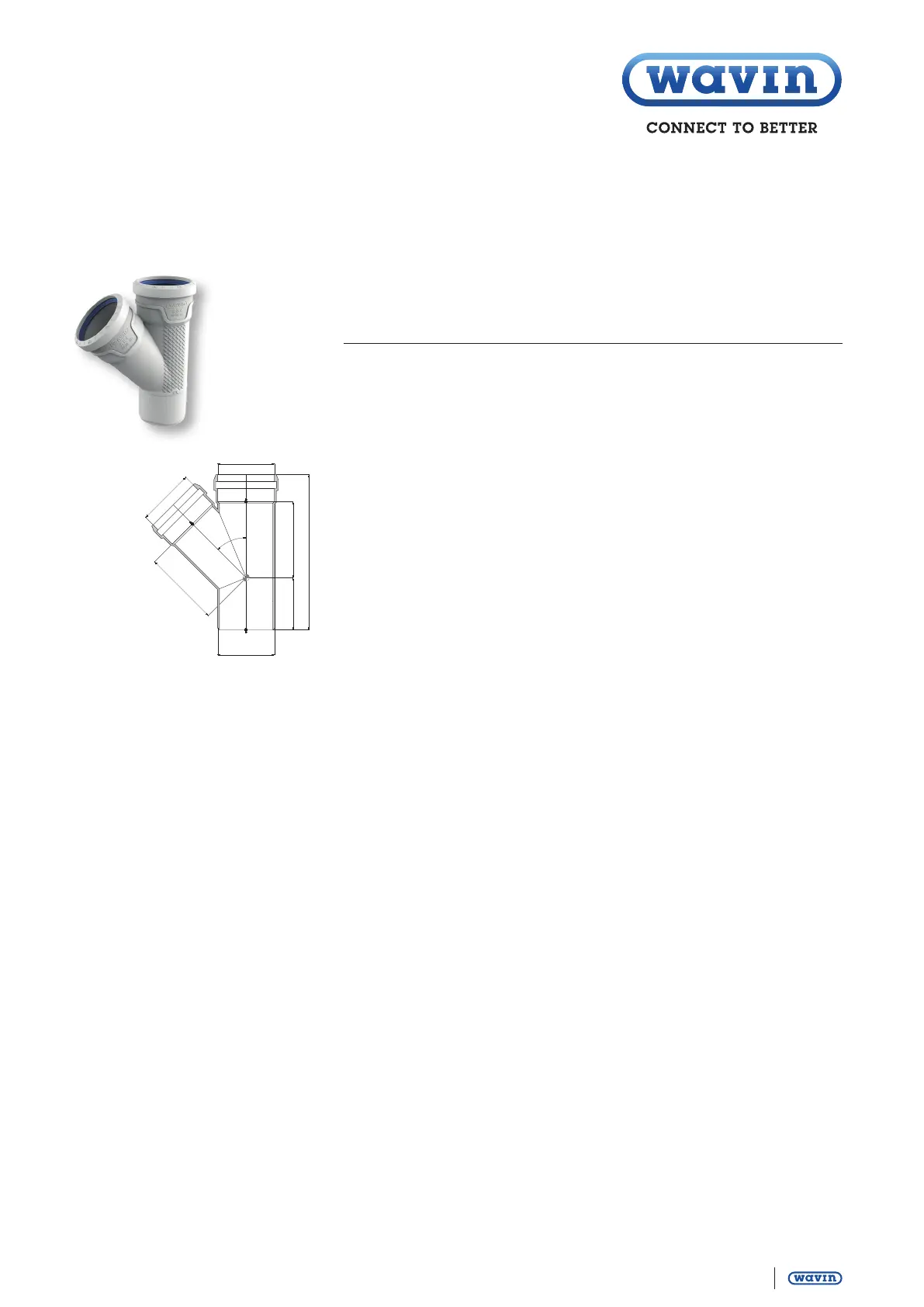

Wavin AS+ Branch > 45° and 87°
Diam. a Article Do1 L Ds2 Ds3 Z1 Z2 Z3 Weight
DN Nr. mm mm mm mm mm mm mm kg/PC
50/50 45° 3079996 50 171 50 50 60 62 62 0,250
87° 3079997 50 150 50 50 75 29 29 0,202
70/50 45° 3079998 75 178 50 75 52 82 78 0,336
87° 3079999 75 158 50 75 78 42 30 0,291
70/70 45° 3080000 75 215 75 75 69 95 95 0,442
87° 3080001 75 183 75 75 90 45 42 0,343
90/50
*
45° 3080002 90 185 50 90 55 93 77 0,487
87° 3080003 90 186 50 90 82 52 30 0,432
90/70
*
45° 3080004 90 220 75 90 65 106 103 0,610
87° 3080005 90 191 75 90 93 49 45 0,495
90/90
*
45° 3080006 90 243 90 90 76 114 114 0,757
87°* 3080007 90 224 90 90 124 68 48 0,646
100/50 45° 3079982 110 197 50 110 59 106 81 0,689
87° 3079983 110 178 50 110 85 59 36 0,637
100/70 45° 3079984 110 230 75 110 59 120 114 0,836
87° 3079985 110 200 75 110 97 59 46 0,695
100/90 45° 3079986 110 249 90 110 69 128 123 0,986
87° 3079987 110 216 90 110 105 60 55 0,791
100/100 45° 3079981 110 277 111 110 83 194 138 1,216
87°* 3079980 110 253 110 110 136 77 56 1,061
125/100 45° 3079988 125 291 110 125 81 152 149 1,410
87° 3079989 125 241 110 125 118 70 63 1,056
125/125 45° 3079990 125 310 125 125 91 158 158 1,607
150/100 45° 3079991 160 304 110 160 71 175 165 1,822
87° 3079992 160 256 110 160 124 87 6 1,424
150/125 45° 3079993 160 326 125 160 82 184 176 2,029
Z2
Z3
Z1
a
L
Do1
Ds3
Ds2
