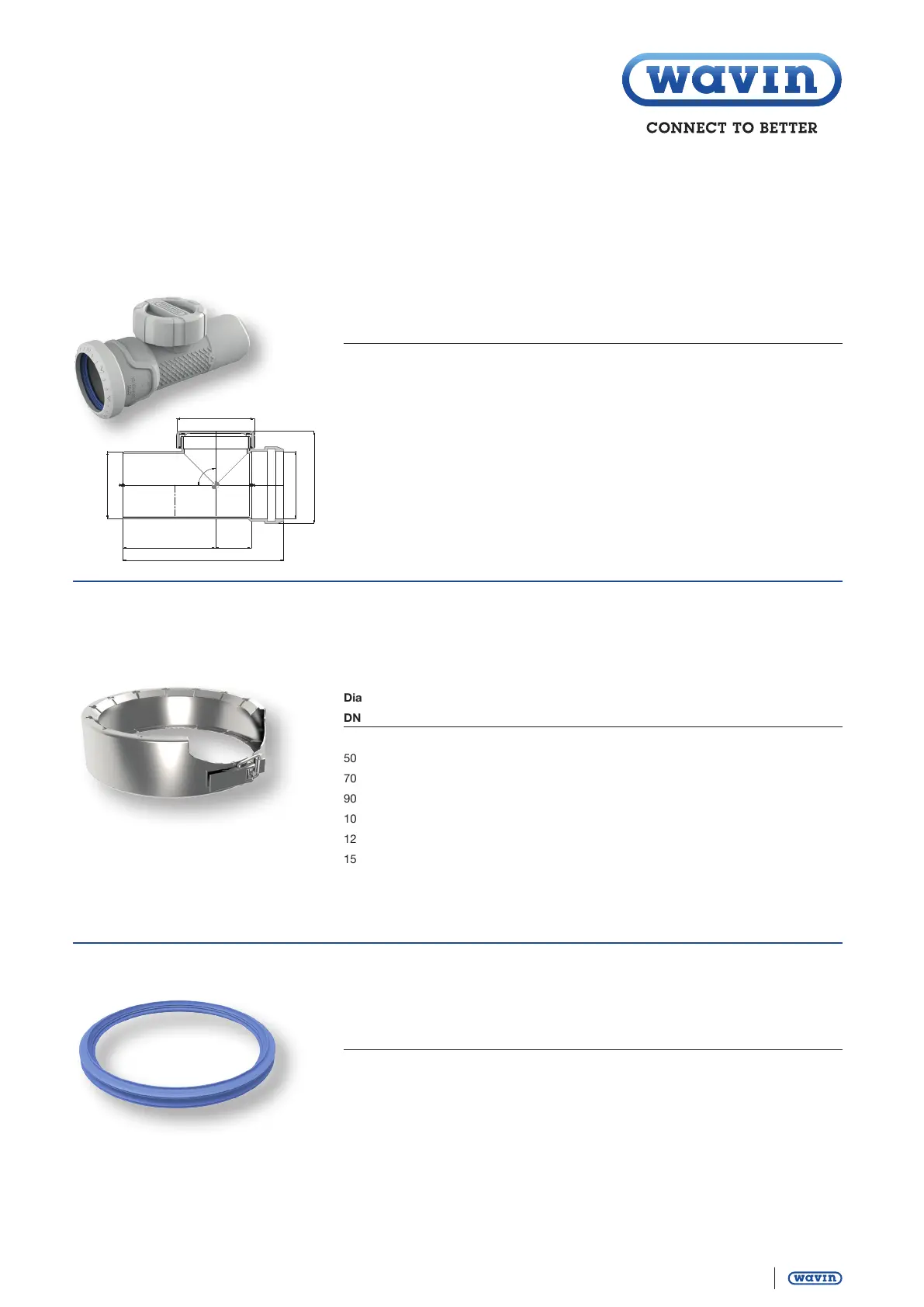

Wavin AS+ Technical Manual
Wavin AS+ Access Piece
Diam. a Article Do1 L Ds2 Z1 Z2 K H Weight
DN Nr. mm mm mm mm mm mm mm kg/PC.
50 3079917 50 164 50 82 37 65 84
70 3079918 75 200 76 97 53 93 111
90
*
3079949 90 228 90 114 62 111 131
100 3079913 110 258 110 129 72 130 156
125 3079914 125 259 125 127 71 130 174
150 3079915 160 271 160 135 68 130 213
200
*
3079916
*
Available in Q1 2020
ACCESSORIES
Wavin AS+ LKS-Clamp
Diam. Article
DN Nr.
50 4065138
70 4065139
90
*
4065140
100 4065141
125 4065142
150 4065143
200
*
4065144
*
Available in Q1 2020
Gasket > EPDM
Diam. Article
DN Nr.
50 4065145
70 4065186
90 4065187
100 4065188
125 4065189
150 4065190
200 4065191
H
a
Do1
L
Ds2
K
Z2
Z1
