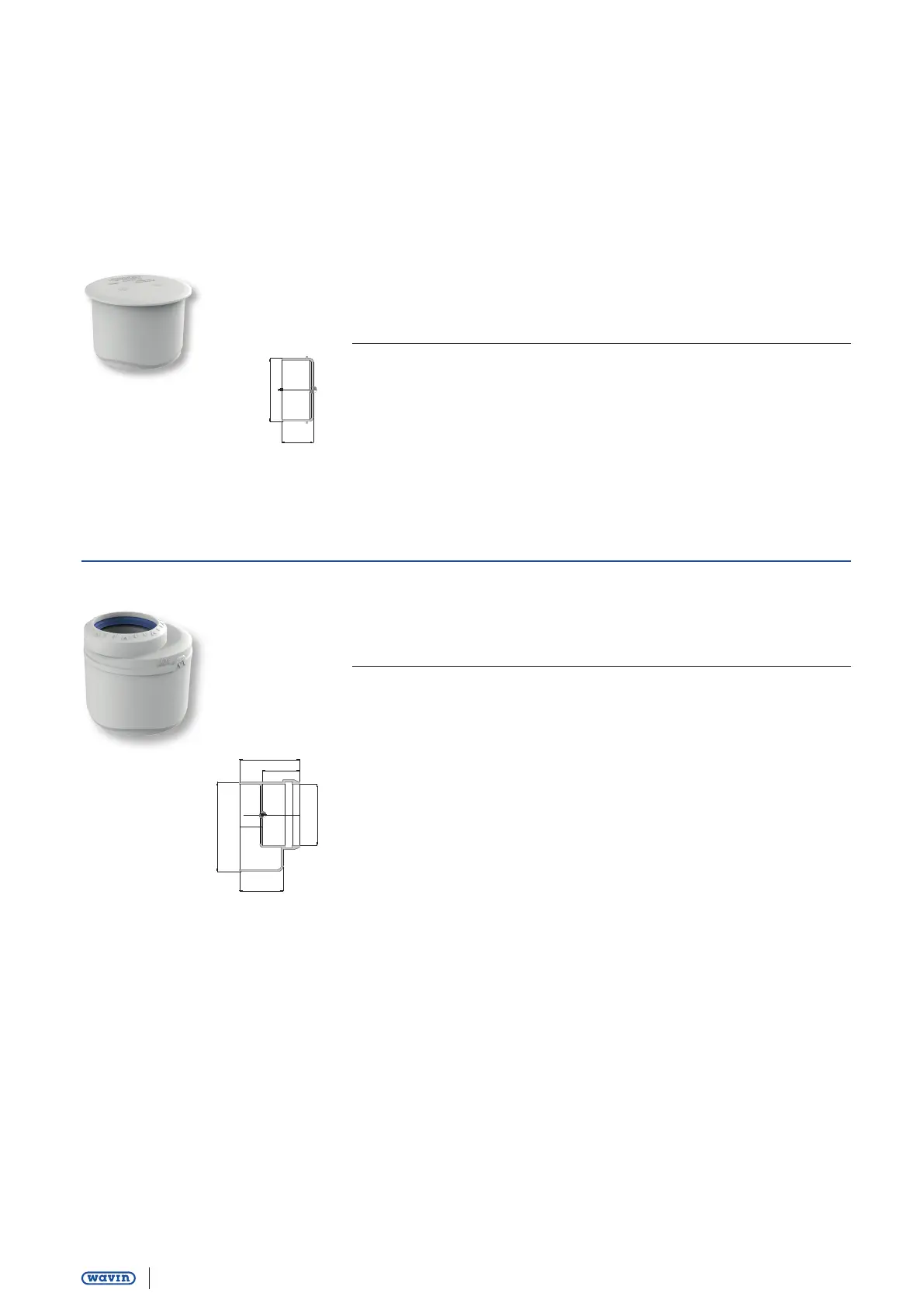

Wavin AS+ End cap
Diam. Article Do1 Z1 Weight
DN Nr. mm mm kg/PC
50 3080106 50 51 0,055
70 3080107 75 55 0,108
90
*
3080108 90 60 0,186
100 3080103 110 65 0,290
125 3080104 125 68 0,360
150 3080105 160 76 0,565
*
Available in Q1 2020
Wavin AS Reducer
Diam. Article Do1 L Ds2 P2 Q1 Weight
DN Nr. mm mm mm mm mm kg/PC
70/50 3080085 75 79 51 48 68 0,151
90/50
*
3080086 90 86 51 19 72 0,222
90/70
*
3080087 90 85 76 52 0,193
100/50 3080078 110 90 51 53 79 0,356
100/70 3080079 110 90 76 57 79 0,334
100/90 3080080 110 91 90 61 78 0,328
125/100 3080081 125 99 111 59 0,371
150/100 3080082 160 114 111 59 98 0,691
150/125 3080083 160 114 126 63 98 0,706
200/150
*
3080084 200 130 160 24 114 1,022
*
Available in Q1 2020
Ds2
Do1
Q1
P2
L
Do1
Z1
