Wavin AS+ Technical Manual

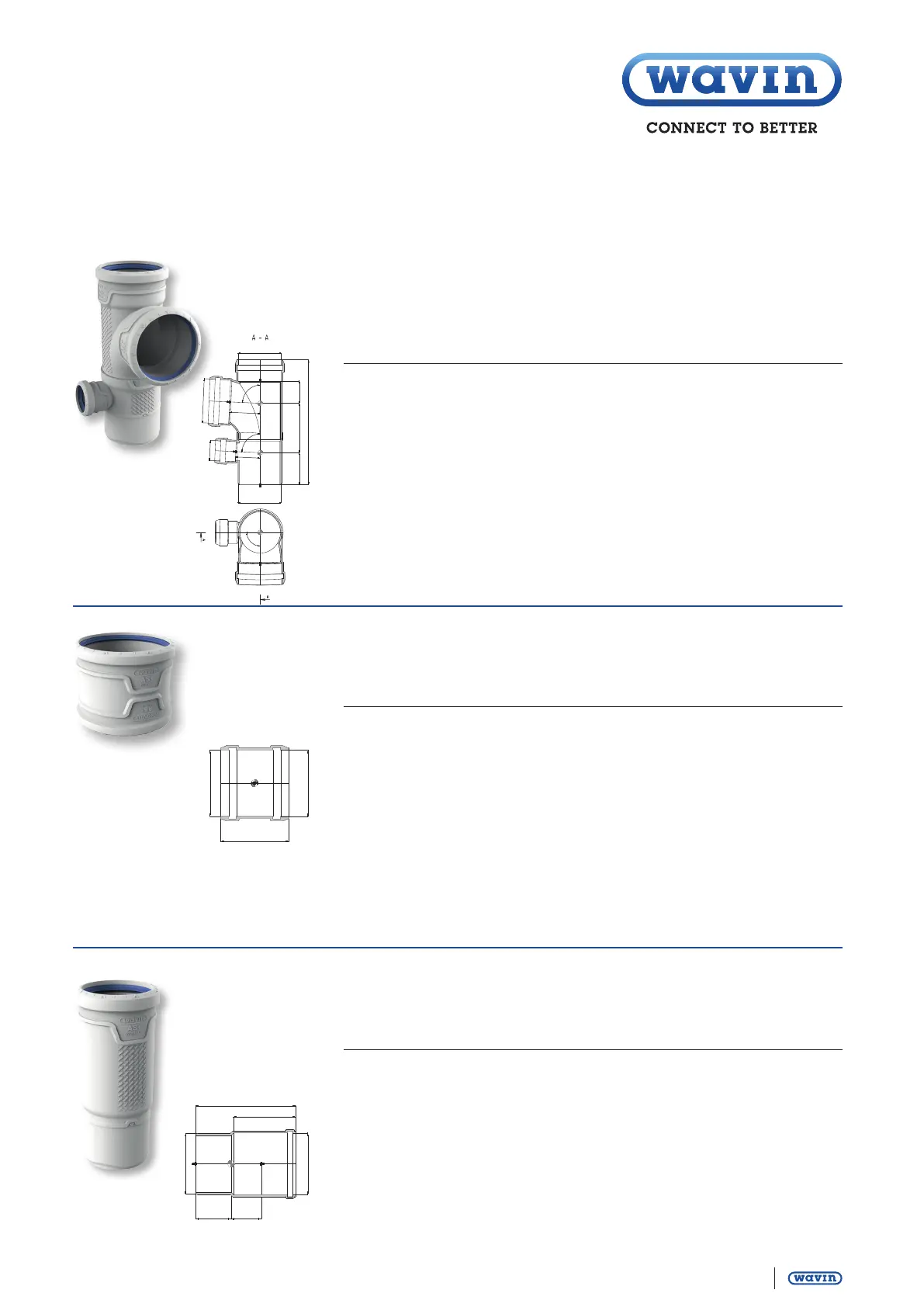

Wavin AS+ Showerdouble branch > 87° > right
Diam. Article Do1 L Ds2 Ds3 Z Z1 Z2 Z3 Weight
DN Nr. mm mm mm Ds4 mm mm mm kg/PC
mm
90/90/50
*
3080100 90 296 50 90 114 82 51 68 1,11
100/100/50 3080097 110 330 50 110 126 87 59 81 1,78
*
Available in Q1 2020
Wavin AS+ Repair coupler
Diam. Article L Ds1 Ds2 Weight
DN Nr. mm mm mm kg/PC
50 3080092 99 50 50 0,121
70 3080093 107 75 75 0,170
90
*
3080094 114 90 90 0,263
100 3080088 124 110 110 0,387
125 3080089 132 125 125 0,512
150 3080090 148 160 160 0,755
200
*
3080091 181 201 201
*
Available in Q1 2020
Wavin AS+ Long socket
Diam. Article Do1 L Ds2 P2 Z1 Z2 Weight
DN Nr. mm mm mm mm mm mm kg/PC
50 3080023 50 184 50 105 57 60 0,178
70 3080024 75 199 75 129 62 66 0,268
90
*
3080025 90 202 90 125 66 92 0,421
100 3080019 110 219 110 137 69 88 0,657
125 3080020 125 237 125 148 74 79 0,811
150 3080021 160 264 160 164 85 123 1,183
200
*
3080022
*
Available in Q1 2020
Z4
Z
Z3
Z2
Z1
L
Ds4
Ds3
Ds2
Do1
a2
a
a
Ds1
Ds2
L
Do1
Z1
Z2
P2
L
Ds2
