Wayne-Dalton FireStar 540 - Section 2 - Supplied Parts List Bracket Assemblies and Components

344940 REV2 03/17/2020
©
Copyright 2020 Wayne Dalton, a division of Overhead Door Corporation 6
HOOD STRAPS
OPTIONAL AWNING
CRANK
BRACKET
HOUSING
LIFTUP/CRANK TOP
MOUNT OPPERATOR
BRACKET ASSEMBLY
LIFTUP/CRANK BOTTOM MOUNT
OPERATOR BRACKET ASSEMBLY
ADJUSTING
WHEEL
FRONT HOOD
ADJUSTING BRACKET
ASSEMBLY
TUBE MOTOR OPERATOR
BRACKET ASSEMBLY
BOTTOM
BAR STOP
CURTAIN
LOCK
LIFTUP/CRANK DROP
MECHANISM COMPONENTS

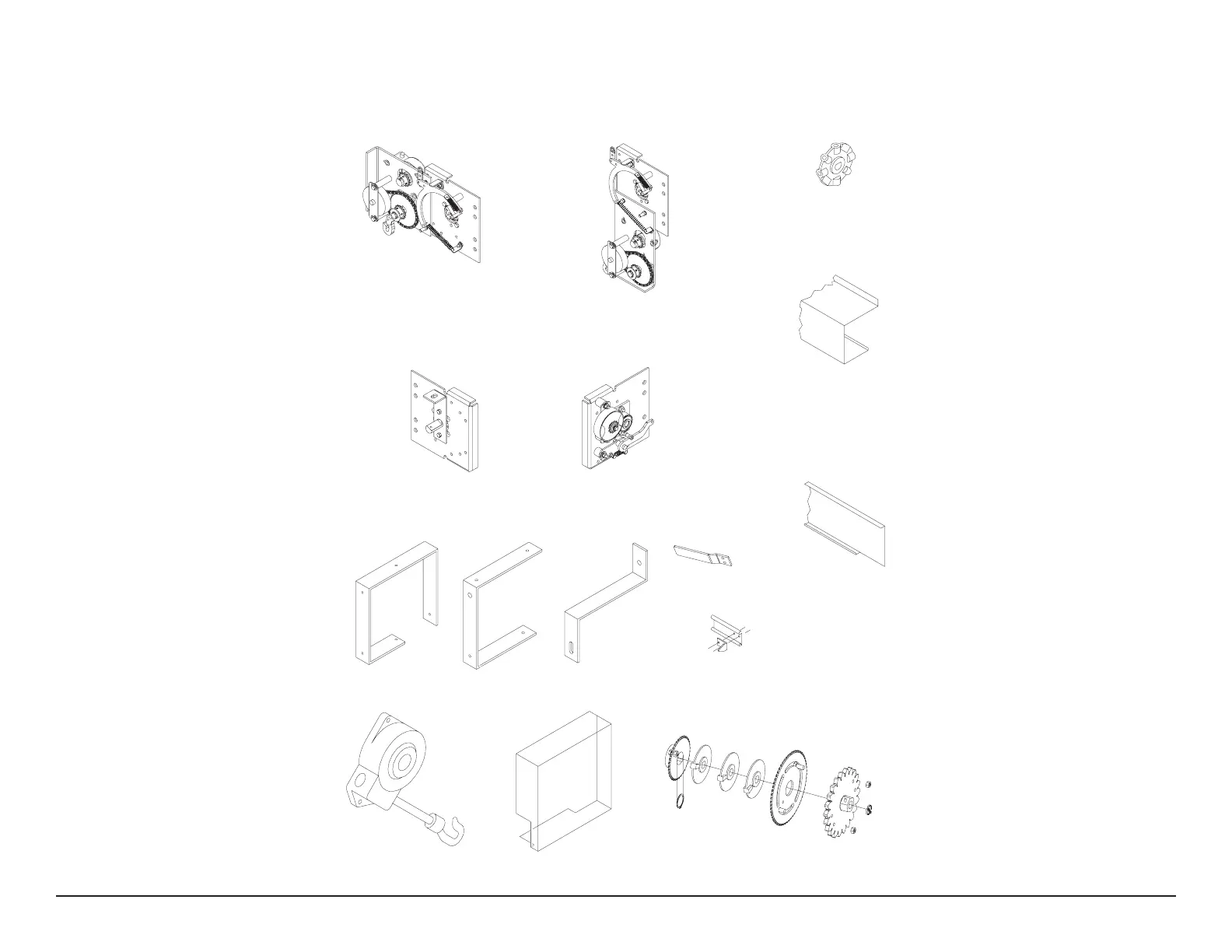

SECTION 2  SUPPLIED PARTS LIST
BRACKET ASSEMBLIES AND COMPONENTS
