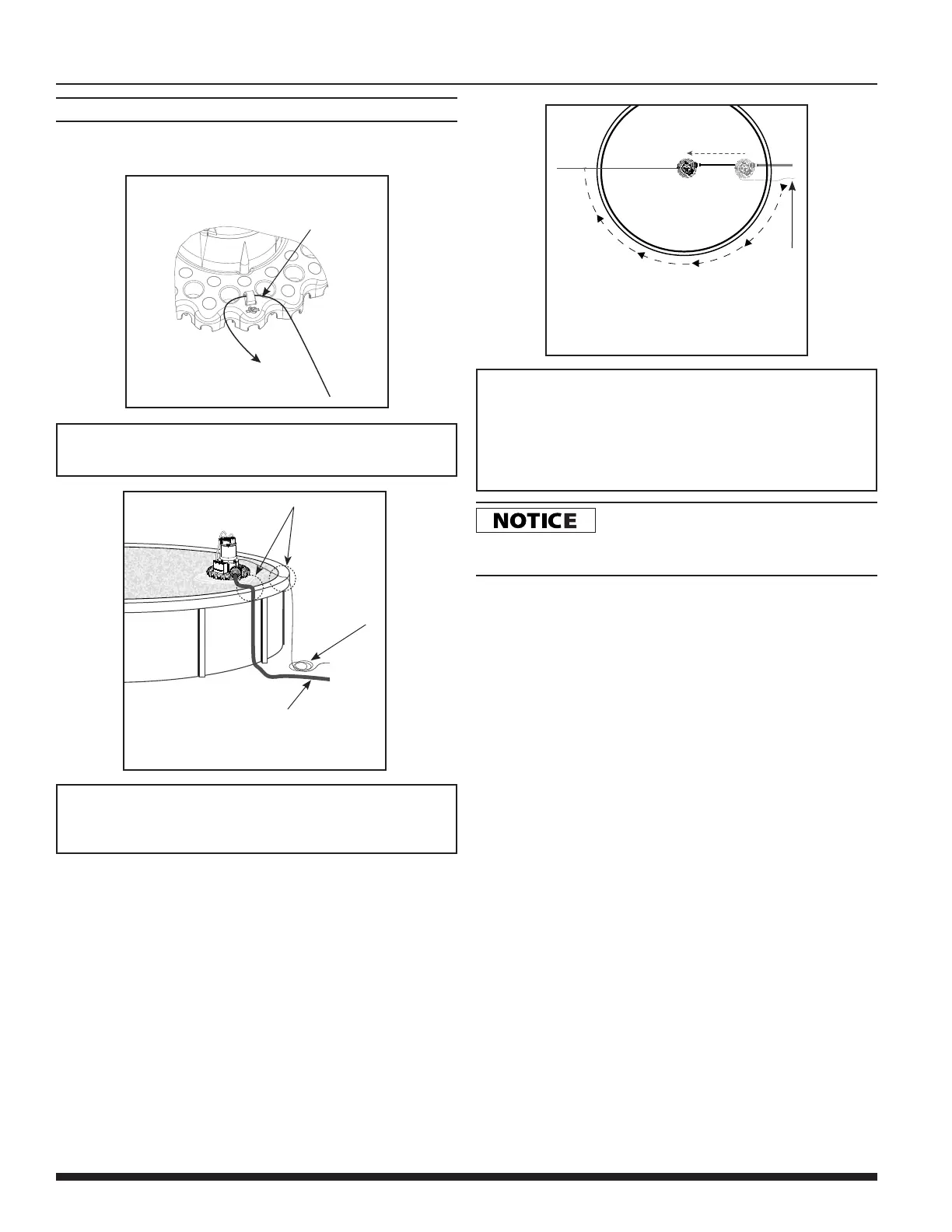

Figure D - Above Ground Installation
(top view)
D2
D1
25 FT.
(INCLUDED)
ROPE
D1. Holding the provided 25 ft. rope, walk around pool until you are
even with the pump on the opposite side.
D2. Pull the 25 ft. rope towards you until the pump is in the center
of the pool cover where water will collect. Secure rope for easy
removal (see Figure E) when weather permits. Plug in pump to
allow for automatic operation.
Always use debris strainer when placing pump
on a pool cover. The strainer helps protect the pool cover from damage,
filters debris, and increases pump stability.
ABOVE GROUND PUMP INSTALLATION
To aid in pump placement on pool cover, secure provided 25 ft. rope
to the pull to shore loop (Figure B).
Figure B - Pull to shore loop
FEED ROPE
THROUGH LOOP AND
SECURE WITH KNOT
Connect provided 25 ft. rope to pull to shore loop (see Figure B) and
discharge hose to the pump.
Figure C - Above Ground Installation
(side view)
DISCHARGE
HOSE
AVOID PINCHING
OR DAMAGING
POWER CORD
AND HOSE ON
POOL EDGE
25 FT.
POWER
CORD
(INCLUDED)
Place pump on pool cover near edge of pool (see Figure C). If
floatation device is used under the pool cover, place pump at the
lowest point on the pool cover where water will collect.
