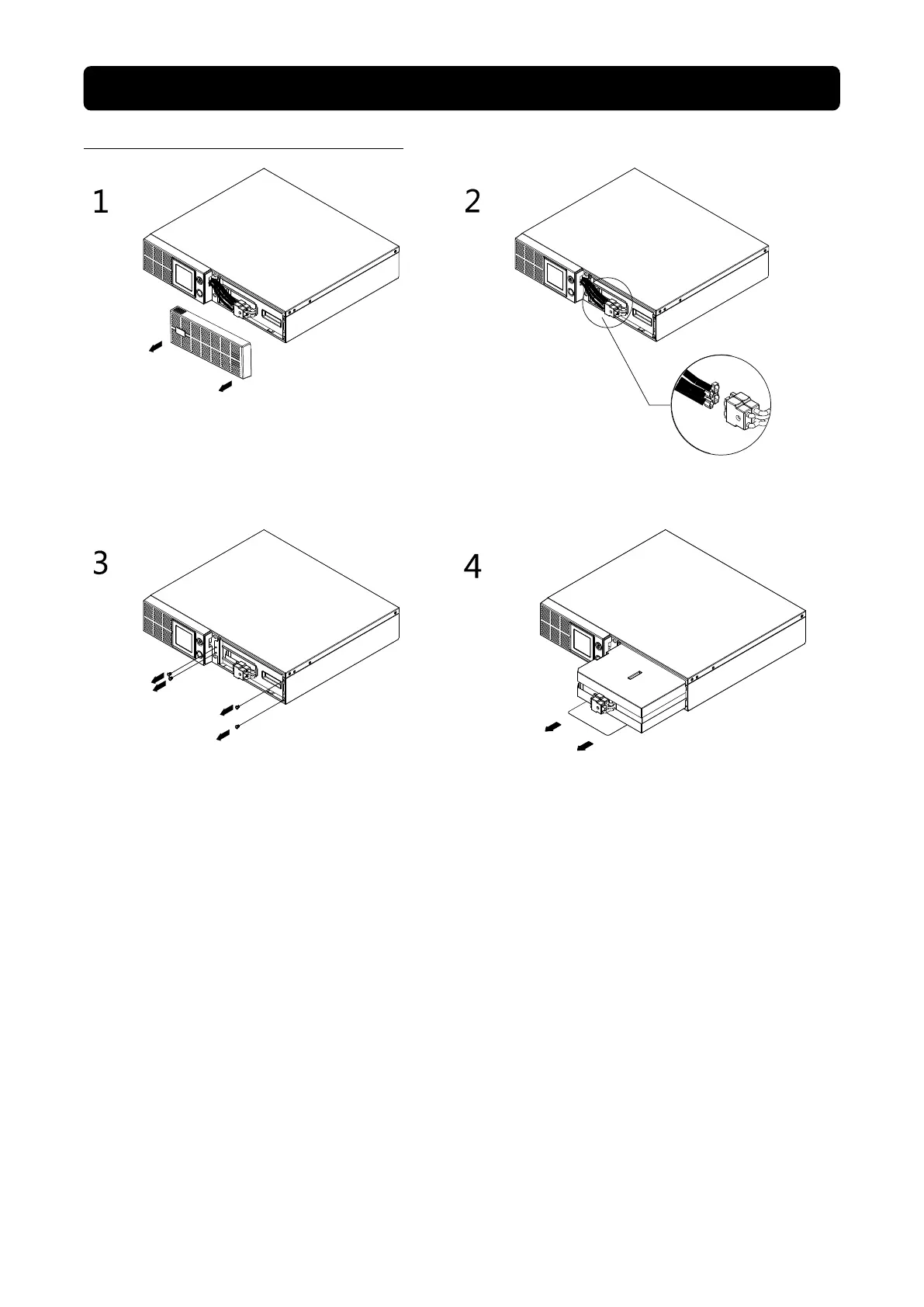

BATTERY REPLACMENT PROCEDURE
Remove the front panel on the right side.
Disconnect the black wire and red wire from the
battery.
Remove the four retaining screws.
Insert the new battery pack. Assemble the screws,
cable and front panel in the reverse sequence of
above steps.* Recharge the unit for 18 hours to
ensure the UPS performs expected runtime.
*BATTERY WIRING
Connect RED battery cable/connector to RED connector (positive to positive) on battery pack.
Connect BLACK battery cable/connector to BLACK connector (negative to negative) on battery pack.
REMINDER! The used batteries are considered hazardous waste and must be disposed through recycling.
Most retailers that sell lead-acid batteries collect used batteries for recycling, as required by the local
regulations.
