1. Input Voltage Meter: This meter measures the AC voltage
from the wall outlet. The INPUT voltage readout is used to
identify the input voltage information. This can be used as a
diagnostic tool to identify poor-quality input power. Units are
listed in V (Volts).
2. Output Voltage Meter: The Output Voltage screen
measures, in real time, the AC voltage that the UPS is
providing to your connected equipment via the UPS outlets.
Units are listed in V (Volts). In the event of a complete loss of
power, severe brownout, or over voltage, the UPS relies on its
internal battery to back up to supply a consistent 120V
output.
3. Estimated Runtime: The Estimated Runtime Screen displays how many minutes of runtime can be
expected of the UPS if it were to experience a power outage. When runtime becomes shorted, the
battery capacity will decrease. (The battery capacity bar indicator will be falling.) Note: The number
displayed may be less than actual runtimes for low loads.
4. Normal Icon: This icon illuminates when the UPS is working under normal conditions.
5. Battery Icon: When there is a severe brownout or blackout, this icon will appear followed by an
alarm, (two short beeps), indicating that the UPS is now working using its internal batteries. Once the
batteries are running out of power, (over a period of time), the alarm will beep rapidly every 1/2
second. If this happens and main power has not been restored, it is recommended that you save
your files and turn off your equipment manually as soon as possible.
6. Automatic Voltage Regulation (AVR) Icon: This icon will appear when the unit is automatically
regulating low or high AC input line voltage conditions, without resulting to the use of battery power.
This is a normal, automatic operation of your UPS, and no action is required on your part.
7. Silent Mode Icon: This icon appearing indicates that the buzzer will not be beeping while in battery
operating mode. During Silent mode, the unit’s alarm does not sound until the battery reaches low
capacity threshold.
8. Overload Icon: This icon will appear followed by an alarm, indicating that an overload condition has
been reached. To recover from the overload condition, start unplugging your equipment from the
UPS outlets until the icon disappears and the alarm stops.
9. Fault Icon: When activated indicates there is a problem with the UPS. Please refer to FAULT
WARNING DISPLAY AND ALARM section.
10. BATT. CAPACITY: BATT. CAPACITY is shown as a bar chart; each segment indicates approximately a
20% of battery capacity.
11. LOAD CAPACITY: Load CAPACITY is shown as a bar chart; each segment indicates approximately a
20% of load capacity.

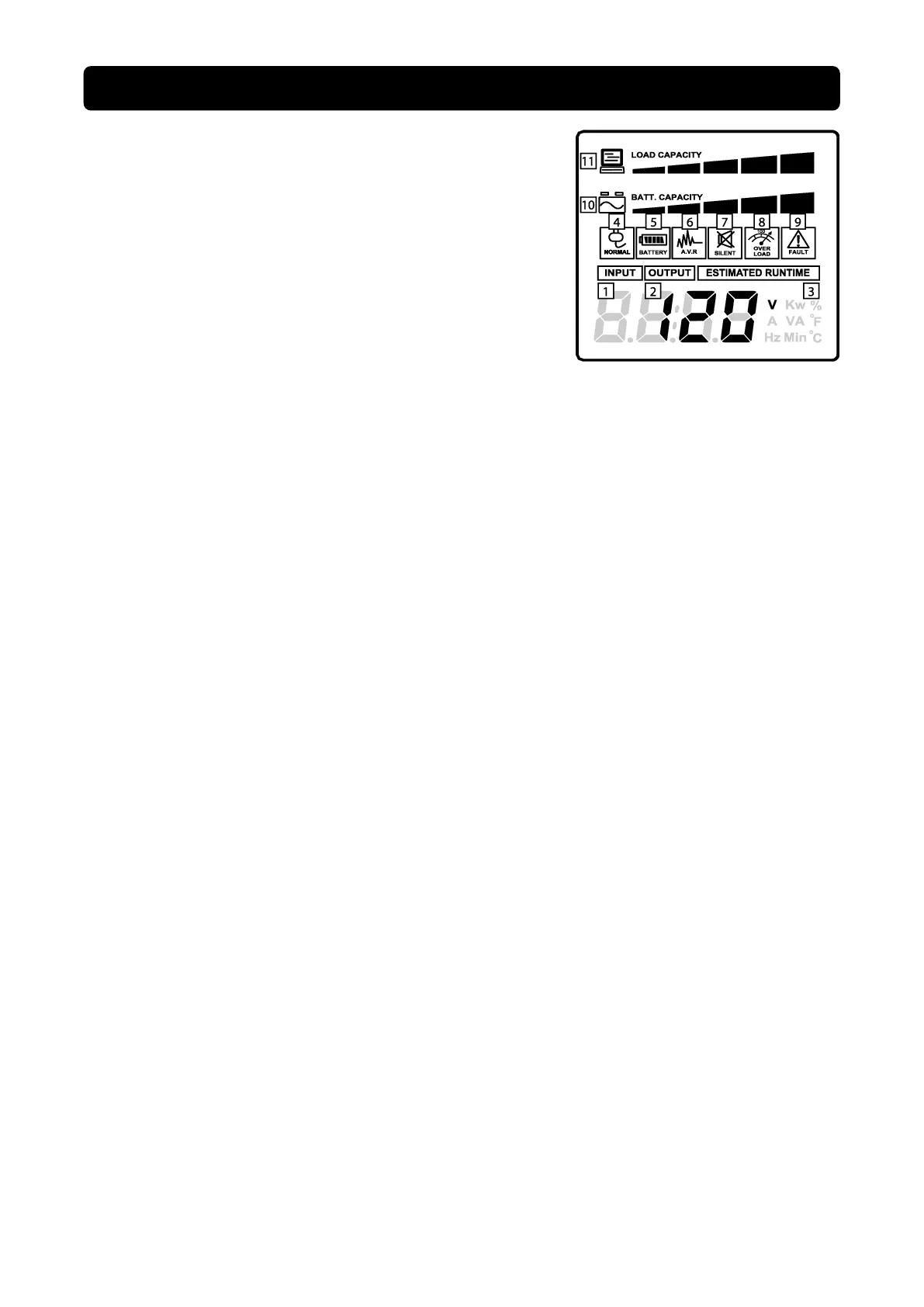

DEFINITION FOR ILLUMINATED LCD INDICATORS
