REPAIR
DBW 2010/2020/300 COOLANT HEATERS

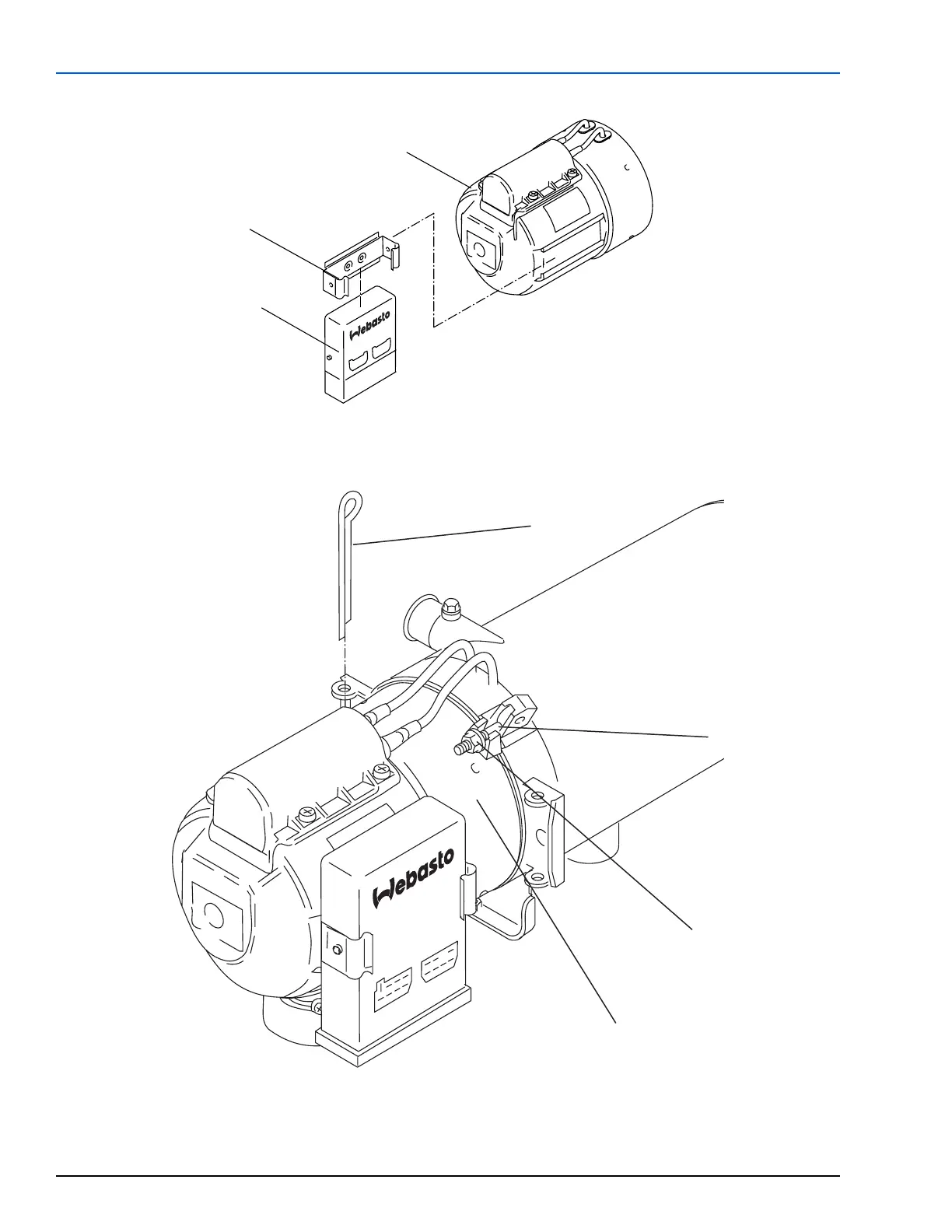

Figure 37:
Control Unit Removal / Installation
Figure 38:
Burner Head Removal / Installation
1
2
3
1
Control Unit 1553
2 Holding
Clip
3 Burner
head
1
2
3
4
NOTE:
Depending on the burner head direction of swing,
the cotter pin may be located to the opposite side.
1 Cotter
pin
2
Hinge Bolts (2)
3 Nut
(2)
4 Burner
head
CAUTION: Always use hinge bolts to lock burner head in place.
