Tuning of Telestart T60 Handheld Transmitter and Re-
ceiver
NOTE:
Each receiver can be allocated 2 handheld transmitters.
- Place batteries in battery compartment.
- Pull antenna out of transmitter approx. 5 cm.
-
Interrupt voltage supply for at least 10 seconds by re-
moving the 15A flat fuse (blue).
NOTE:
If the Telestart receiver is retrofitted, fuse F2, 1A (black)
has to be removed.

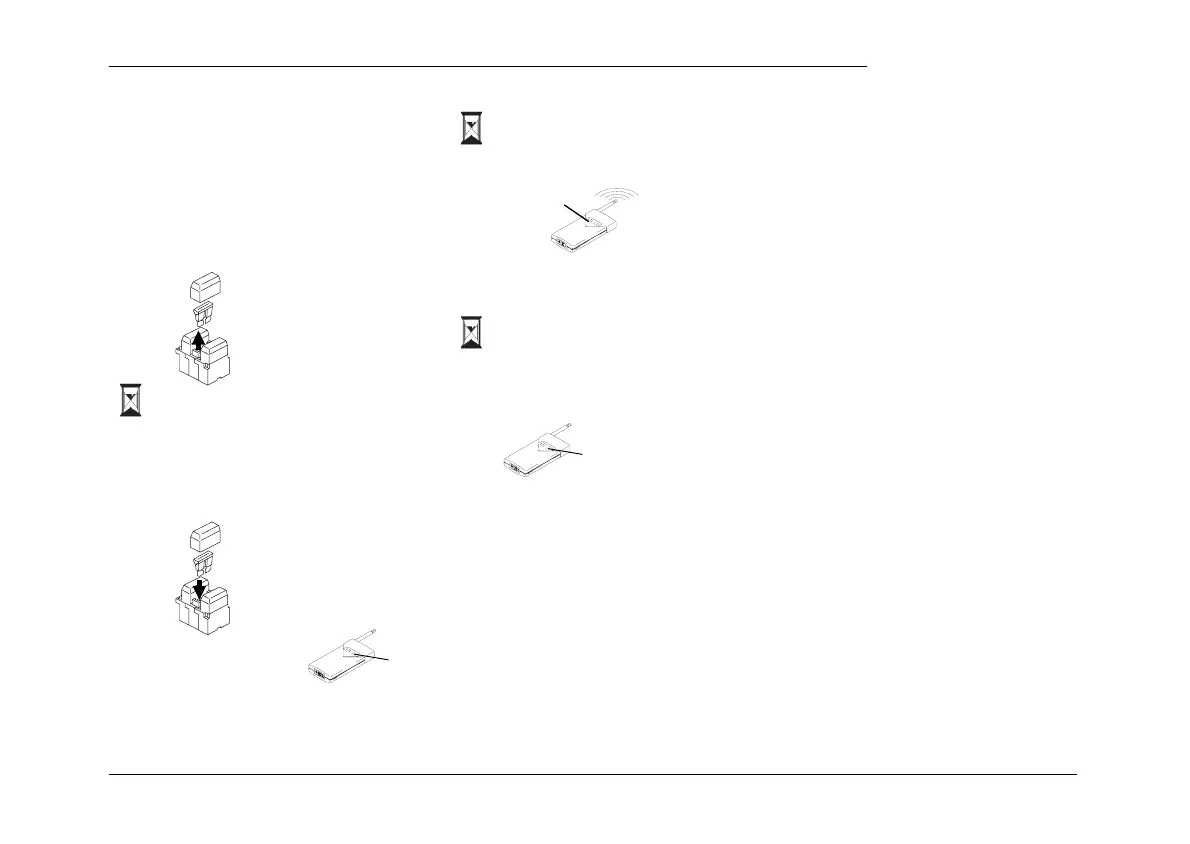

- Immediately after reinstalling the flat fuse press the ”Off”
button.
- Briefly press the ”Start” button.
Operation indicator on transmitter is flashing.
- Briefly press the ”Off” button.
Operation indicator on transmitter no longer flashes.
- Tuning is finished.
If any specified time period is exceeded or fallen short of,
tuning will not be successful and the procedure is to be re-
peated from the beginning.
Proceed in the same way for tuning and thus allocating a
second transmitter.
Retrofitting the T60 Telestart Receiver
NOTE:
The BBW 46 / DBW 46 water heaters can be retrofitted
with the T60 Telestart remote control.
The retrofit kit T60 consists of the following parts:
- Transmitter T60 with 2 alkaline LR1 1.5V batteries
- Standard antenna T6
- Receiver T6
- Mounting hardware (bag) comprising
2 sheet metal screws
1 receptacle housing
1 tab connector housing
3 push-on receptacles
The installation may only be performed by authorised We-
basto service centres.
CAUTION:
The receiver must be installed in the interior of the vehicle.
It is not permitted to extend the cable harness (approx. 70
cm long) provided on the receiver.
- Determine suitable installation location for receiver T6 in
the interior of the vehicle, in the vicinity of the digital
timer.
- Mount receiver using the sheet-metal screws (contained
in the kit).
Off
Start
Wait 10 seconds
25
A
15
A
1
A
Wait 5 seconds
Wait 15 seconds
Off
25
A
15
A
1
A
BBW 46 / DBW 46
9
