Intelligent Fast-Charging System
GSE O&M for DVS300 / 330 / 330 IP55 / 400 and MVS330/400
31504-03-0101 Webasto Charging Systems, Inc.31
Procedure for Removing, Cleaning and Re-installing the Filters
Back Filter

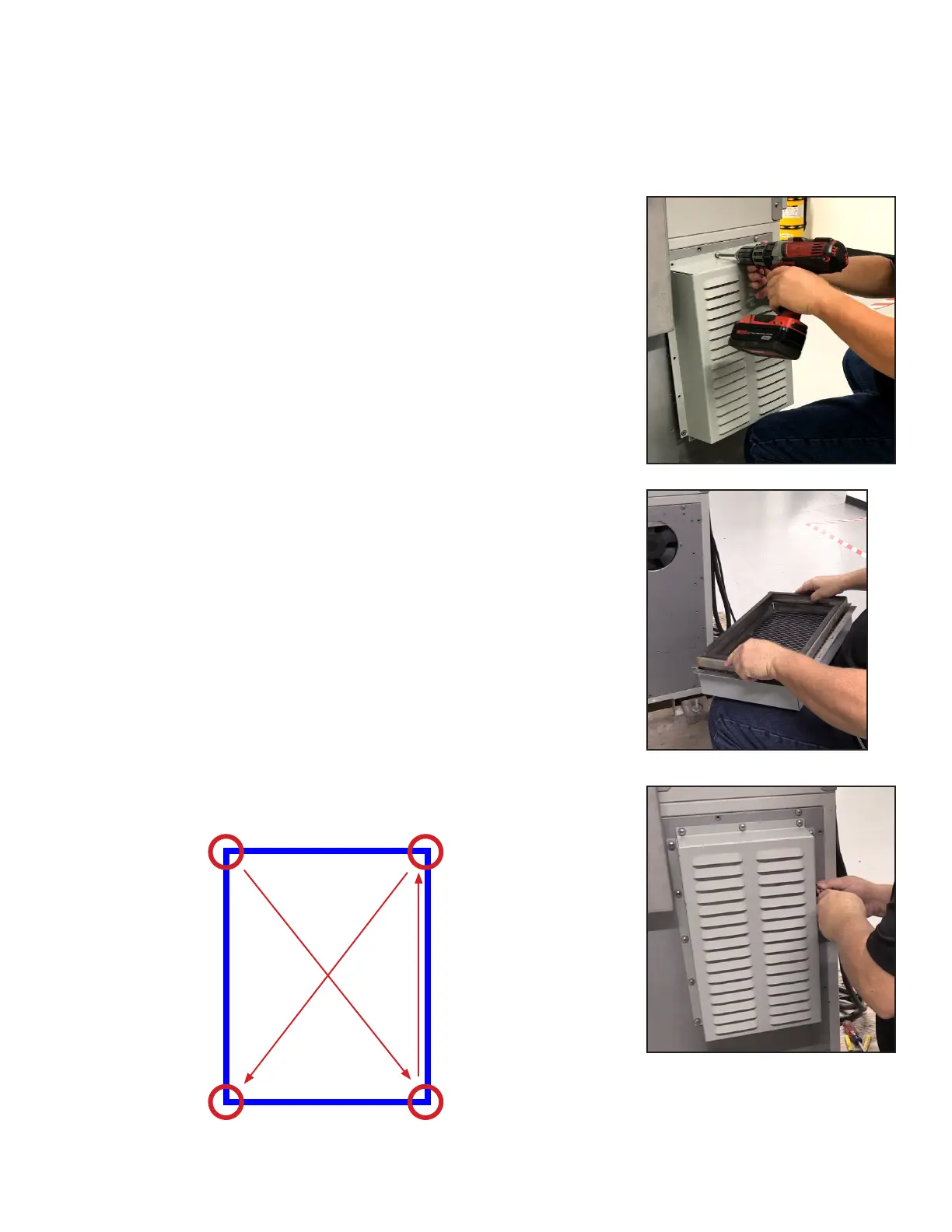

A. Remove the screws securing the cover to the back side of
the charger.
B. Remove the cover – a spacer bracket and the lter are
contained inside the cover.
C. After cleaning the lter as shown on page 30, re-install the lter
so the black side faces inward toward the charger, then
re-install the spacer bracket.
D. Re-install the cover onto the charger, and tighten the screws
using a criss-cross pattern as shown below.
