Front Filters
NOTE:
The procedure for removing and re-installing the front lter is identical to the back lter, but the front lter cover
does not include a spacer bracket.
A. Remove the screws securing the front cover.
B. Remove the cover – the lter is contained inside.
C. After cleaning the lter as shown on page 30, re-install the lter so the black side faces inward toward
the charger.
D. Re-install the cover onto the charger, and tighten the screws/bolts using a criss-cross pattern.

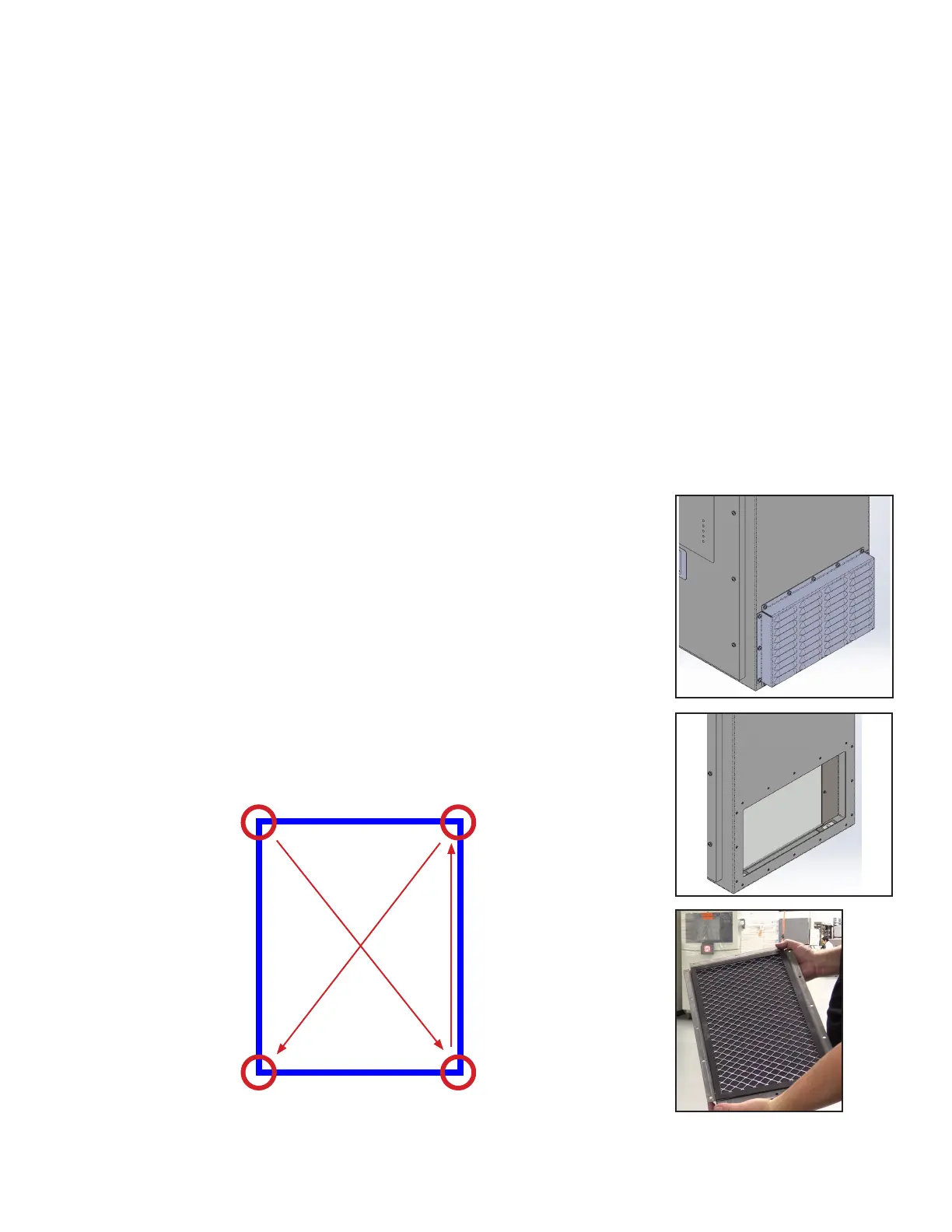

Side Filters
NOTE:
The procedure for removing and re-installing the side lter is identical to the
back lter, but the side lter cover does not include a spacer bracket.
A. Remove the screws securing the cover to the side of the charger.
B. Remove the cover – the lter is contained inside the cover.
C. After cleaning the lter as shown on page 30, re-install the lter so the
black side faces inward toward the charger.
D. Re-install the cover onto the charger, and tighten the screws using a
criss-cross pattern as shown below.




