Marine heating system Installation Instructions
10 © Webasto Global Comfort Solutions
®

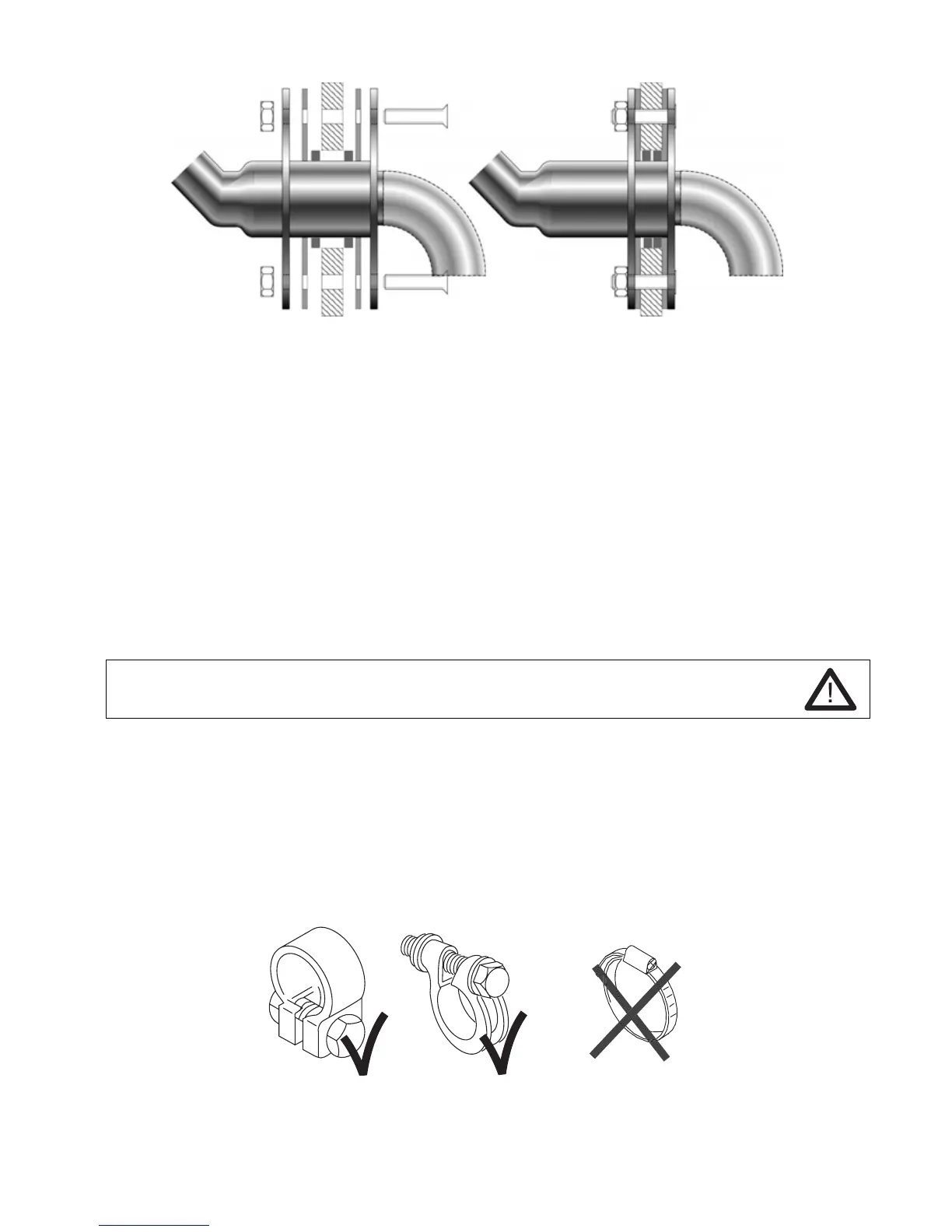

Always assemble wall ducts with seals.
5.3 Exhaust pipe
5.3.1 Exhaust pipe
Use 2-layer stainless steel flexible exhaust pipe.
• Keep the exhaust pipe as short as possible (maximum exhaust pipe length: see device-specific
installation instructions).
• Route the exhaust pipe as straight as possible (permissible number of bends, smallest
permissible curve radius: see device-specific installation instructions).
• No contact with temperature-sensitive objects such as electrical cables, water pipes, plastic
parts, sails or boat hull.
• Minimum wall distance: ≥ 20 mm.
• Minimum pipe diameters; see device-specific installation instructions.
5.3.2 Exhaust gas pipes in personnel accommodation
WARNING! Avoid installing the heater and exhaust pipes in personnel accommodation
if possible. (Danger of suffocation if routing is inappropriate)
• If unavoidable: use rigid stainless steel pipes with a wall thickness ≥ 1mm.
• Replace pipes with new ones after ≤ 10 years.
• Make the joints especially precise and gas tight.
• Use high temperature resistant sealing compound.
5.4 Exhaust pipe connections
• When routing the exhaust pipes, pay attention: all connections must be sealed.
• Use only Webasto
®
approved hose connections. No hose clamps.
•
Permitted hose clamps for exhaust pipe mounting
