Marine heating system Installation Instructions
© Webasto Global Comfort Solutions
®
27

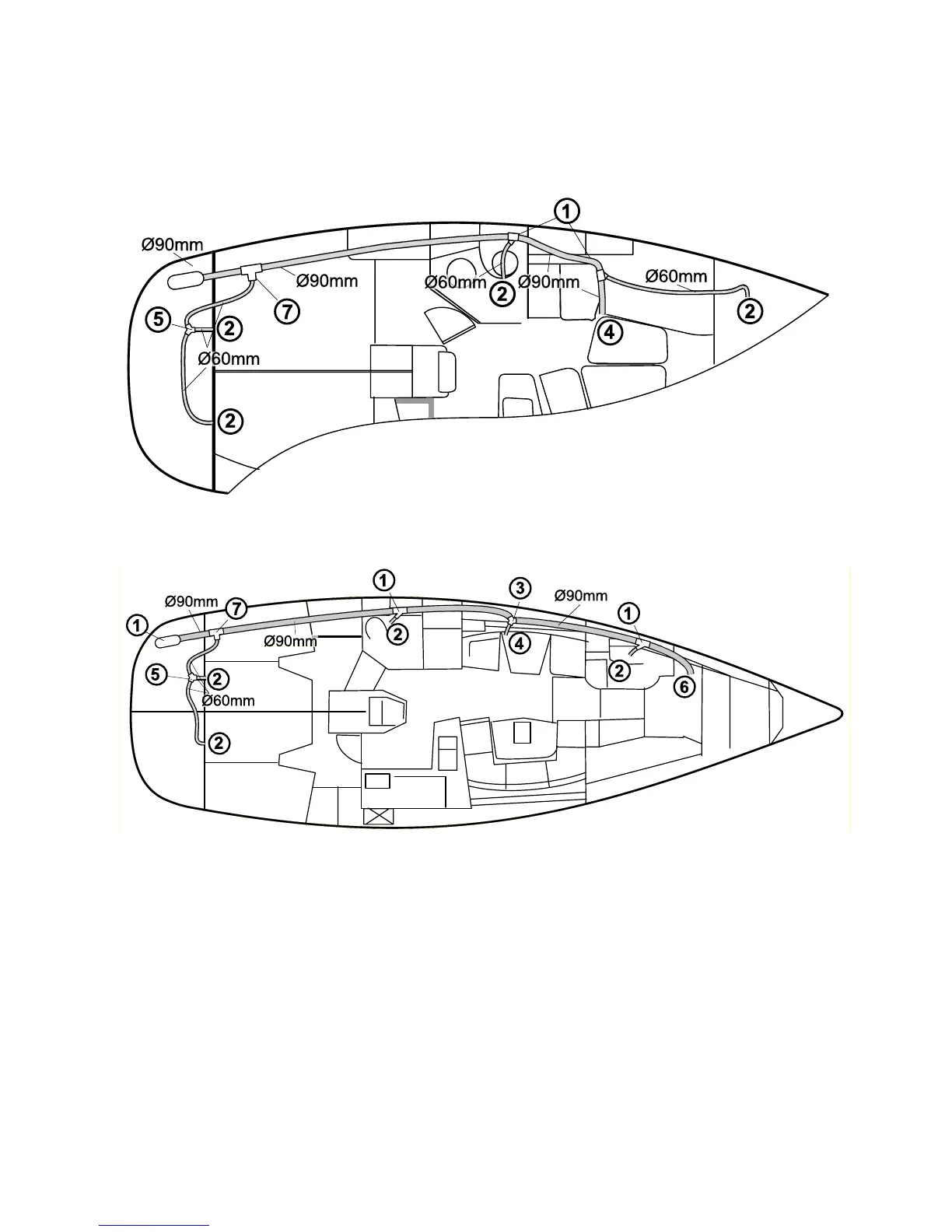

9.4.6 Installation examples
Air Top 3500
®
Marine in 37 foot sailing boat
Air Top 3500
®
Marine in 43 foot sailing boat
1 Branch 90/60/90; 2 Outlet Ø 60 mm shuttered; 3 Y-piece 90/90/90;
4 Outlet Ø90 open; 5 Y-piece 60/60/60; 6 Outlet Ø 90 mm shuttered; T-piece 90/60/90
