Thermo 90 9 Repair
905

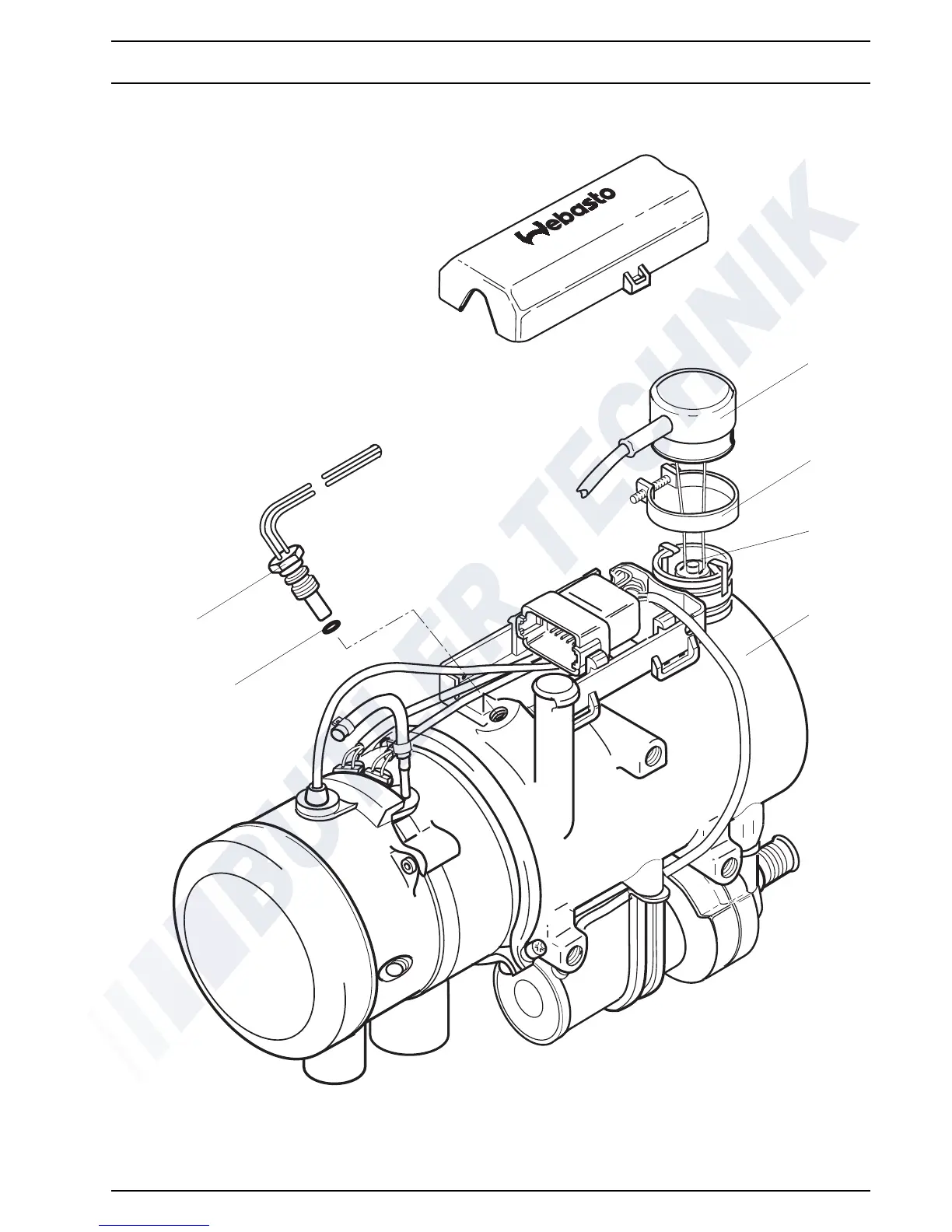

Fig. 903 Replacement of Temperature Limiter and Temperature Sensor
Thermo 90
6
5
1
2
3
4
1 Protective Cap
2 Clamp
3 Temperature Limiter
4 Heat Exchanger
5 O-Ring
6 Temperature Sensor
NOTE
One of the newer models Thermo 90 shown.
Older models have the cable of the temperature
limiter located on the side. Heater Thermo 90 S
may have the control unit located on the
combustion air fan not affecting the replacement
of the temperature limiter and temperature
sensor.
