If any of these items are missing, please contact us on 01793 333212 or
customerservice@webblawnmowers.co.uk.
DO NOT ATTEMPT ASSEMBLY OR OPERATION WITHOUT ANY
OF THESE LISTED PARTS!

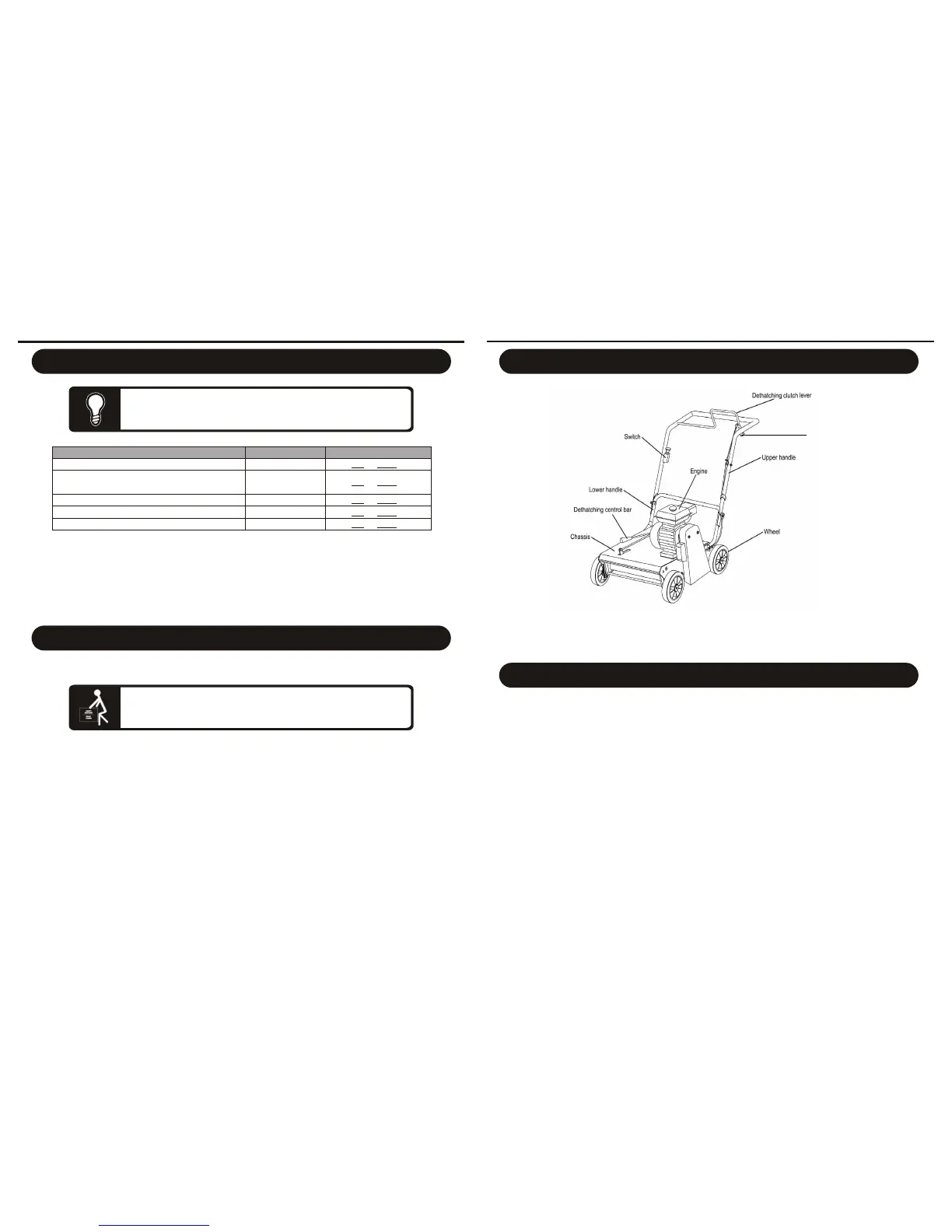

Switch-- Stop a running engine.
Dethatching control bar-- Converts the rake to dethatching state or not.
Dethatching clutch lever-- Engages the rotor with flails.
1. Cut away and remove box from scarifier.
The Scarifier is a heavy unit. DO NOT ATTEMPT TO MANUALLY LIFT FROM BOX ALONE!
2. Fold the handle into upright position.
3. Verify that all bolts are tightened to secure the handle to the unit.
4. Attach the clutch cable to handle.
5. Ensure that clutch cable is connected correctly by testing the clutch spring. It should stretch from
3/4"(1.9 cm) to 1"(2.54 cm) maximum and release easily.
6. Check the engine to ensure that it is filled with oil.
7. Read the Engine Manufacturer's Manual thoroughly for any further procedures to prepare engine
for use.
Before using the Webb PETROL SCARIFIER, please perform the following procedures for the personal
and property safety of the operator, jobsite and for optimal performance.
1. Before operating the scarifier ensure that it is structurally and mechanically safe by checking the
following:
a. Perform a detailed visual inspection on the machine with particular attention to the following:
i.
Are there any loose, worn or damaged parts? If so, DO NOT ATTEMPT TO OPERATE THE
MACHINE. Make note of required parts, and contact your local authorised dealer for replacement
parts and further assistance to service the unit PRIOR to any further use.
ii.
Is the machine, particularly the flails and rotor, clean and free of debris? Small rocks and other
foreign objects can jam machines and cause the unit to malfunction, leading to serious injury
to the operator and property damage on the jobsite.
iii.
Are there any cracks or damage on the engine? Consult with the engine manufacturer's manual
for guidelines and instructions on service. DO NOT ATTEMPT TO OPERATE THE MACHINE
until the engine is repaired to engine factory standards.
iv.
Are the flails engaged in the traveling position (i.e: raised from the working surface)? Ensure
that the rotor is securely raised away from the working surface until arrival at jobsite. Moving
the scarifier with the flail and rotor in the lowered working position can damage the unit and
jobsite.
b. Inspect the handle for the following:
i.
Is the handle properly and securely attached to the machine?
ii.
Is the handle set in the correct operating position?
c. Consult the "Recommended Maintenance Schedule" section of this manual and verify that:
i.
The wheels, axle and carriage are lubricated and in good condition.
