INSTRUCTION MANUAL

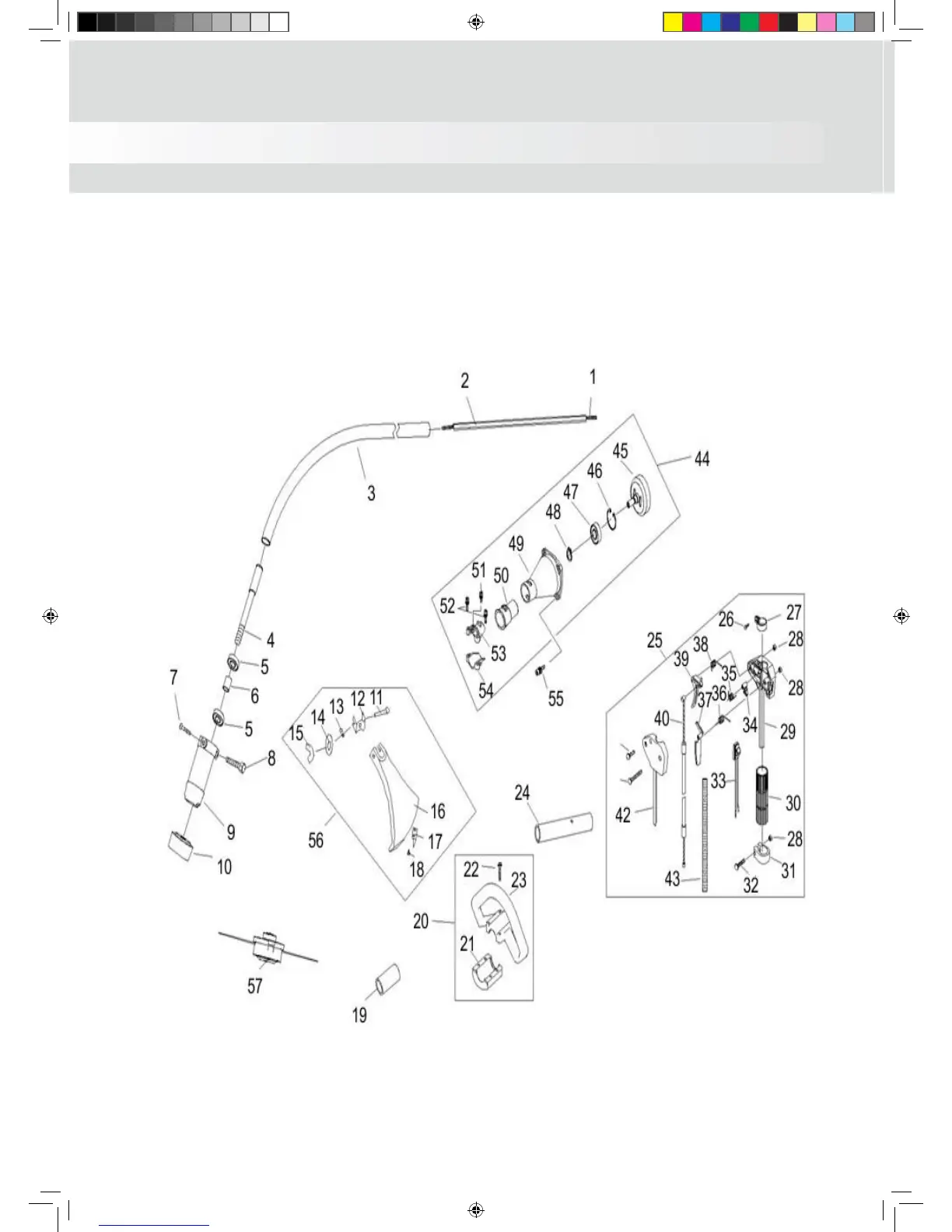

PARTS DIAGRAM - WELT26 Machine
PARTS LIST - WELT26 Machine
Item No
Part No.
Description
Qty
Item No
Part No.
Description
Qty
1
WE02050080021
Driveshaft
1
29
WE70030070164
Trigger Housing - Right
1
2
WE02050080008
Support Shaft
1
30
WE02080020053
Handle Cover
1
3
WE02010010118
Shaft
1
31
WE70030180090
Sleeve
1
4
WE02020160039
Connector
1
32
WE03010010022
Screw M5x20
2
5
WE03090010076
Bearing 608-2RS/P5
2
33
WE02050050078
Stop Switch
1
6
WE02040030002
Bush
1
34
WE70030070047
Wire
1
7
WE03020020053
ScrewM5x12
1
35
WE02020110039
Spring
1
8
WE03020030005
Screw M5x20
1
36
WE02020110041
Spring
1
9
WE70070100002
Joint
1
37
WE70030070172
Safety Lever
1
10
WE02020100025
Holder
1
38
WE02020110040
Spring
1
11
WE03010020021
Screw M6x60
1
39
WE70030070074
Throttle Lever
1
12
WE02020160212
Bracket
1
40
WE02050040045
Throttle Cable
1
13
WE03010110098
Screw M5x10
1
41
WE03010010046
Screw M5x30
1
14
WE03040010012
Washer 6
1
42
WE70030070216
Trigger Housing - Left
1
15
WE03030070005
Nut M6
1
43
WE61350020002
Tube
1
16
WE70030030086
Guard
1
44
WE70080060047
Clutch Case Assembly
1
17
WE02020070028
Knife
1
45
WE02020050036
Clutch
1
18
WE03020020027
Screw M5x16
2
46
WE03120020004
Stop Ring 35
1
19
WE70030160006
Washer
1
47
WE03090010070
Bearing 6202-2RS/P5
1
20
WE61270090005
Handle Assembly
1
48
WE03120010005
Stop Ring 15
1
21
WE70030160032
Handle Clamp
1
49
WE70070060032
Clutch Case
1
22
WE03010010048
Screw M5x35
4
50
WE02080020104
Rubber Cover
1
23
WE70030160079
Handle
1
51
WE03010010056
Screw M5x14
1
24
WE70030180120
Bush
1
52
WE03010010058
Screw M5x25
2
25
WE61270040018
Throttle Trigger Assembly
1
53
WE70070080038
Upper Plate
1
26
WE03010010029
Screw M5x14
1
54
WE70070080039
Lower Plate
1
27
WE02020160213
Clamp
1
55
WE03010010060
Screw M6x20
4
28
WE03030080002
Nut M5
3
56
WE61270070023
Safety Cover
1
57
WE02050220016
Nylon Cutter Head
1
