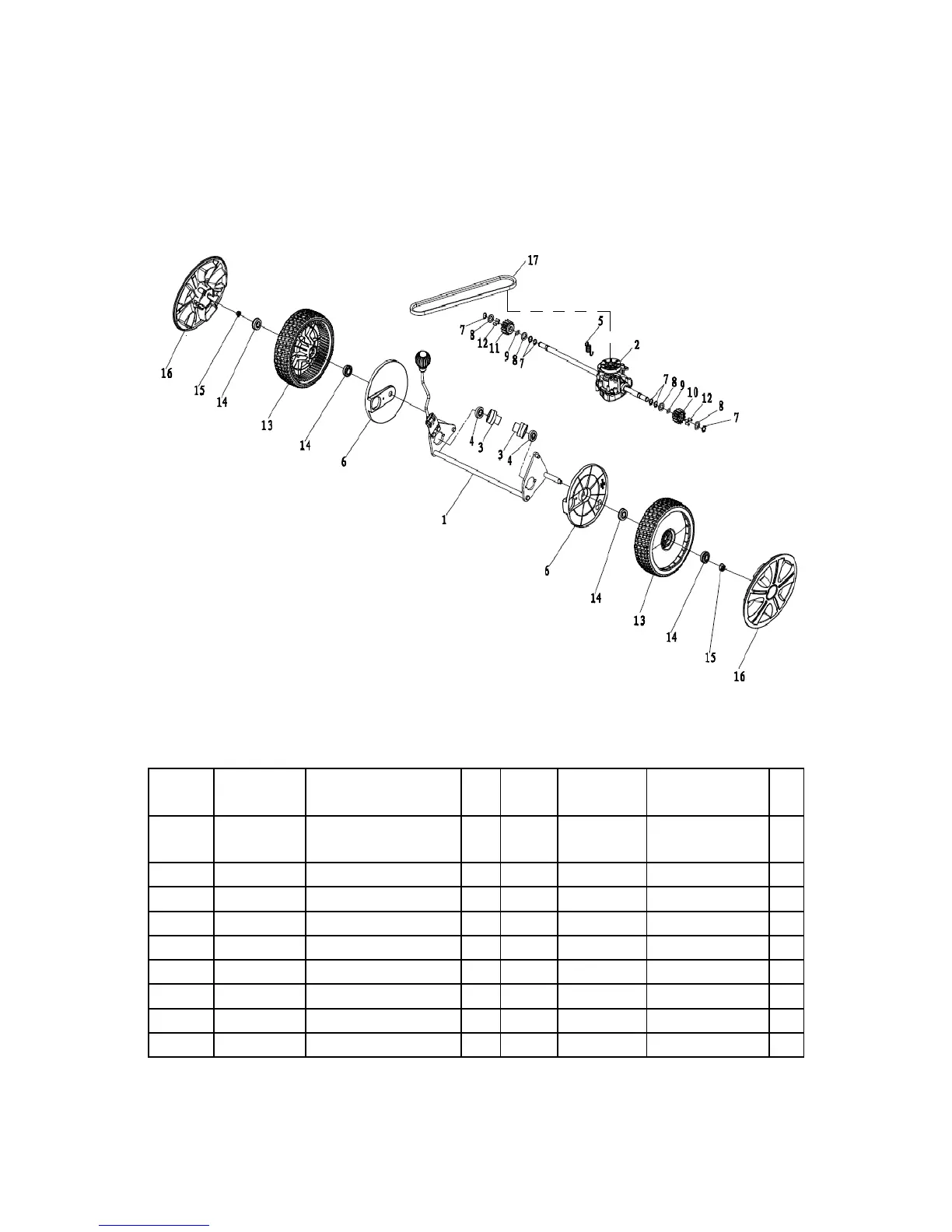

PARTS DIAGRAM AND LIST – REAR AXLE ASSEMBLY
Item No Part Number Description Qty Item No
Part
Number
Description Qty
1 WE113-54
Rear Axle with Height
Adjustment Handle
1 10 WE114-14 Drive Cog L 1
2 WE114-6 Gearbox Assembly 1 11 WE114-15 Drive Cog R 1
3 WE114-7 Bush 2 12 WE114-16 Drive Pin 6
4 WE114-8 Bearing 6001RS 2 13 WE113-56 Rear Wheel 2
5 WE114-9 Self-Propelled Spring 1 14 WE113-51 Wheel Bearing 4
6 WE114-10 Inner Wheel Cover 2 15 WE113-52 Lock Nut M8 2
7 WE114-11 Spring Washer 12 6 16 WE113-57 Rear Wheel Trim 2
8 WE114-12 Ratchet Washer 4 17 WE114-17 Drive V Belt 1
9 WE114-13 "O" ring 11.2x2.65 2
