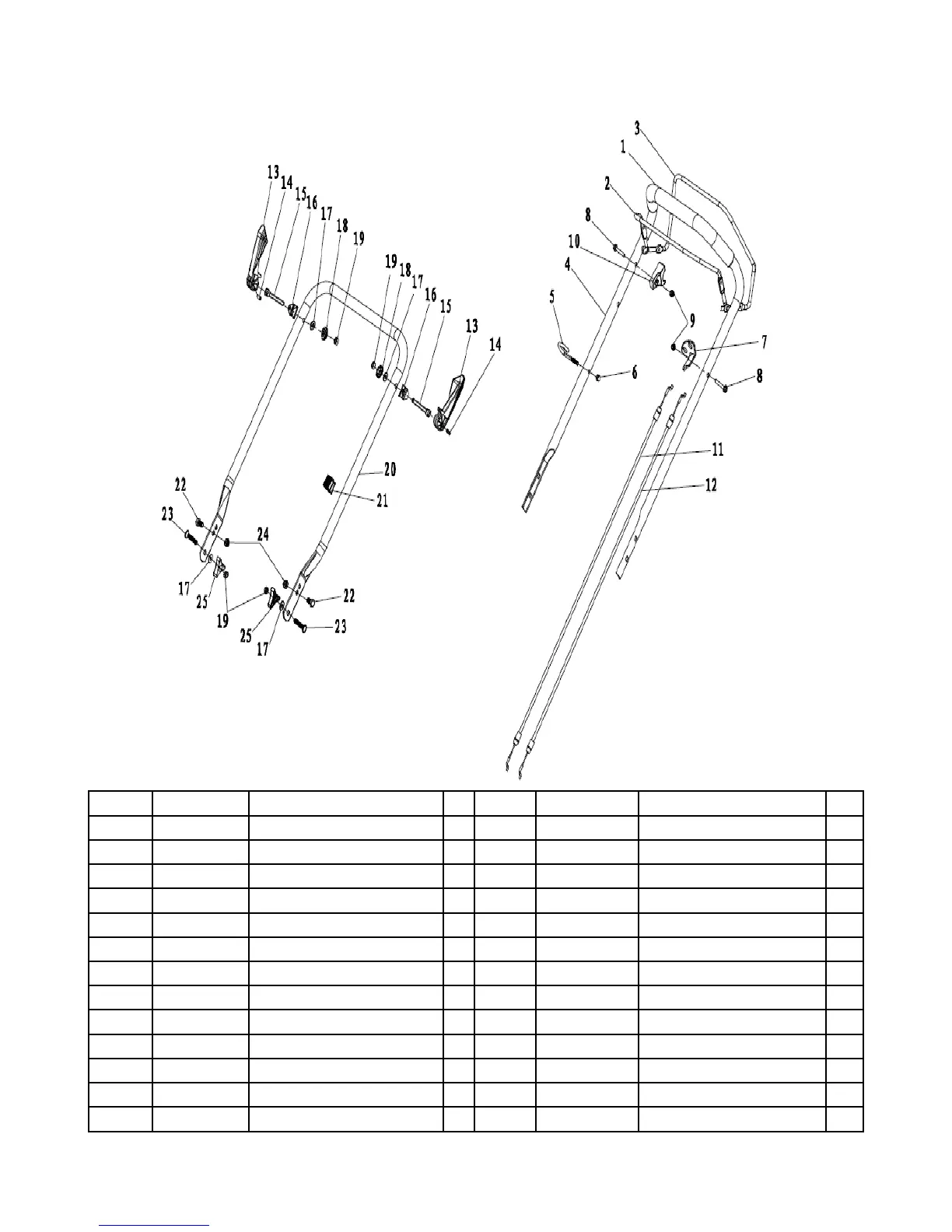

PARTS DIAGRAM AND LIST – HANDLE ASSEMBLY
Item No Part Number Description Qty Item No Part Number Description Qty
1 WE114-1 Foam Handle Cover 1 14 WE113-14 Pin 6x20 2
2 WE114-2 Brake Lever 1 15 WE113-15 Bolt for Quick Lock Handle 2
3 WE114-3 Self-Propelled Lever 1 16 WE113-16 Lock for Quick Lock Handle 2
4 WE113-4 Top Handle 1 17 WE113-17 Flat Washer 8.4x16x1.6 4
5 WE113-5 Pull Rope Guide 1 18 WE113-18 Lock Nut 2
6 WE113-6 Cap NutM6/8.8 1 19 WE113-19 Hex Nut M8 4
7 WE113-7 Brake Cable Assembly Plate 1 20 WE113-20 Lower Handle 1
8 WE113-8 Bolt M6x30 2 21 WE113-21 Cable Fastener 1
9 WE113-9 Lock Nut M6/8.8 2 22 WE113-22 Hex Bolt M8x16 2
10 WE113-10 Plastic Stopper 1 23 WE113-23 Square Neck Bolt M8x30 2
11 WE113-11 Brake Cable 1 24 WE113-12 Lock Nut M8/8.8 2
12 WE114-4 Self-Propelled Cable 1 25 WE113-3 Triangle knob 2
13 WE113-13 Quick Lock Handle 2
