Weber PERFORMER PREMIUM - Weber Performer Premium Parts Identification; Exploded View Diagram

Performer
®
_Premium_w/GBS™_XV_AU_053014
Performer
®
_Gold_w/GBS™_XV_AU_053014
1
2
3
4
5
6
7
6
8
9
10
11
12
14
13
15
16
17
18
21
22
23
24
26
25
27
28
29
30
31
34
32
33
35
19
20

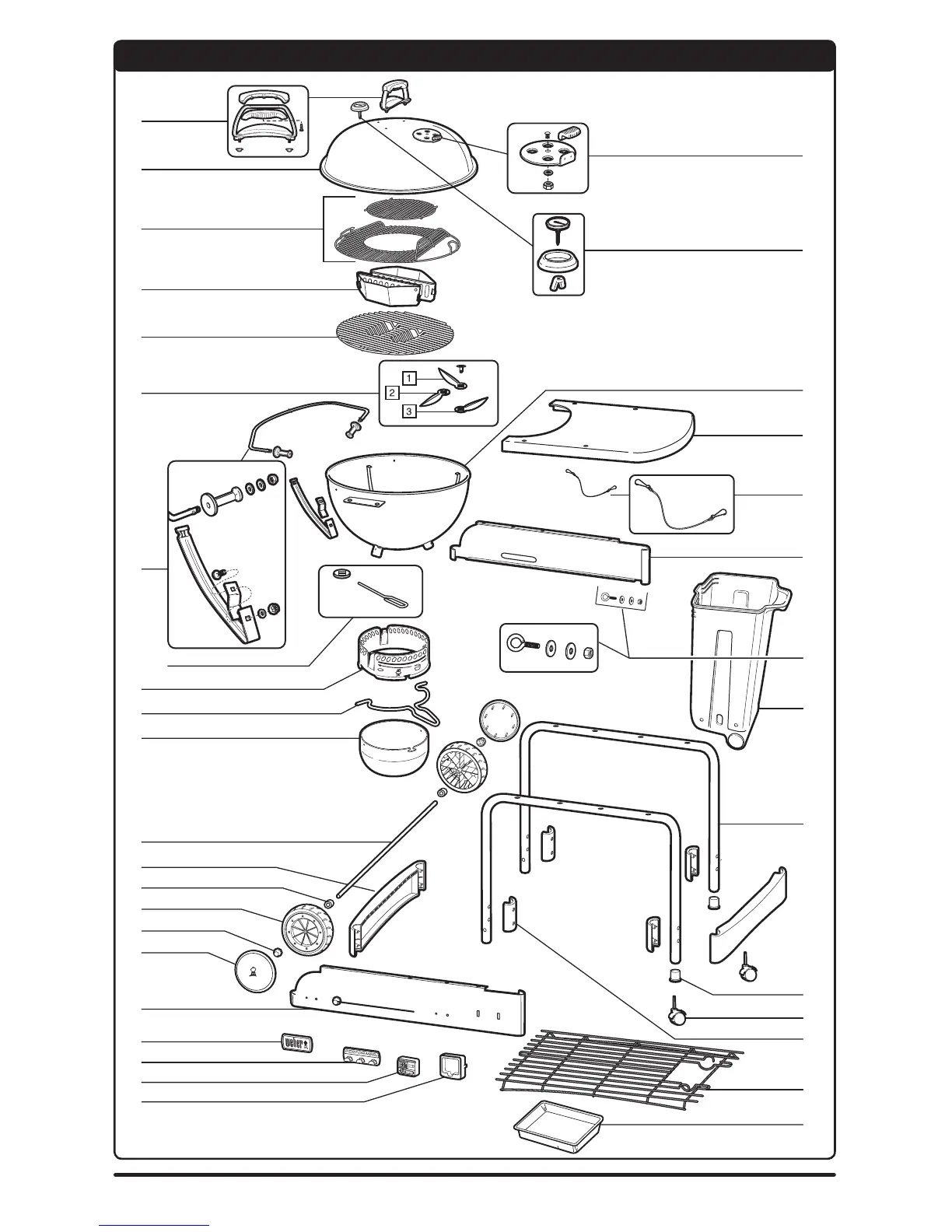

1: Lid Handle Assembly
2: Lid
3: GBS™ Cooking Grate
4: Char-Baskets™
5: Charcoal Grate
6: One Touch™ Cleaning System
7: Tuck-Away™ Lid Holder & Lower Support Assembly
8: Ash Catcher Ring
9: Ash Catcher Handle
10: High Capacity Ash Catcher
11: Axle
12: Leg Frame Bracket
13: Wheel Spacer
13: Wheel
14: Hub Cap
15: Wheel Cover
16: Front Panel
17: Logo Plate
18: Tool Holders
19: Digital Cook Timer
20: Timer Mount
21: Lid Damper Assembly
22: Themometer Assembly
23: Bowl
24: Table
25: CharBin™ Retention Chain
26: Rear Panel
27: CharBin™ Hardware
28: CharBin™
29: Leg Frame
30: Caster Insert
31: Locking Caster
32: Leg Frame Bracket Clamp
33: Bottom Rack
34: Disposable Drip Pan
Might have wheel spacer
2
EXPLODED VIEW
