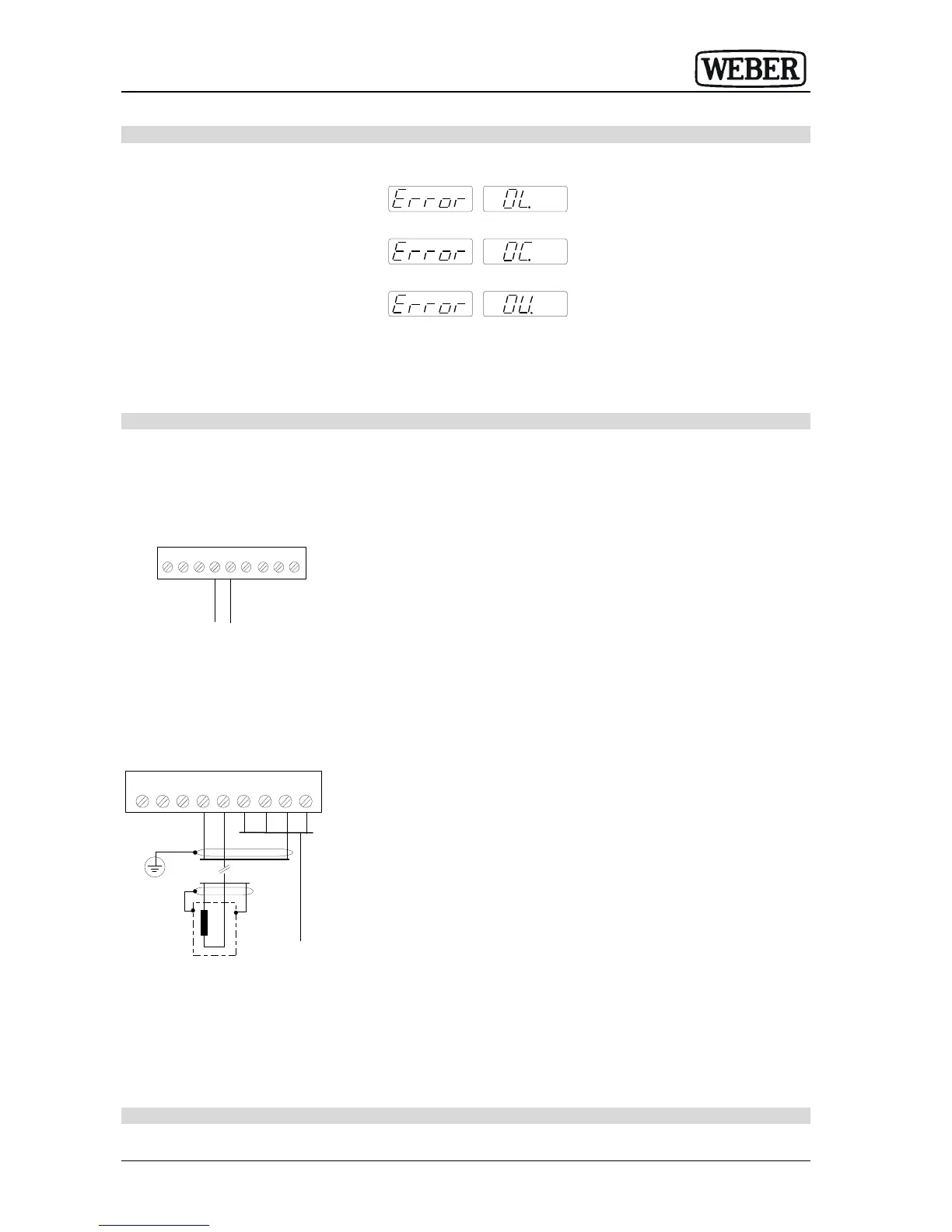

11.0 Error Messages
Error messages are displayed in short form with “ERROR“, blinking alternatively.
Overload limit
Short circuit shutdown
Main power over-voltage or
feedback from magnet
By depressing the “P” key or by an Off and On switching of the main power switch, the device will
be reset.
12.0 Internal Connection
Via the release input, the device can be turned on or off with an external signal voltage of 24 V, DC.
Release:
Supply power and conveyor:
In order to meet the EMC Guidelines, a shielded output cable must be used. The shielding must be con-
nected to ground at both ends of the cable.
5 6 7
1 2 3 4 8 9
GND +24V
25 26 27
21 22 23 24 2829
L
A2
A1 N
PE
PE
L,N,PE / 230V, 50/60Hz
