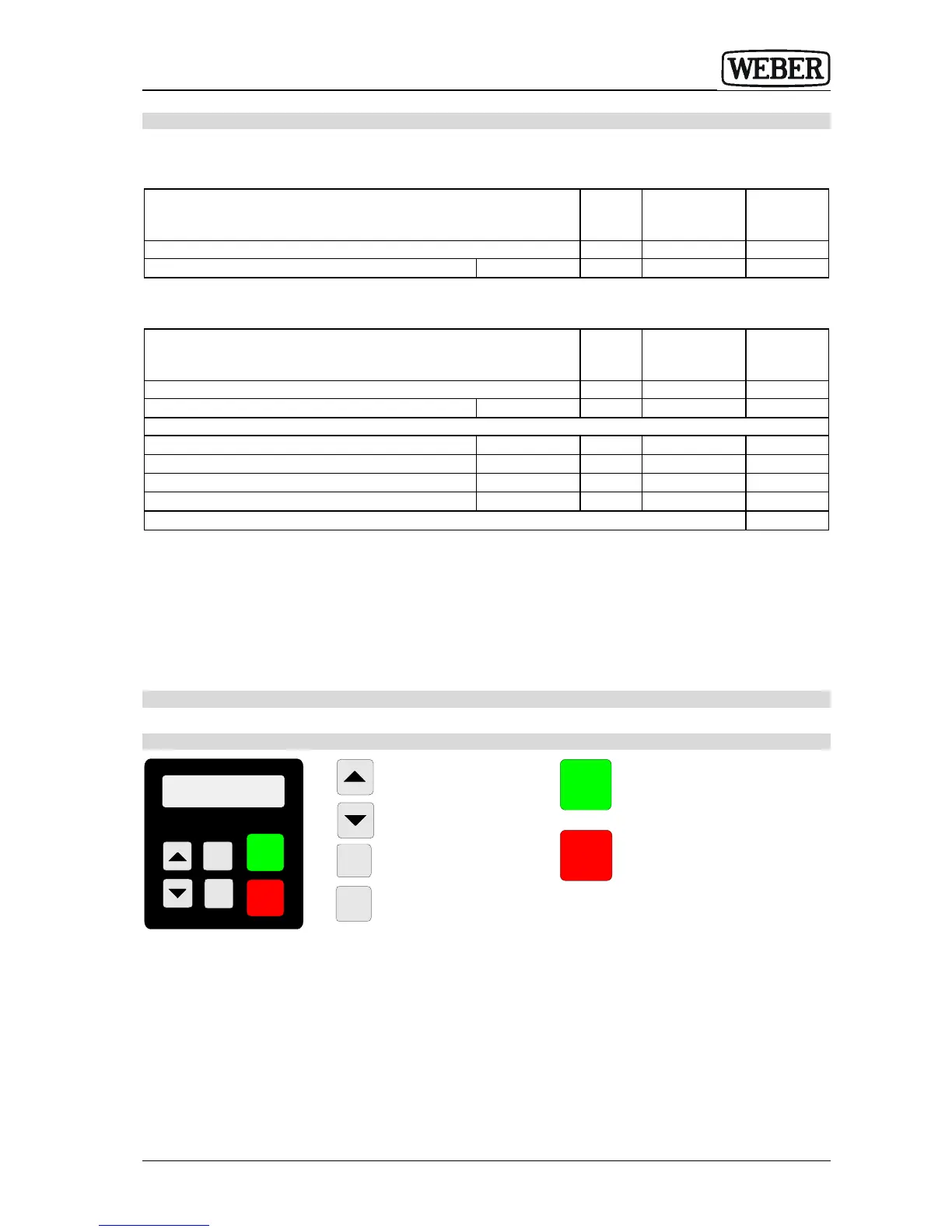

7.0 Adjustment Possibilities
After alignment of the controller associated with the oscillating conveyor, the necessary adjust-
ments by the user are limited to the setup of the conveyor capacity.
Parameter: Code
Basic
Factory
Adjustment:
Access
code:
Oscillating conveyor
• Oscillation amplitude (conveyor capacity)
0...100 % A. 50 % 000, 406
To adapt the oscillating conveyor, the following adjustments are possible
Parameter: Code
Basic
Factory
Adjustment:
Access
code:
Oscillating conveyor
• Oscillating amplitude (conveyor capacity)
0...100 % A. 50 % 000, 406
Service
• Oscillation frequency
30...140 Hz F. 100 Hz 406
• Soft start ramp time
0...10 sec. /. 0.1 sec. 406
• Soft stop ramp time
0...10 sec. \. 0.1 sec. 406
• Enable function invert
0 / 1 -En. 0 406
• Display software version number
001
8.0 Operating Panel
8.1 Adjustment Procedure
When depressing the arrow keys, a quick depression of the key will increase or decrease the display by
one place (one or ten), respectively. If the key remains depressed, after the next full decade the display
changes by decades.
In order to prevent accidental or unauthorized adjustment, the adjustment parameters in operating menus
are secured via operator codes. To access the operating menus, an operator code must be entered. Dif-
ferent operator codes (functional depth) are available.
Modified adjustment values are only permanently stored either when the programming mode is
exited or after 60 seconds have elapsed with no key depression.
I
0
P
F
Value increase
Programming mode
or accept
P
F
back
Value decrease
I
0
Start
Stop
