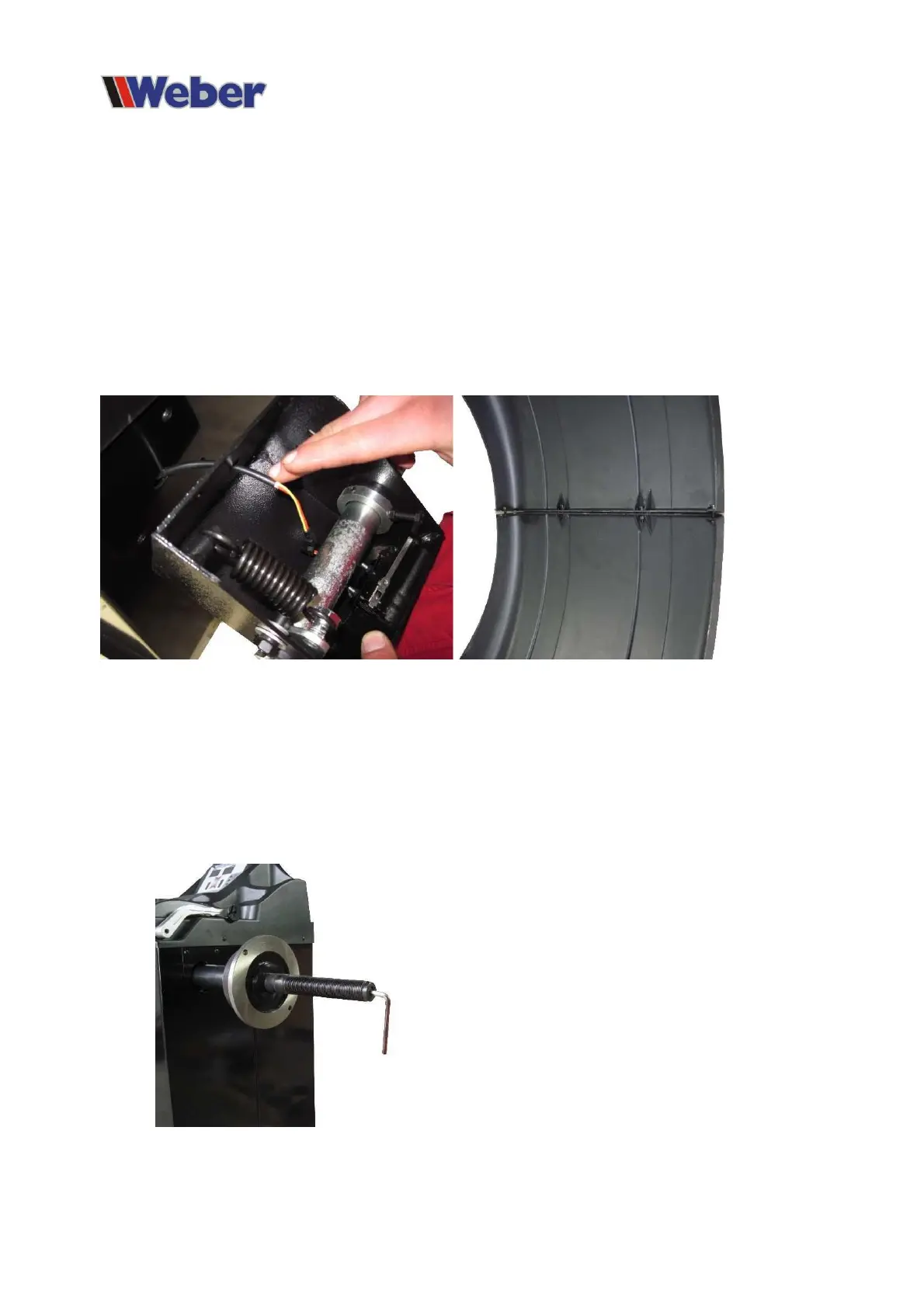

Mounting the wheel guard
1.
Pull the switch cable through the connection flange for the wheel guard and connect it
to the switch (Fig. 1). Then screw the connecting flange to the machine using the 3
screws provided.
2.
Screw the wheel guard together in the middle (Fig. 2) and click it on the corresponding
frame. Screw the wheel cover to the frame using the 2 screws provided.
3.
Place the wheel cover with frame on the connecting flange and fasten with the supplied
screw.
Fig.1 Fig. 2
Mounting the clamping shaft
1. Slide the clamping shaft into the appropriate opening and screw it to the machine with
the provided long Allen key (Fig. 3).
Fig. 3
